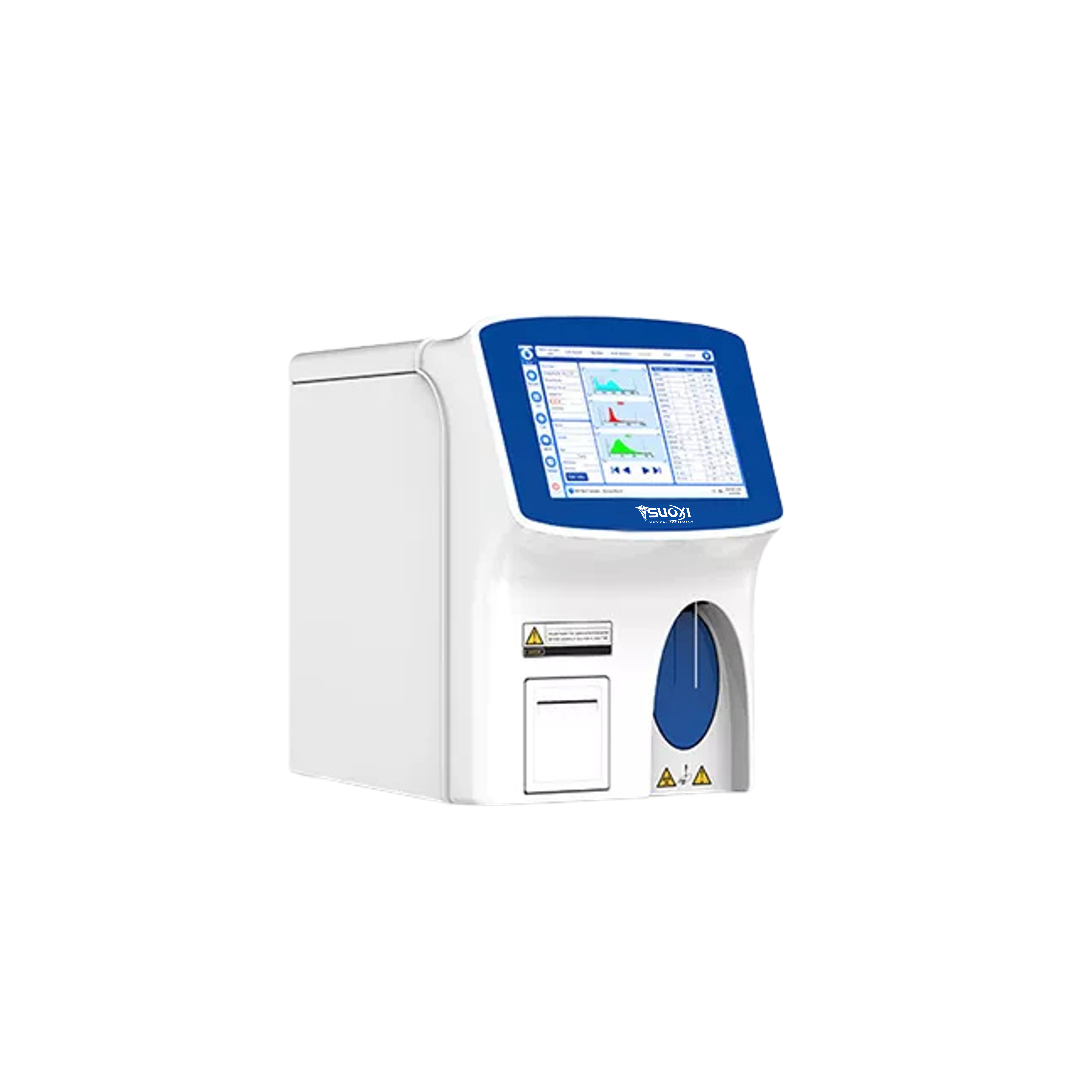

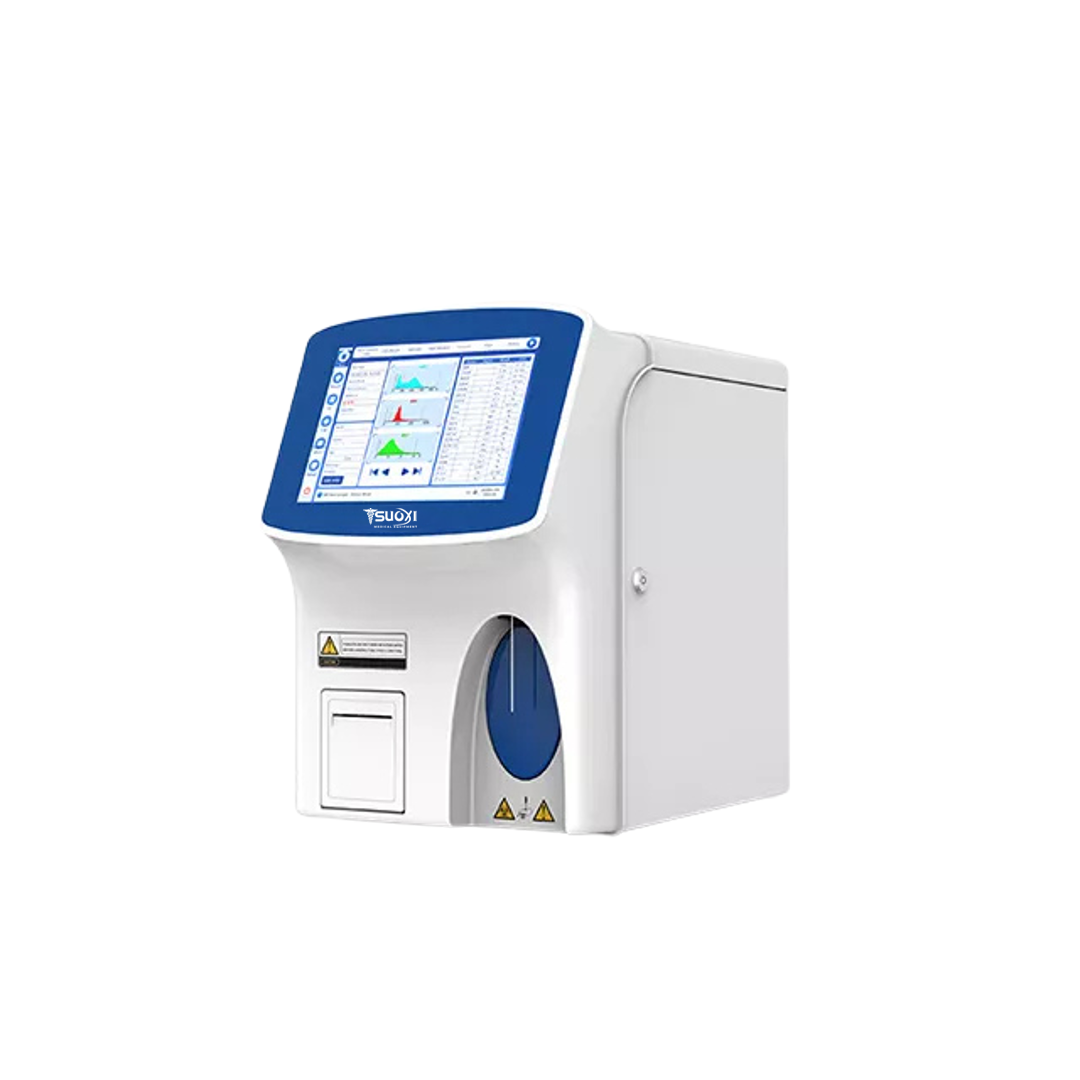

Model No: SX25-3PB1
Features:
9.7-inch color touch LCD screen, easy to operate, displays all parameters and histograms on the same screen.
Fewer samples are required for testing: venous blood: 10μl, capillary: 10μl, prediluted: 20μl.
60 samples/hour.
21 parameters + 3 histograms.
It can be turned on continuously for 24 hours.
Automatically cleans the sampler, counting pool, and pipeline after starting up.
Built-in thermal printer, external printer can be connected.
Electrical impedance method, cyanide-free detection of HGB.
Fully intelligent blockage removal and alarm function.
Both automatic calibration and manual calibration are available.
Counting Mode: Venous, capillary, prediluted.
Supports LIS system.
Technical Parameters
| Specification | Details |
|---|---|
| Model | SX25-3PB1 |
| Throughput | 60 samples/hour |
| Principle | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB |
| Channels | 2 |
| Parameters | 21 parameters (including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) |
| Histograms | 3 histograms (including WBC, RBC, PLT histograms) |
| Sample Volume | Venous blood: 10μl, Capillary blood: 10μl, Prediluted: 20μl |
| Calibration | Manual, auto calibration |
| Counting Modes | Venous, capillary, prediluted |
| Printing Model | Auto print, manual print |
| LIS | Support Bi-directional LIS |
| Language | Chinese, English, Spanish, French, Russian, Ukrainian |
| Reagent | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml |
| Data Input | 9.7-inch touch screen, mouse, keyboard (optional) |
| Output | Internal printer, support external printer |
| Printer Paper | 57*30mm |
| Interface | 4 USB ports, network port, RS232 serial port |
| Storage | 100,000 results with histogram |
| Unclog | High voltage burn, reverse high-pressure flush |
| Work Temperature | 10~40°C |
| Power Supply | 100~240AC, 50/60Hz, 150VA |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 86.0kPa~106.0kPa |
| Carry-over Rate | Parameter: WBC, RBC, HGB, PLT CV: ≤1.5%, ≤1%, ≤1%, ≤3% |
| Background | Parameter: WBC, RBC, HGB, HCT, PLT Background: ≤0.510^9/L, ≤0.0510^12/L, ≤2g/L, ≤0.5%, ≤10*10^9/L |
| Linearity | Parameter: Measurement Range WBC: (1 |
| Precision | WBC: ≤4.0%, (3.5 |
| External Size (WDH) | 295467418mm |
| Packed Size (WDH) | Instrument: 404564616mm; Reagent: 340340340mm, 200150100mm |
| Net Weight | 19kg |
| Gross Weight | Instrument: 31kg; Reagent: 13kg, 1kg |
