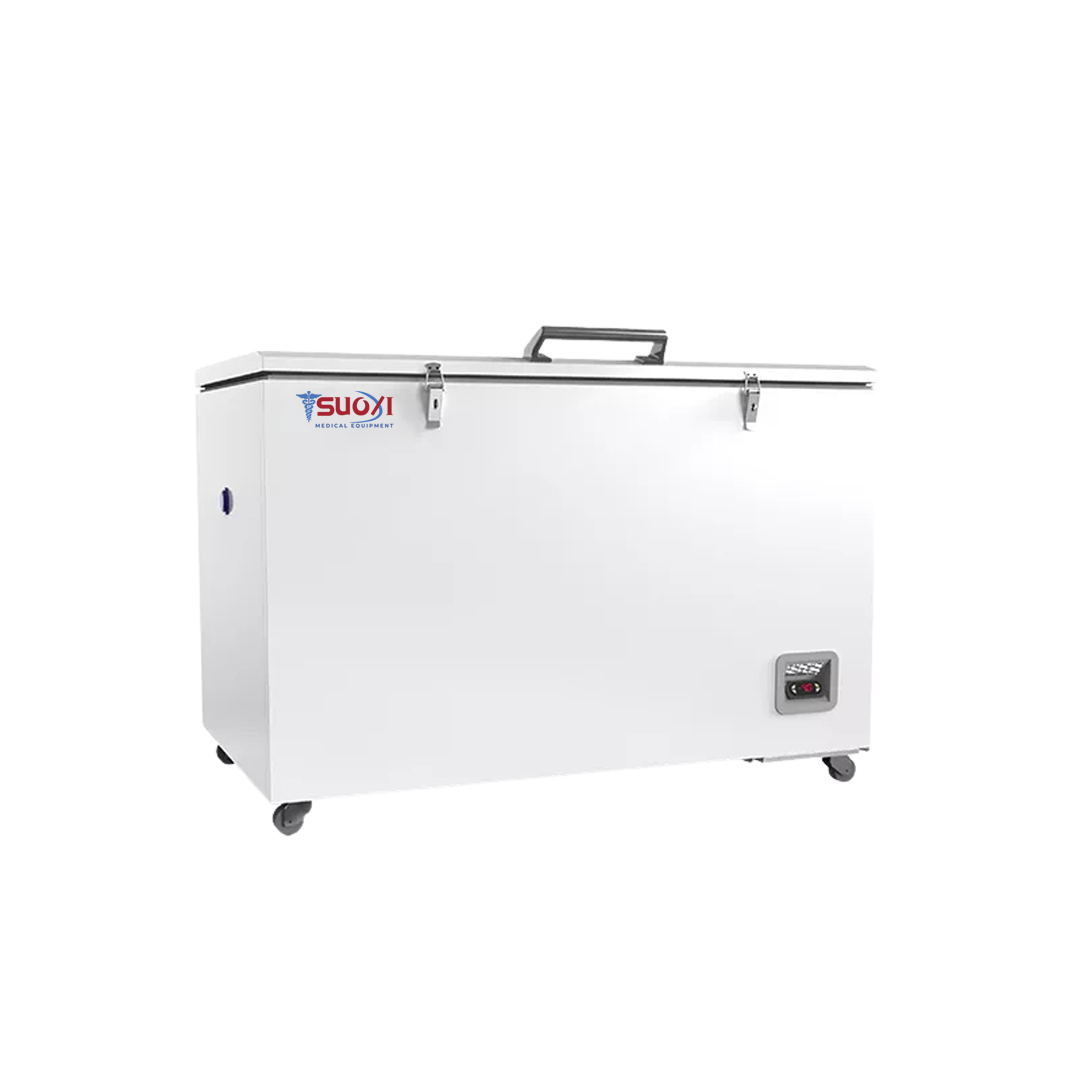

Model No: SX25-C40-FZ110L, SX25-C40-FZ210L, SX25-C40-FZ308L, SX25-C40-FZ485L
Technical Parameters:
| Model |
SX25-C40-FZ110L |
SX25-C40-FZ210L |
SX25-C40-FZ308L |
SX25-C40-FZ485L |
| Capacity |
110L |
210L |
308L |
485L |
| Temperature Range |
-15℃~-40℃ |
-20℃~-40℃ |
| Temperature Accuracy |
0.1℃ |
| Control System |
Microprocessor control, LED display |
| Alarm |
BDF-40H110&BDF-40H210&BDF-40H310:
High or low temperature alarm, sensor failure alarm, power failure alarm, battery switch alarm
BDF-40H485:
High or low temperature alarm, sensor failure alarm, power failure alarm, temperature controller failure alarm |
| Refrigeration Type |
Direct refrigeration |
| Refrigerant |
R290, 55g |
R290, 60g |
R290, 70g |
R290 |
| Evaporator |
Material of copper |
| Construction |
Structure |
Unibody Design&Mono-assembly foaming (Rigid polyurethane insulation material) |
| Internal Material |
304 stainless steel |
| External Material |
Powder coated cold rolled steel plate |
| Consumption |
550VA/270W |
550VA/280W |
528VA/290W |
290VA/295W |
| Power Supply |
Standard: 220V, 50Hz; Optional: 110/220V, 60Hz |
Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
| Caster |
Yes |
| Optional Accessory |
USB port |
/ |
| External Size(mm) |
705*705*885 |
945*785*885 |
1225*790*885 |
1655*755*915 |
| Packing Size(mm) |
805*800*1015 |
1045*880*1015 |
1325*885*1015 |
1775*900*1060 |
| Gross Weight(kg) |
73 |
88 |
101 |
138 |
