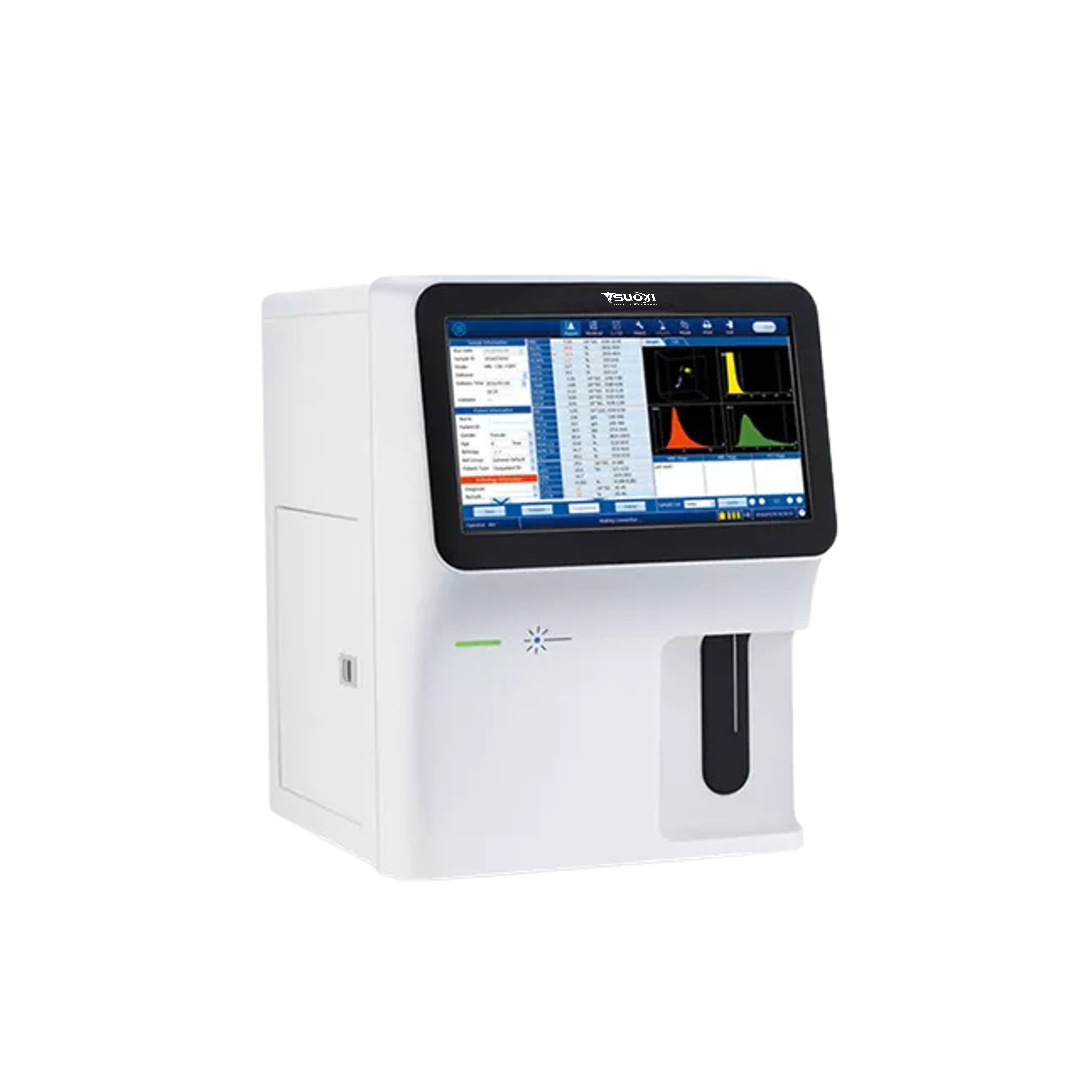

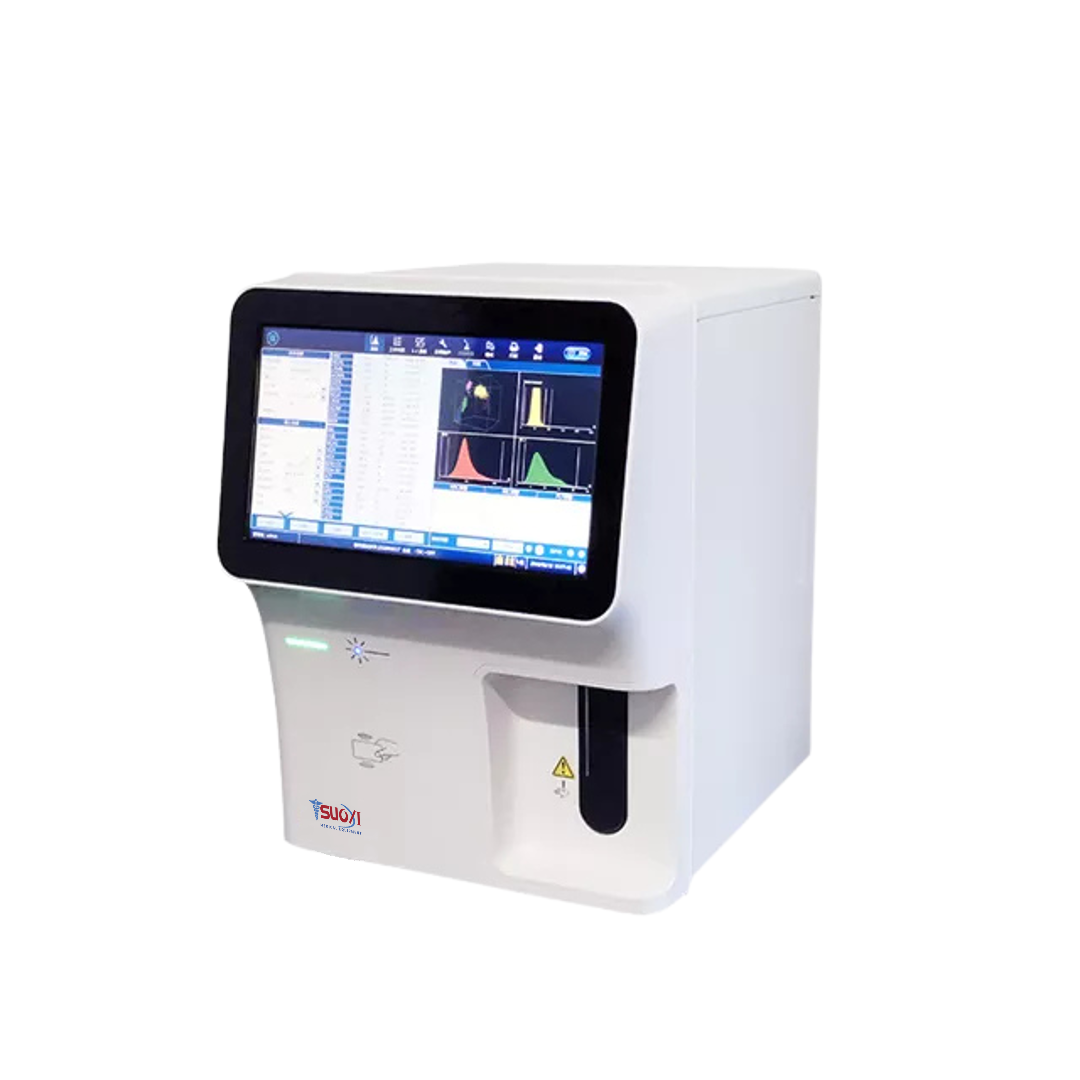

Model No: SX25-5PB1
Features:
Throughput 60t/h
14-inch touch screen
Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting
3D holographic scattergram displays the accurate 5-part differentiation of WBC
Large storage capacity: 100,000 results (including histogram, scattergram, patient information)
Technical Parameters:
| Specification | Details |
|---|---|
| Model | SX25-5PB1 |
| Throughput | 60 tests/hour |
| Assay Items | 5 parts, 29 parameters, 3 histograms, 3D scattergram |
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
| Test Mode | CBC mode, CBC+DIFF mode venous whole blood, Capillary whole blood and prediluted |
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# |
| 4 Research Parameters | ALY%, ALY#, IG%, IG# |
| Performance | Item: Linearity Range, Carry Over, CV WBC: 0 |
| Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl |
| Storage | 10,000 results including histogram, scattergram, and patient information |
| Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz; 400VA |
| Package Size (WDH) | 575490690mm |
| Gross Weight | 46kg |
| Reagent Package Size | 330330330mm, 400290240mm, 400290240mm |
| Reagent Gross Weight | 22kg, 2kg, 1kg |
