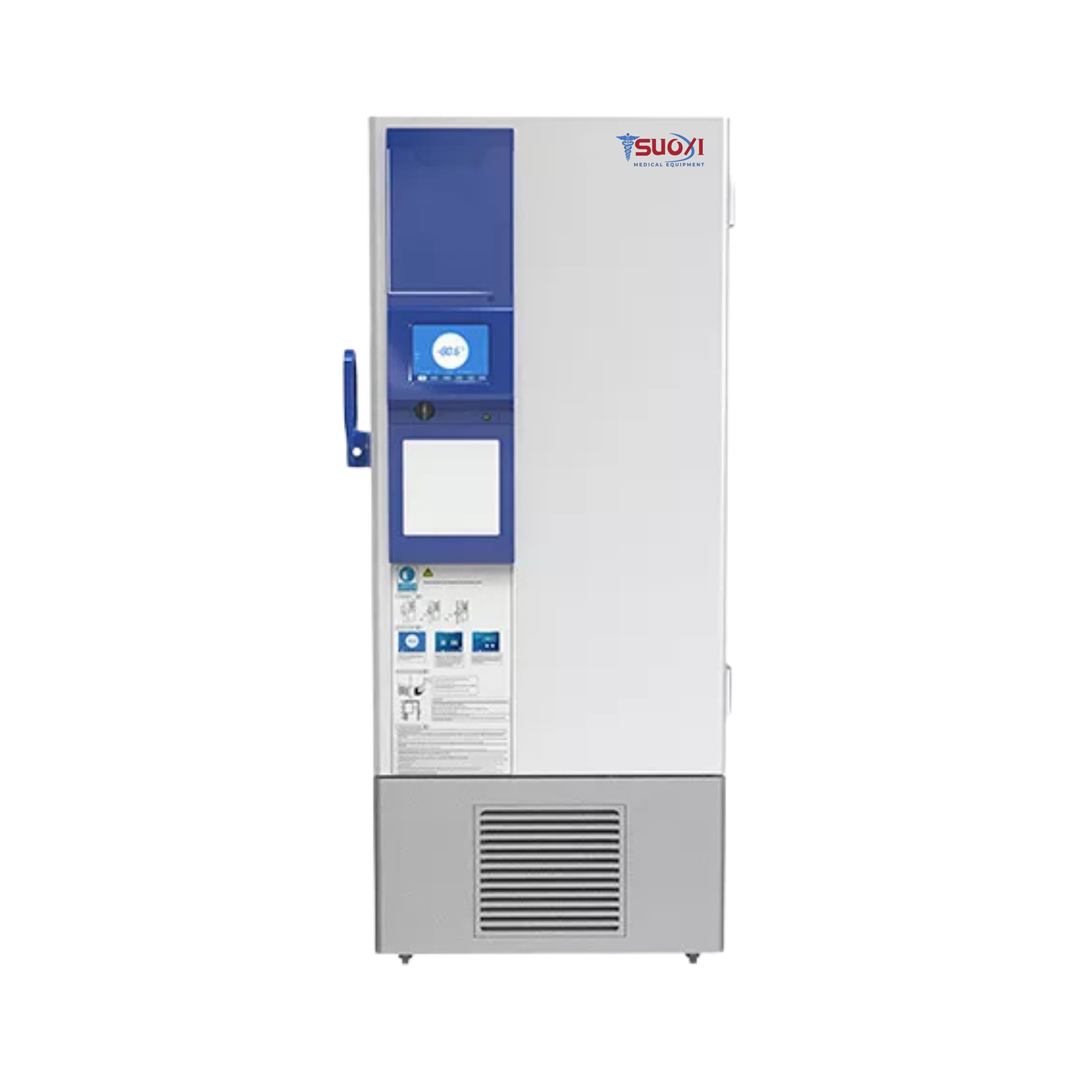

Model No: SX25-FZ86C-T418L, SX25-FZ86C-T608L
Technical parameters:
| Parameter | Details (Model SX25-FZ86C-T418L) | Details (Model SX25-FZ86C-T608L) |
|---|---|---|
| Capacity | 418L | 608L |
| Shelf | 3pcs, S.S. | 3pcs, S.S. |
| Refrigeration Type | Direct refrigeration | Direct refrigeration |
| Defrosting Type | Manual | Manual |
| Refrigerant/g | Mixed refrigerant, CFC-free | Mixed refrigerant, CFC-free |
| Noise | 60dB(A) | 60dB(A) |
| Ambient Temp. | 10~32℃ | 10~32℃ |
| Temp. Range | -40℃~-86℃ | -40℃~-86℃ |
| Evaporator | Built-in coil, copper pipe | Built-in coil, copper pipe |
| Condenser | Copper tube and aluminum fin | Copper tube and aluminum fin |
| Sensor | PTC100 | PTC100 |
| Thermostat | Electronic thermostat | Electronic thermostat |
| Display | LCD | LCD |
| Power Supply | 110/220V, 50/60Hz | 110/220V, 50/60Hz |
| Power | 1070W/1870VA | 1110W/1870VA |
| Current | 8.5A | 8.5A |
| Internal Material | S.S.304 | S.S.304 |
| External Material | Sprayed cold-rolled steel | Sprayed cold-rolled steel |
| Lagging | Foamed polyurethane cyclopentane | Foamed polyurethane cyclopentane |
| Audible and Visual Alarm | High and low temperature alarm, Power fault alarm, Thermostat fault alarm, Door switch alarm | High and low temperature alarm, Power fault alarm, Thermostat fault alarm, Door switch alarm |
| Interface | RS485 | RS485 |
| Door | Lockable outer door, 2 inner doors | Lockable outer door, 2 inner doors |
| Temp. Test Port | 1, φ30mm | 1, φ30mm |
| Standard Accessory | USB port | USB port |
| Optional Accessory | RS485 | RS485 |
| Net Weight | 315kg | 360kg |
| Gross Weight | 345kg | 390kg |
| Internal Size(WDH) | 6006121150mm | 6207551280mm |
| External Size(WDH) | 9809881945mm | 100011471996mm |
| Package Size(WDH) | 113011702150mm | 115012802210mm |
