Model No: SX25-CAA400
Features:
400 tests per hour
90 reagent positions
120 reaction cuvettes
Built-in sample barcode system (optional)
60 sample positions (90 sample positions optional)

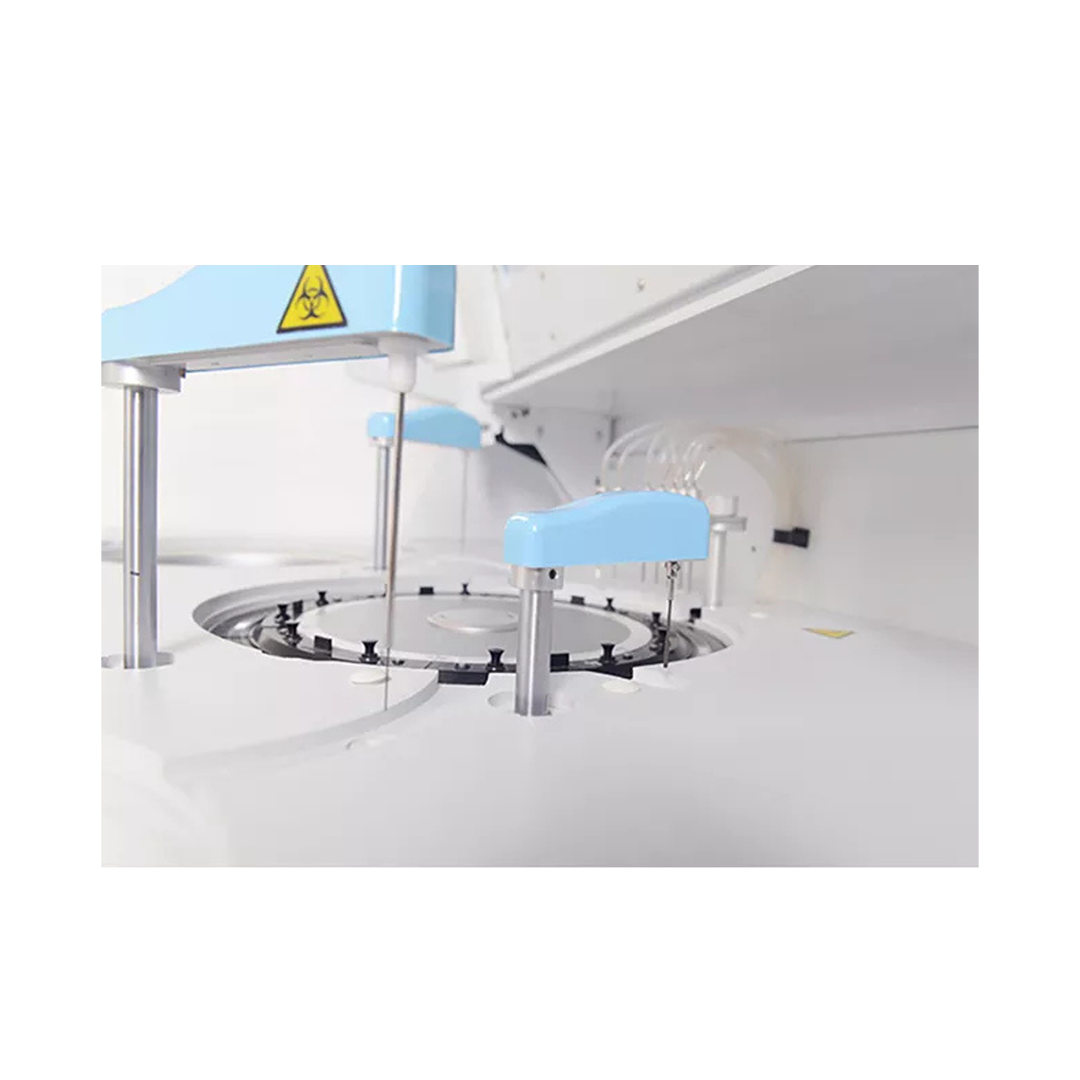

Probe with anti-collision and liquid level detection functions
Technical Parameters
| Specification | Details |
|---|---|
| Model | SX25-CAA400 |
| Overall Performance | |
| Throughput | 400 tests/hour |
| Analysis Method | End-point, Fixed-time, Rate (Kinetic), Turbidimetry |
| Certification | CE, FDA, ISO9001, ISO13485 |
| Sample & Reagent System | |
| Sample Positions | 60 or 90 sample positions, built-in barcode system available |
| Reagent Positions | 90 refrigerated reagent positions |
| Sample Volume | 1~70μl |
| Reagent Volume | 10~350μl |
| Probe | Teflon coating, with anti-collision function, liquid level detection function |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | 2~8℃ |
| Reaction System | |
| Temperature Control | 37±0.1℃ |
| Cuvettes | 120 reusable cuvettes, optical length 6mm |
| Mixer Probe | Independent stirring |
| Washing | Automatic cuvettes washing |
| STAT Function | Yes |
| Optical System | |
| Light Source | 12V/20W halogen-tungsten lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
| Absorbance | 0~3.5Abs |
| Calibration & QC | |
| Calibration | Linear: K factor, 1-point, 2-point, and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi-rule, Cumulative Sum Check, Twin Plot (2D), Daily QC, Monthly QC |
| Data Management | |

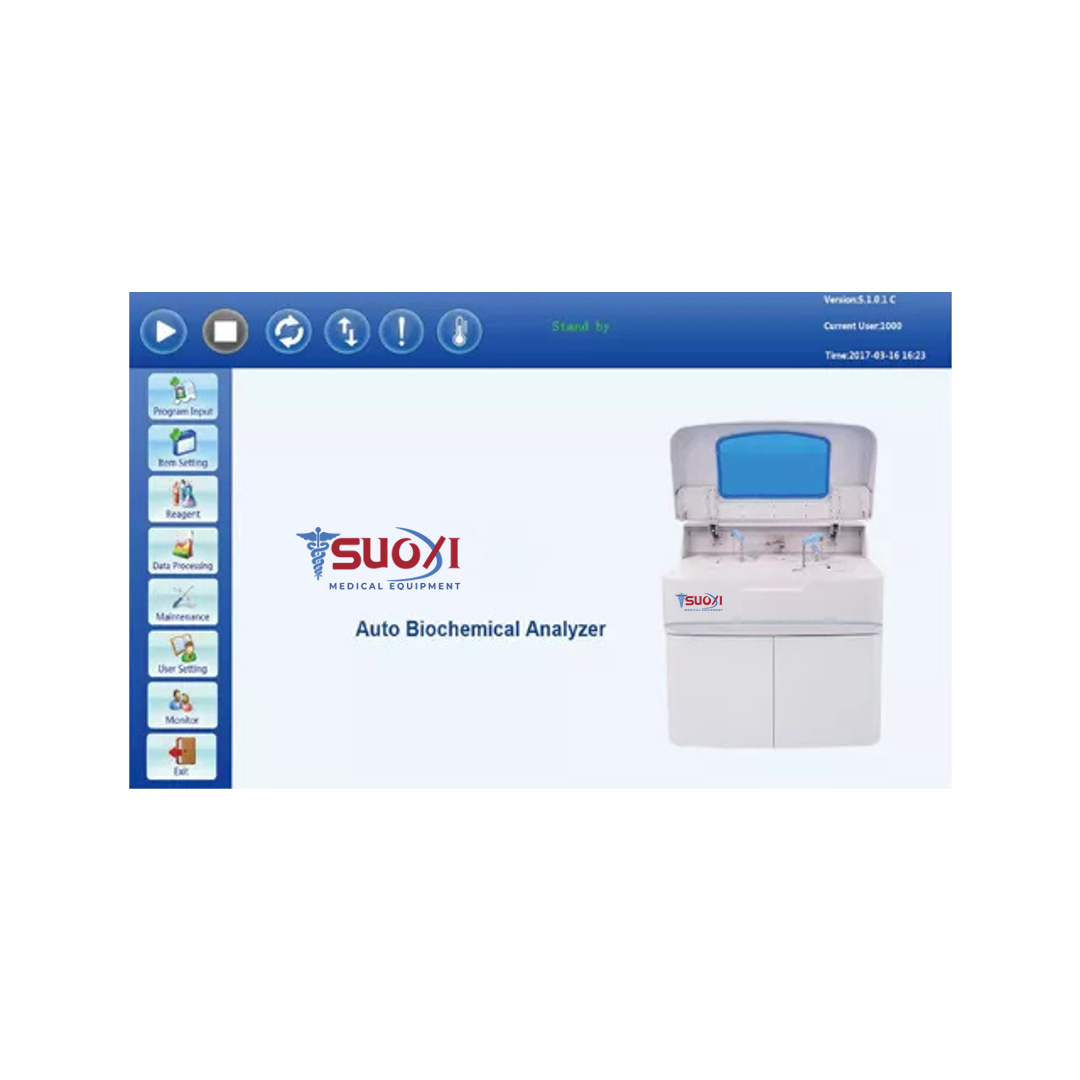

| Software | Windows 7/8/10, 32 or 64 bit |
| LIS System | Bi-directional, supports HL7 protocol |
| Interface | TCP/IP network interface |
| Printer | External optional, multiple reporting modes available |
| Working Conditions | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 500W |
| Temperature | 15~30℃ |
| Water Consumption | Deionized water: <12L/h |
| Humidity | 40%~85% |
| Size & Weight | |
| External Size (WDH) | 11707751145mm |
| Net Weight | 190kg |
| Package Size (WDH) | 13589351387mm |
| Gross Weight | 255kg |
