Model No: SX25-CAA600
Features:
600 tests per hour
120 reaction cuvettes
180 refrigerated reagent positions
Built-in sample barcode system (optional)
90 sample positions (120 sample positions optional)

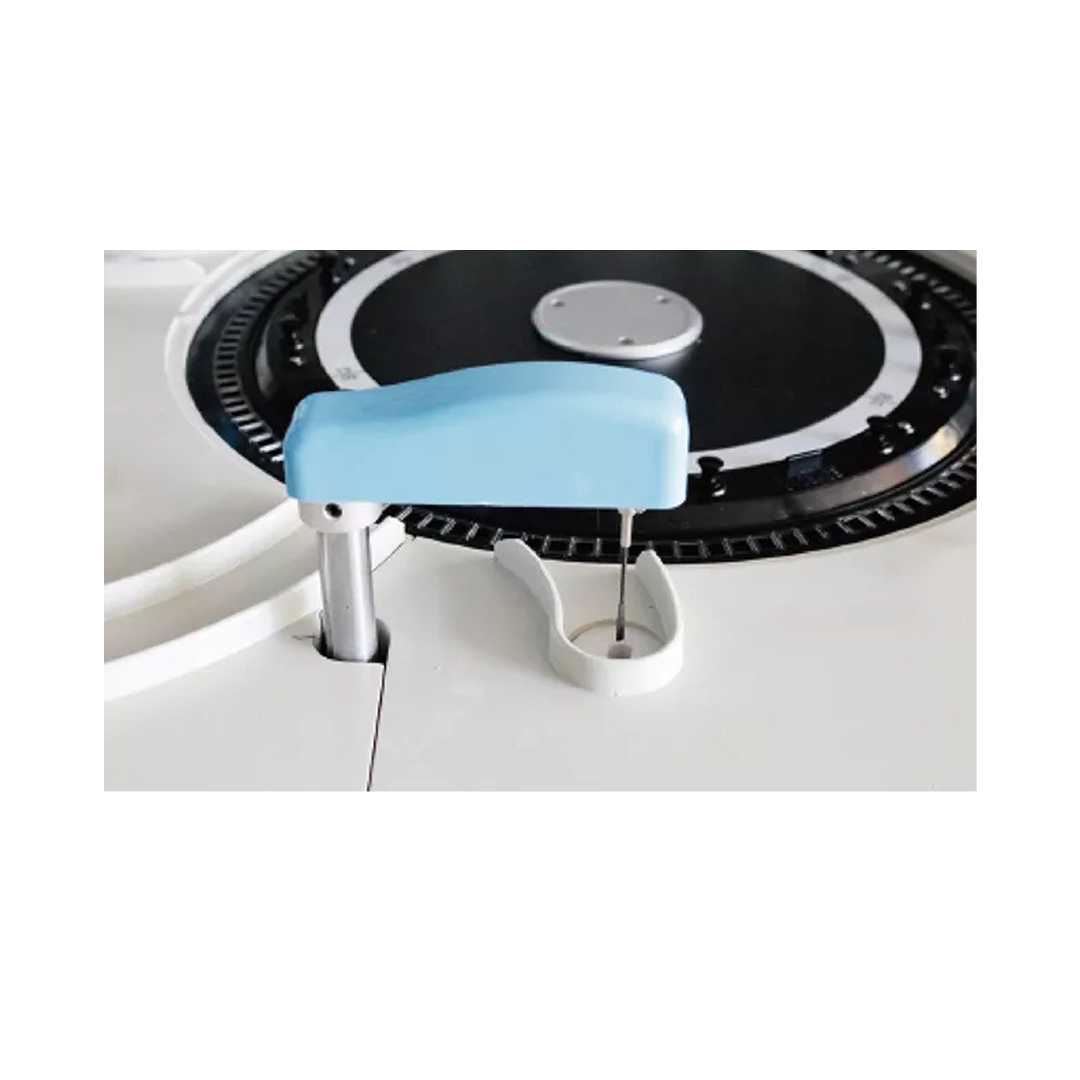

Probe with anti-collision function, liquid level detection function
Technical Parameters:
| Specification | Details |
|---|---|
| Model | SX25-CAA600 |
| Overall Performance | |
| Throughput | 600 tests/hour |
| Analysis Method | End-point, Fixed-time, Rate (Kinetic), Turbidimetry |
| Certification | CE, FDA, ISO9001, ISO13485 |
| Sample & Reagent System | |
| Sample Positions | 90 sample positions, built-in barcode system available |

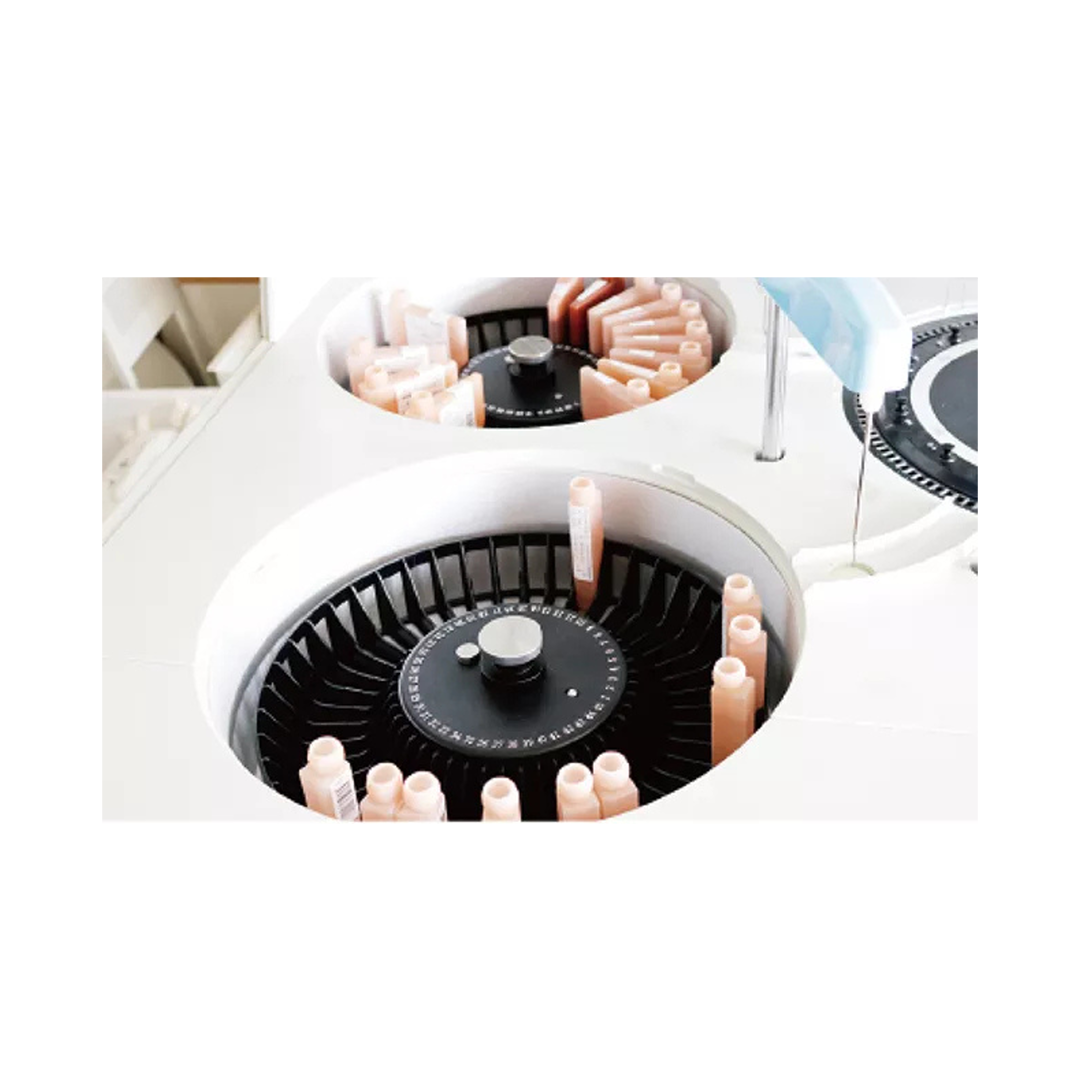

| Reagent Positions | 180 refrigerated reagent positions (R1: 90 & R2: 90) |
| Sample Volume | 1~70μl |
| Reagent Volume | 10~350μl |
| Probe | Teflon coating, with anti-collision function, liquid level detection function |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | 2~8℃ |
| Reaction System | |
| Temperature Control | 37±0.1℃, real-time monitoring |
| Cuvettes | 120 reusable cuvettes, optical length 6mm |
| Mixer Probe | Independent stirring |
| Washing | Automatic cuvettes washing |
| STAT Function | Yes |
| Optical System | |
| Light Source | 12V/20W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
| Absorbance | 0~3.5Abs |
| Calibration & QC | |
| Calibration | 1-point, 2-point and multipoint, factor, Spline, Logit-4P, Logit-5P, Polygon |
| Quality Control | Inserting quality control at random |
| Data Management | |

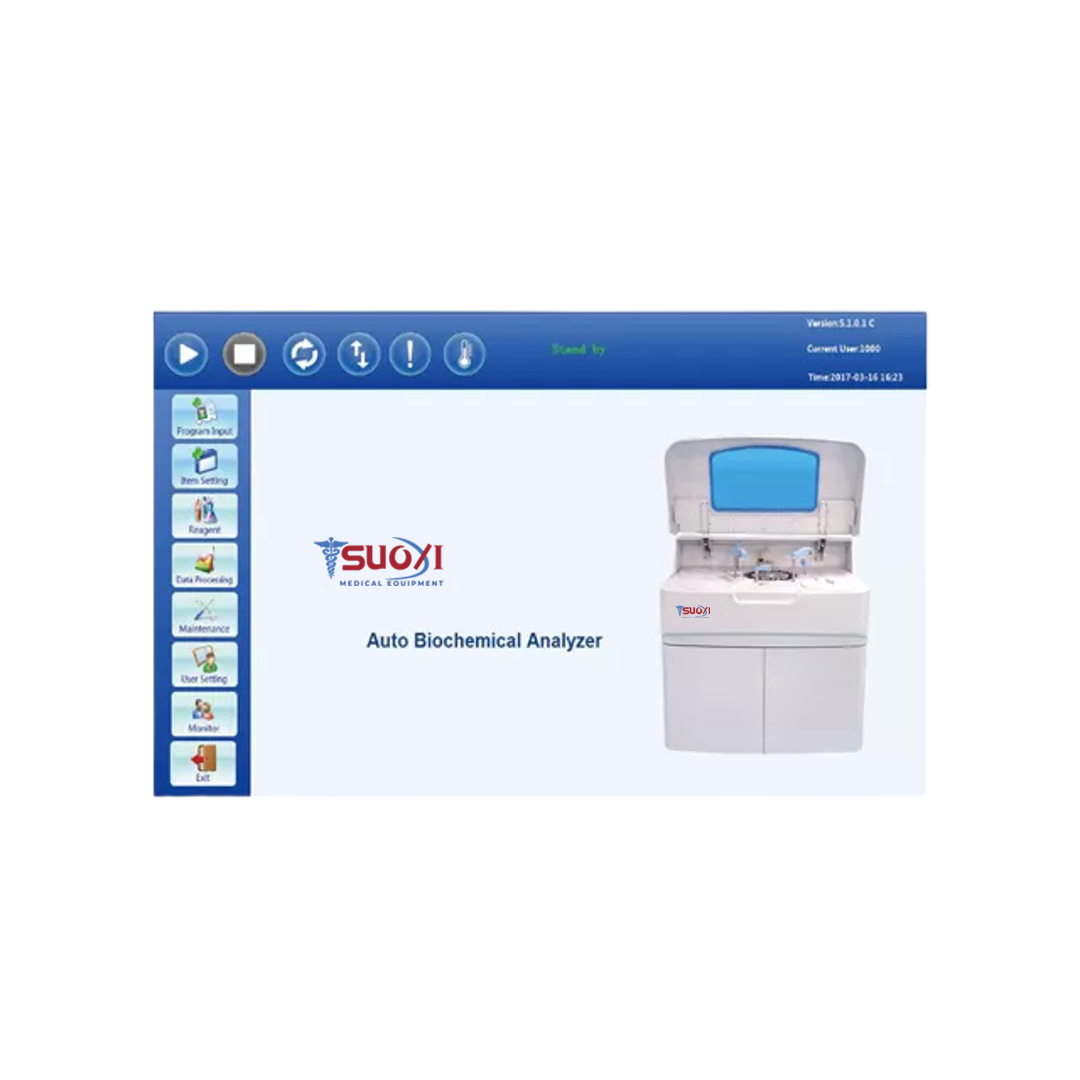

| Software | Windows 7/8/10 |
| LIS System | Available |
| Interface | TCP/IP network interface |
| Printer | External optional, multiple reporting modes available |
| Working Conditions | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 800VA |
| Temperature | 15~30℃ |
| Water Consumption | Deionized water: 20L/H |
| Humidity | 40%~85% |
| Size & Weight | |
| External Size (WDH) | 11707751145mm |
| Net Weight | 216kg |
| Package Size (WDH) | 13589381387mm |
| Gross Weight | 281kg |
| Accessory Package Size (WDH) | 550430860mm |
| Accessory Gross Weight | 20kg |
