Auto ELISA Processor SX25-AEP1001

Model No: SX25-AEP1001

Features

1. Pressure-Based Liquid Detection
   Utilizes pressure-type liquid detection for precise and reliable liquid handling.

2. TIP and Clot Detection
   Equipped with TIP detection and clot detection functions to ensure accurate sample processing and avoid errors.

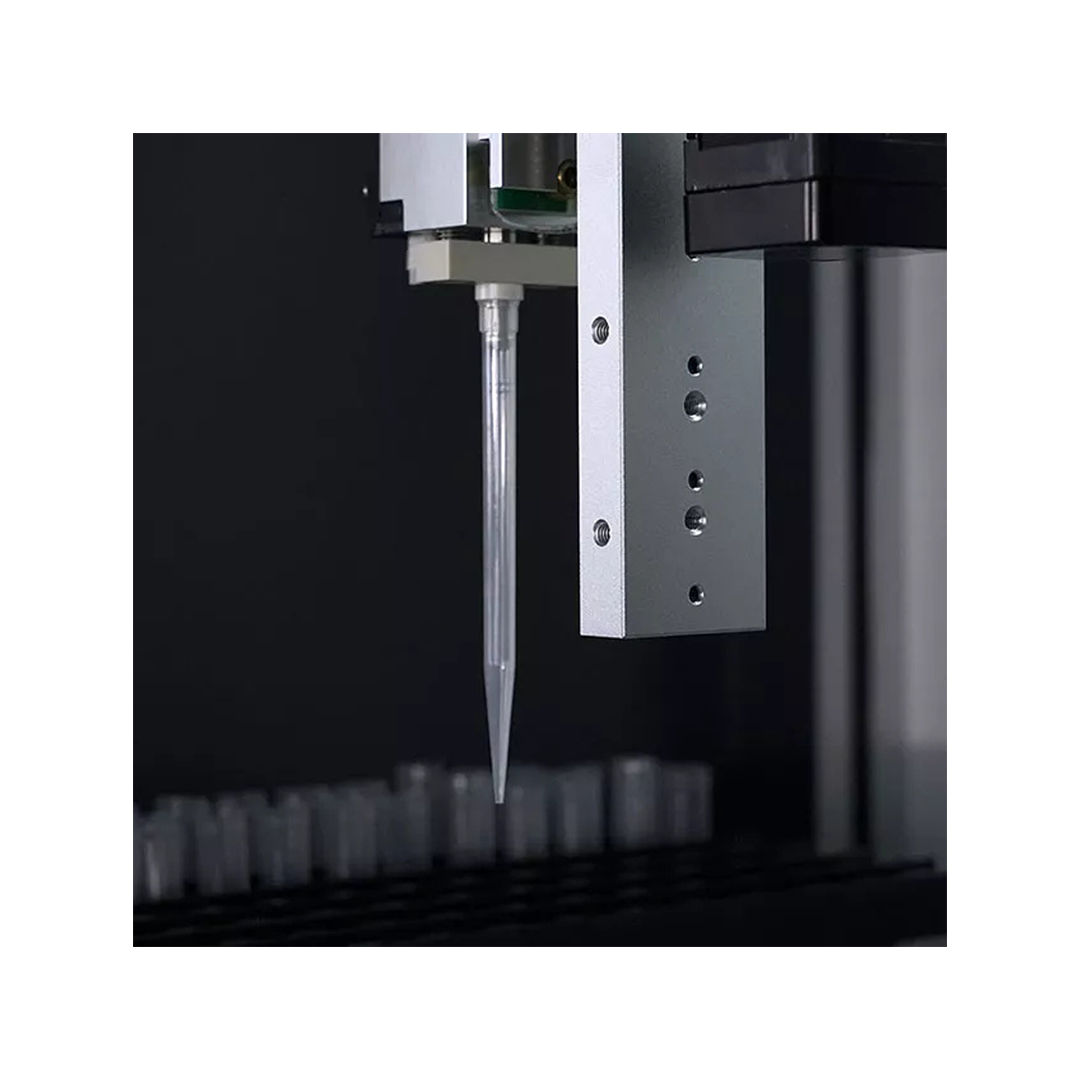

3. High-Precision Pipetting
   Offers high-precision pipetting with a minimum volume as low as 10 μL, ensuring exact sample volumes.

4. Position Sensing
   Real-time monitoring of the gripper status through position sensing, enhancing workflow efficiency and accuracy.

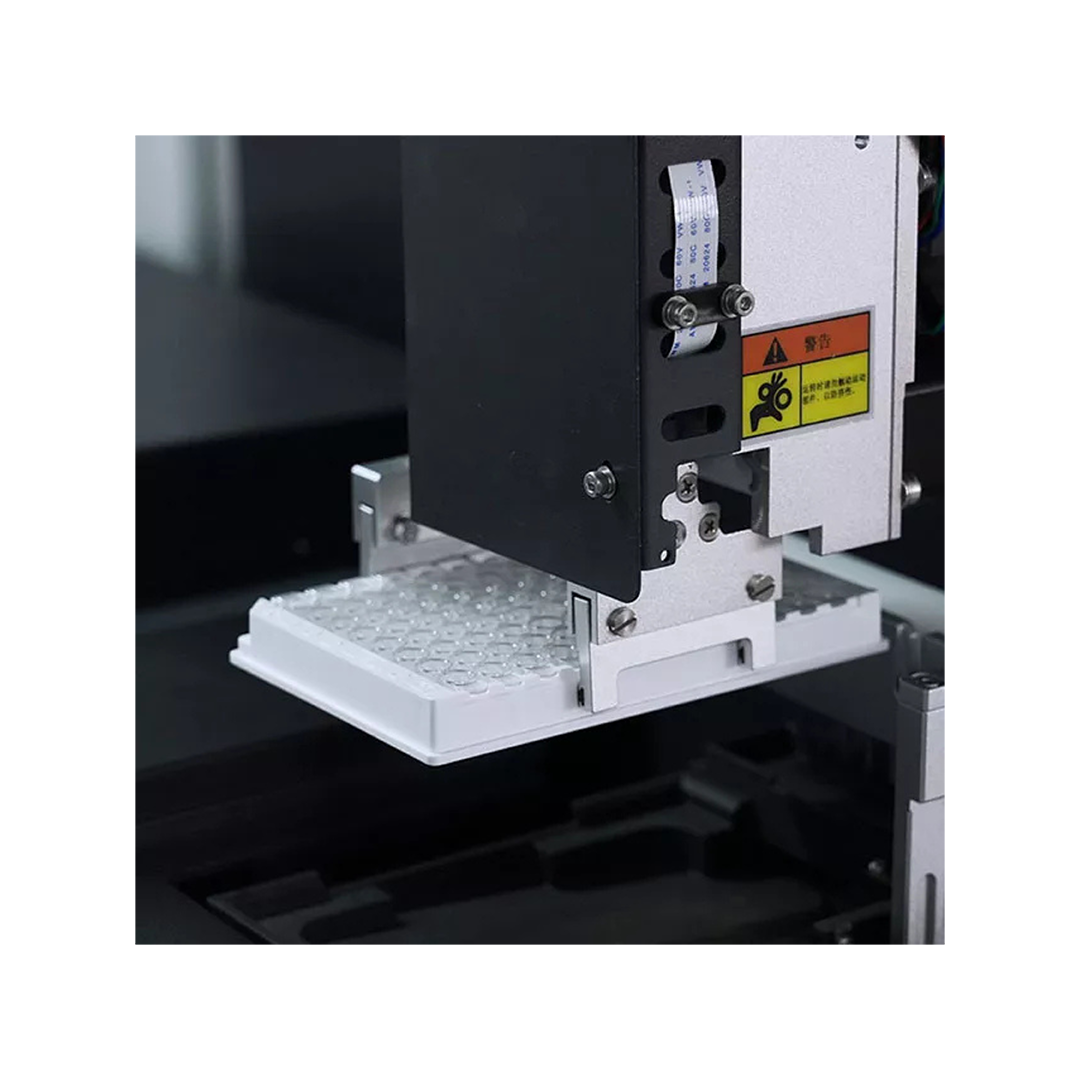

5. Adjustable Grippers
   Features multi-spacing and multi-strength adjustable grippers, allowing for the handling of microplates and plate covers of varying sizes.

6. Dual Thread Control
   Dual thread control enables simultaneous operation of the sampling arm and other components without interference, optimizing throughput and efficiency.

Technical Parameters – SX25-AEP1001 Automated ELISA Processor

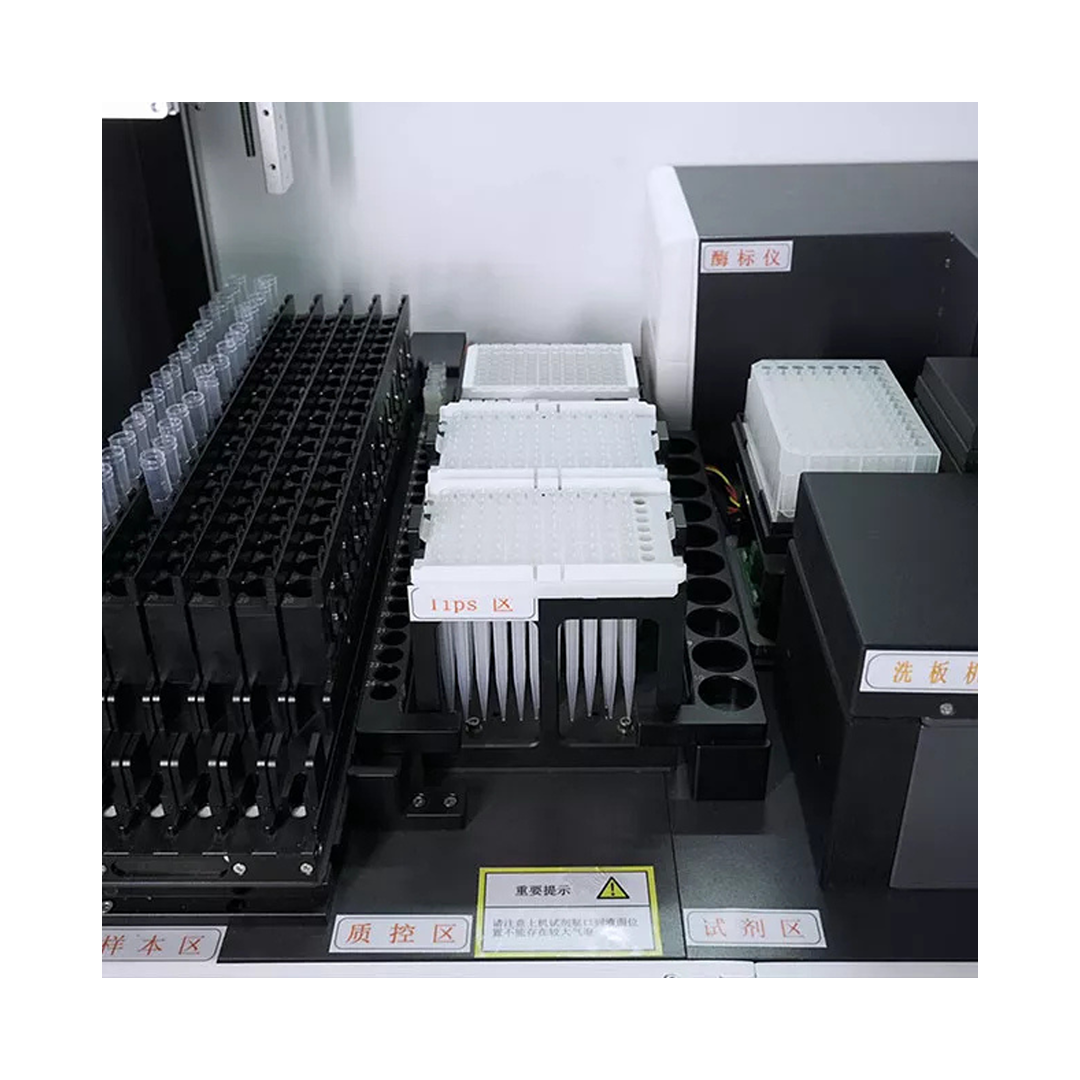

Sample & Reagent Unit

• Sample Racks:
  6 × 20 push-pull sample racks
• Sampling Channel:
  1 channel
• Liquid Level Detection:
  Air pressure level detection, clot detection function
• Tip:
  1000 μL, 2 tip racks
• Pipetting Range:
  10 μL to 1000 μL
• Pipetting Precision:
  • 100 μL: CV ≤ 1%, Accuracy ≤ 2.5%
  • 1000 μL: CV ≤ 0.5%, Accuracy ≤ 1%
• Reagent Position:
  2 reagent racks
• Dilution Plate Position:
  1 dilution plate position with incubation and shaking

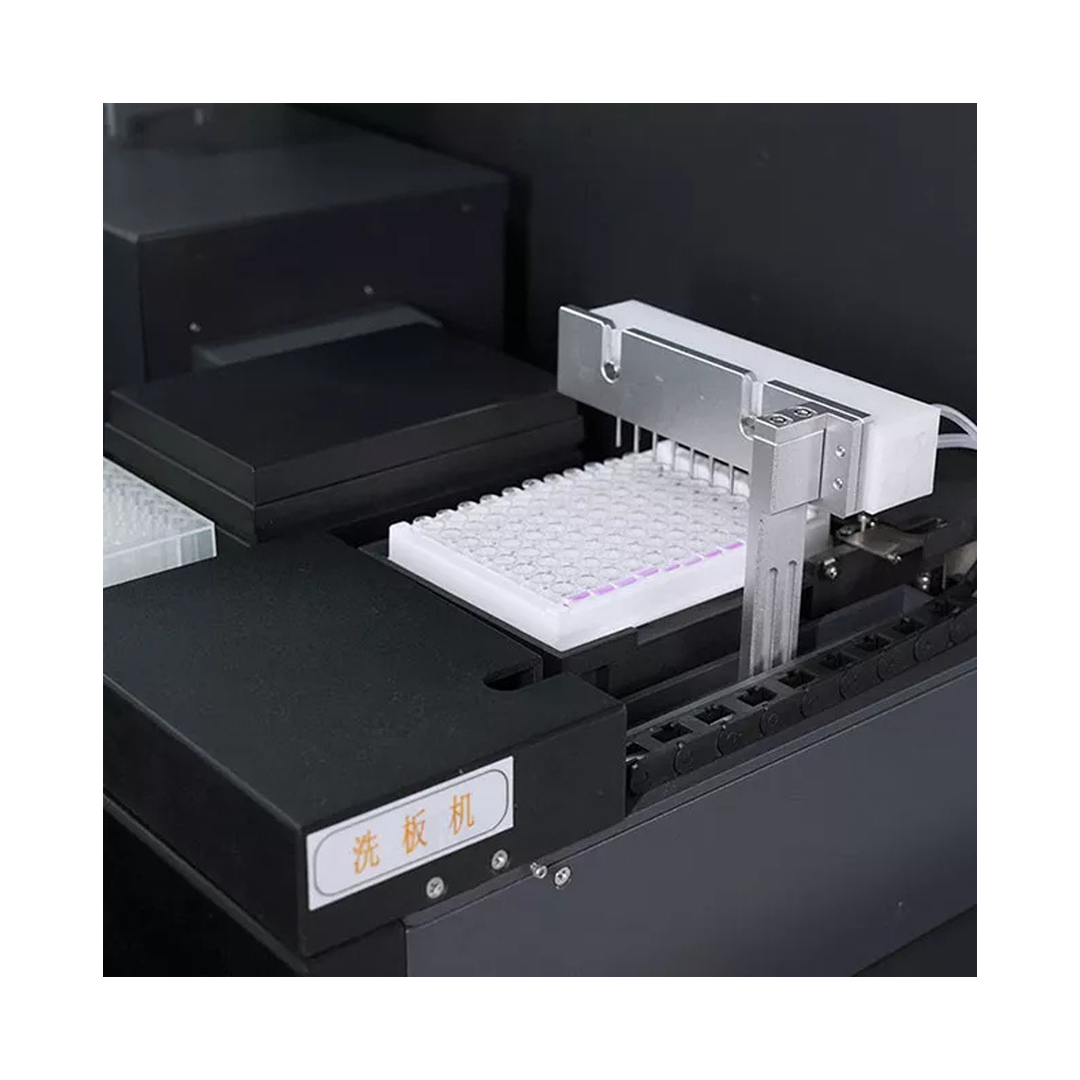

Washing Unit

• Washer:
  1 unit
• Washing Head:
  16-channel (32-pin), double-row cleaning, hanging installation with leakage recovery
• Injection Uniformity:
  CV < 1.5%
• Washing Residual:
  < 2 μL

Reading Unit

• Reading Channels:
  8 independent photometric channels (mono and dichromatic reading)
• Absorbance Range:
  0.000 to 4.000 Abs
• Linear Range:
  0.000 to 3.000 Abs
• Repeatability:
  CV ≤ 1.0%
• Stability:
  ≤ ±0.003 Abs
• Spectral Range:
  400 to 700 nm
• Optical Filters:
  4 standard filters (405, 450, 492, 630 nm); total of 10 filter positions
• Reading Accuracy:
  • ≤ ±0.02 Abs from 0.0 to 1.0 OD
  • ≤ ±0.03 Abs from 1.0 to 2.0 OD
• Sensitivity:
  ≥ 0.01 mg/L
• Channel Difference:
  ≤ 0.02 Abs

Incubation Unit

• Incubators:
  2 shaking incubators
• Cover Position:
  1 (2 covers)
• Heating Method:
  Dry heating with cover
• Shaking Function:
  Horizontal circular oscillation, 1-3 levels adjustable, amplitude 2.5 mm
• Temperature Range:
  Room temperature (RT) to 60 °C
• Temperature Uniformity:
  ±0.5 °C
• Temperature Fluctuation:
  ±0.5 °C

Data Management

• Software:
  Compatible with Windows 7 or higher
• LIS System:
  Bi-directional, supports HL7 protocol
• Results:
  Absorbance and results are viewable through software
• Printer:
  External printer (optional)
• Built-in Scanner:
  Optional

Other Functions

• Biosafety Protection:
  Optional (Negative pressure working zone, HEPA filter)

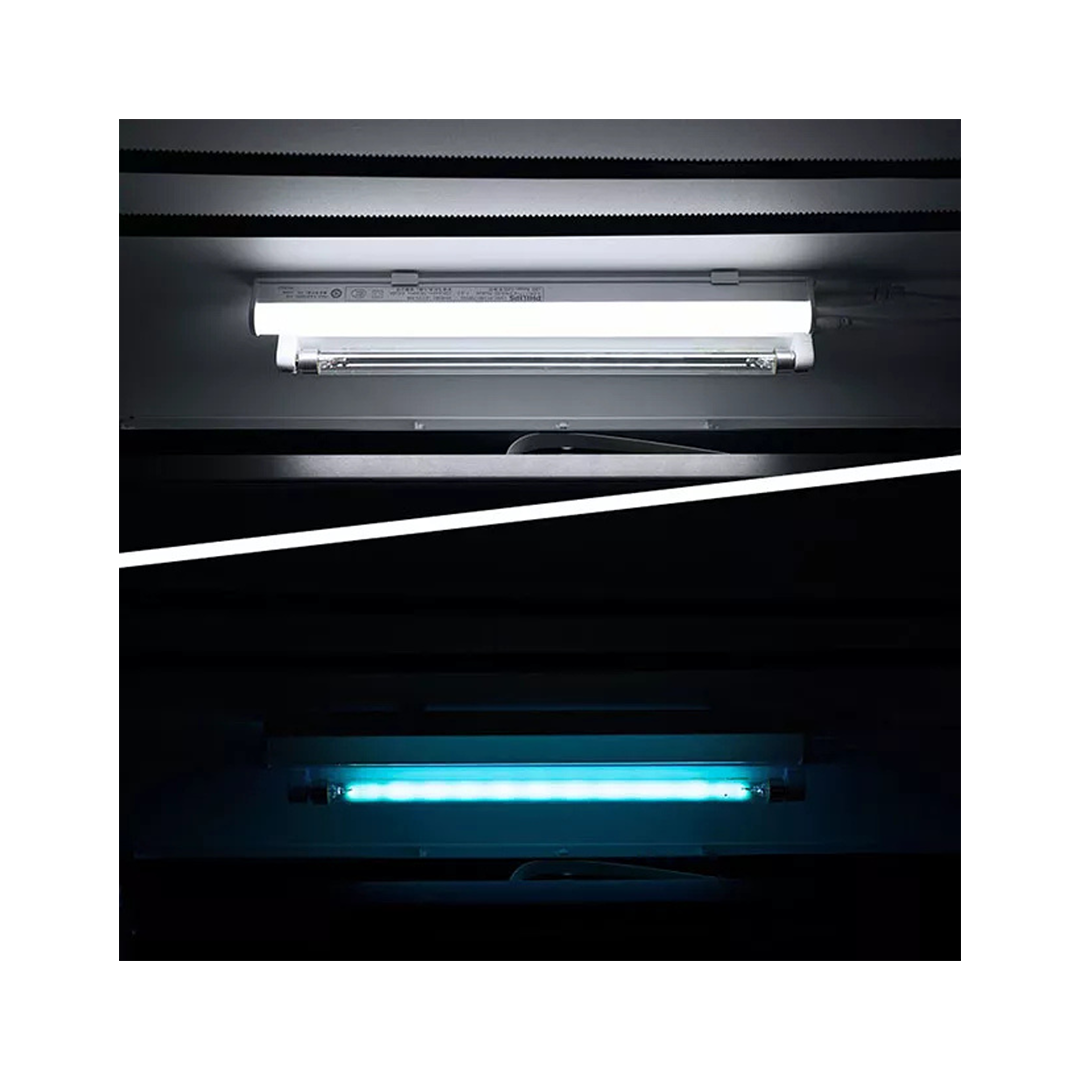

• Disinfection:
  UV lamp
• Lighting:
  LED
• IAP Function:
  Firmware can be upgraded online at any time

Working Conditions

• Power Supply:
  AC220V ±10%, 50/60 Hz (standard); 110V ±10%, 60 Hz (optional)
• Operating Temperature:
  10–40 °C
• Operating Humidity:
  30%–80%

Dimensions & Weight

• External Size (W × D × H):
  870 × 700 × 885 mm
• Net Weight:
  180 kg
• Packaging Dimensions (W × D × H):
  Machine: 1018 × 828 × 1130 mm
  Accessories: 750 × 1000 × 700 mm
• Gross Weight:
  Machine: 160 kg
  Accessories: 80 kg
