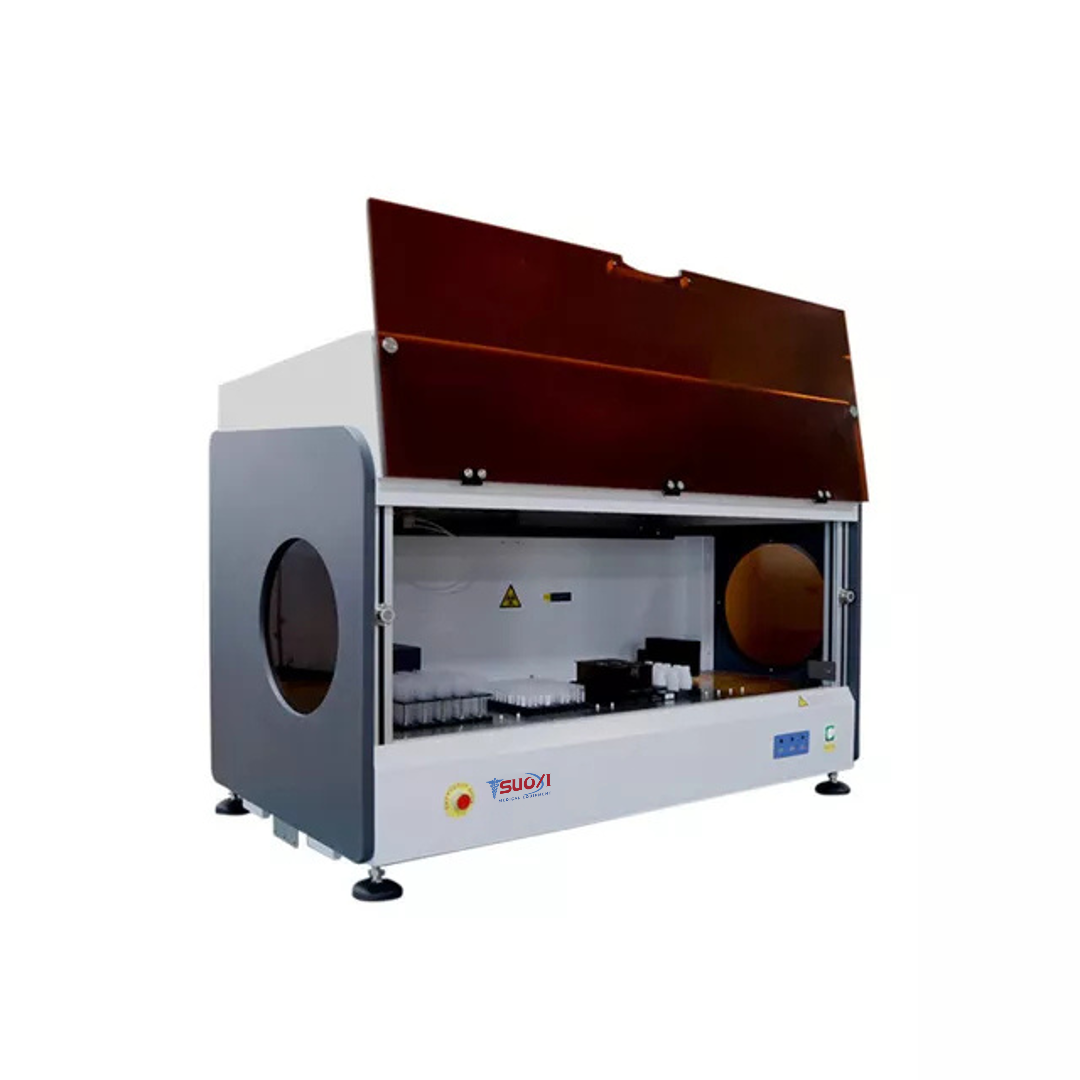

Auto ELISA Processor SX25-AEP2000

Model No: SX25-AEP2000

Features

1. Dual Pipetting System
   Equipped with 1 robotic arm and 2 high-precision pipetting probes (10–1000 μL), enabling faster and more efficient sample handling.

2. Independent Incubation Capacity
   Supports 4 independently controlled 96-well microplates, allowing parallel processing of multiple assays with precise temperature control.

3. Integrated Reader & Washer
   Includes a built-in automatic reader and washer, streamlining ELISA workflows by combining optical reading and plate washing in a single unit.

Technical Parameters – SX25-AEP2000 Automated ELISA Processor

Sample Unit

• Sample Racks:
  Standard 192 sample positions (expandable up to 552)
• Pipetting Range:
  10–1000 μL
• Dispensing System:
  2 aspirating and dispensing probes (X-Y-Z movement)

Reagent Unit

• Reagent Position:
  23 reagent racks, editable
• Pipetting Range:
  10–1000 μL (1 μL stepping)
• Pipetting Precision:
  CV ≤ 0.5% at 100 μL

Washing Unit

• Dispensing Time:
  4 minutes to process a full 96-well microplate
• Washing Probes:
  Dual 8-nozzle manifolds
• Wash Containers:
  • Cleaning fluid (15L)
  • Wastewater (25L)
  • Buffer 1 (5L)
  • Buffer 2 (2L)
  • Buffer 3 (2L)
  • Buffer 4 (2L)
  • Equipped with liquid level-sensing and full/shortage alarms
• Waste Containers:
  25L container with waste full sensor
• Washing Residual:
  < 2 μL

Reading Unit

• Reading Channels:
  8 independent photometric channels (mono and dichromatic reading)
• Absorbance Range:
  0.0–3.0 OD
• Spectral Range:
  400–700 nm
• Optical Filters:
  • Standard: 450 nm, 630 nm
  • Optional: 405 nm, 450 nm, 492 nm, 630 nm
• Reading Accuracy:
  • ±1% from 0.0–1.5 OD
  • ±2% from 1.5–3.0 OD

Incubation Unit

• Incubators:
  4 independent units
• Temperature Range:
  Room Temperature (RT) to 45 °C
• Temperature Accuracy:
  ±0.5 °C

Data Management

• Software System:
  Compatible with Windows 7 or higher
• LIS System:
  Bi-directional, supports HL7 protocol
• Results:
  Absorbance and results reviewable via software
• Printer:
  External printer (optional)

Working Conditions

• Power Supply:
  AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz, 400 W
• Operating Temperature:
  10–30 °C
• Operating Humidity:
  30%–80%

Dimensions & Weight

• External Size (W × D × H):
  1235 × 705 × 875 mm
• Net Weight:
  146 kg
• Packaging Dimensions (W × D × H):
  1380 × 860 × 1435 mm
• Gross Weight:
  220 kg
