Auto ELISA Processor SX25-AEP4001

Model No: SX25-AEP4001

Features

1. Pressure-Based Liquid Detection
   Employs the pressure-type liquid detection principle, ensuring accurate liquid handling and preventing contamination.

2. TIP and Clot Detection
   Equipped with TIP detection and clot detection capabilities to ensure precise sample processing.

3. High-Precision Pipetting
   Offers high-precision pipetting with a minimum volume of 5 μL, ensuring accurate and consistent results across various sample sizes.

4. Position Sensing
   Real-time monitoring of gripper status via position sensing, ensuring the safe and accurate handling of samples during the entire process.

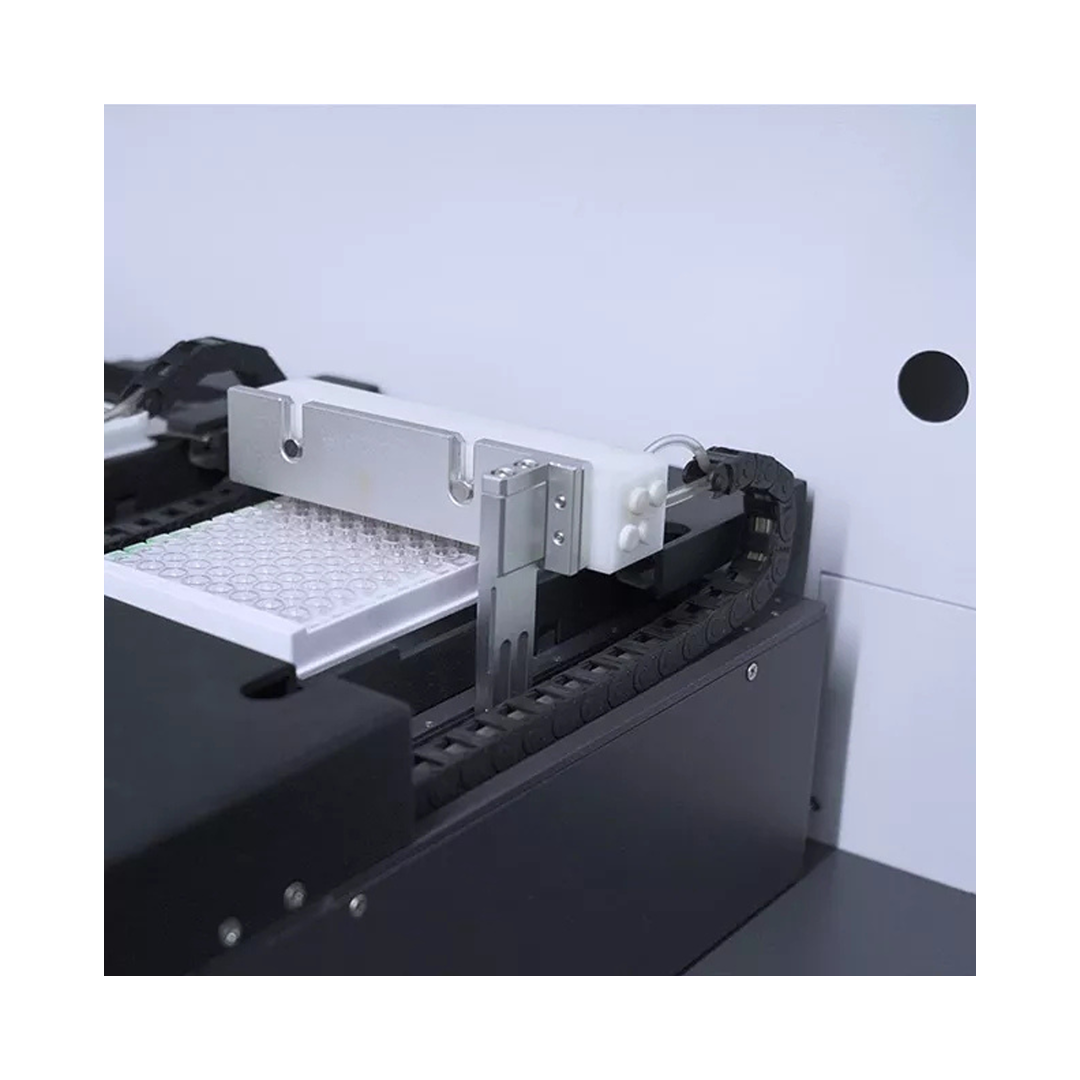

5. Adjustable Grippers
   Multi-spacing and multi-strength adjustable grippers are capable of adapting to grasp and place microplates and plate covers of different sizes with ease and flexibility.

6. Dual Thread Control
   Dual thread control allows for simultaneous operation of the sampling arm and other functions without interference, improving throughput and operational efficiency.

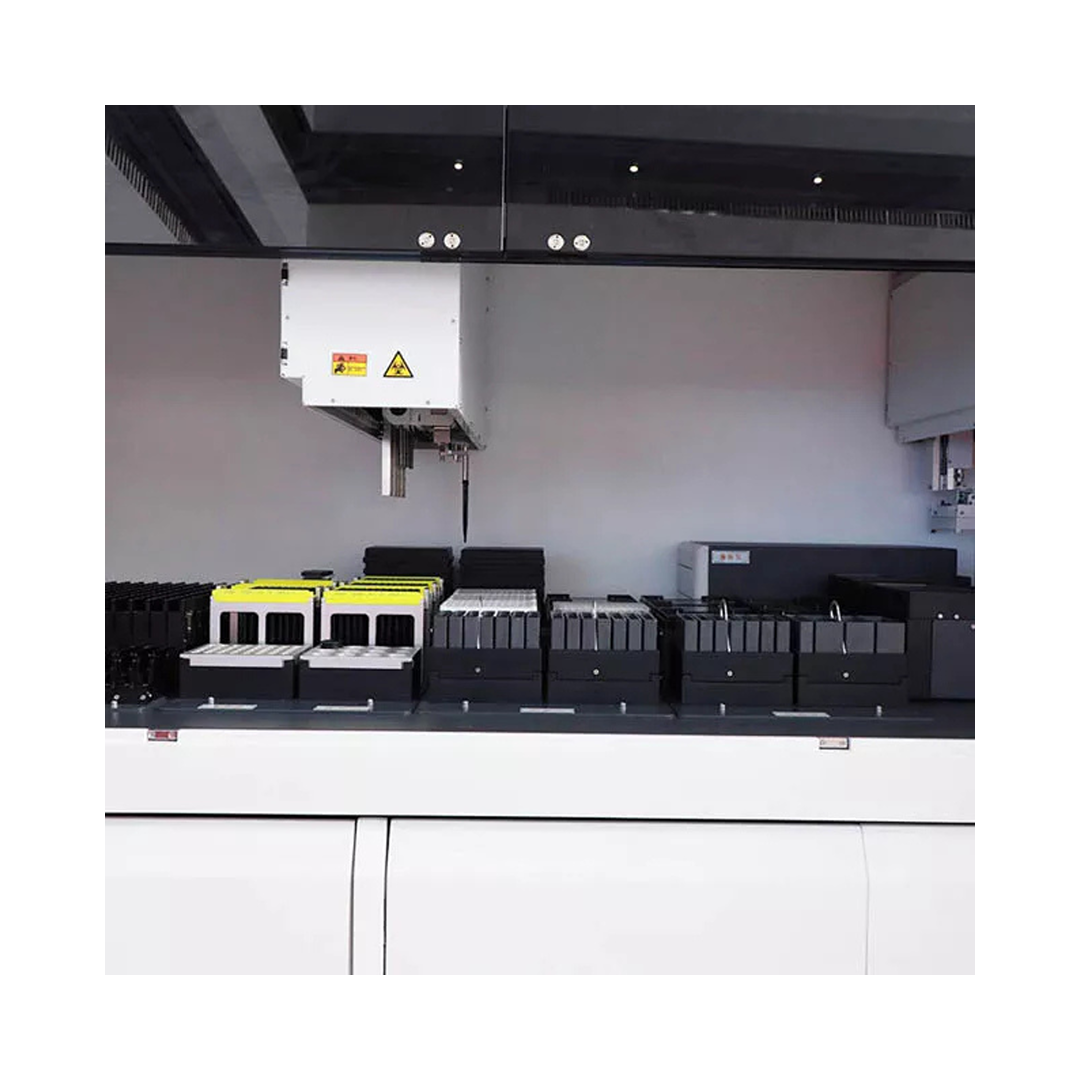

Sample & Reagent Unit:

• Sample Racks: 12*16 push-pull sample rack with detection

• Sampling Channel: 4 channels

• Liquid Level Detection: Air pressure level detection, clot detection function

• Tip: 1000μl, 5 tip racks

• Pipetting: 5μl~1000μl

• Pipetting Precision:

  • 100μl: CV ≤ 0.5%, Accuracy ≤ 2.0%

  • 1000μl: CV ≤ 0.5%, Accuracy ≤ 0.5%

• Reagent Position: 6 reagent racks, reagent tanks with detection

Washing Unit:

• Washer: 2 units

• Washing Head: 16-channel (32-pin), double-row cleaning, hanging installation, with leakage recovery

• Injection Uniformity: CV < 1.5%

• Washing Residual: < 1μl

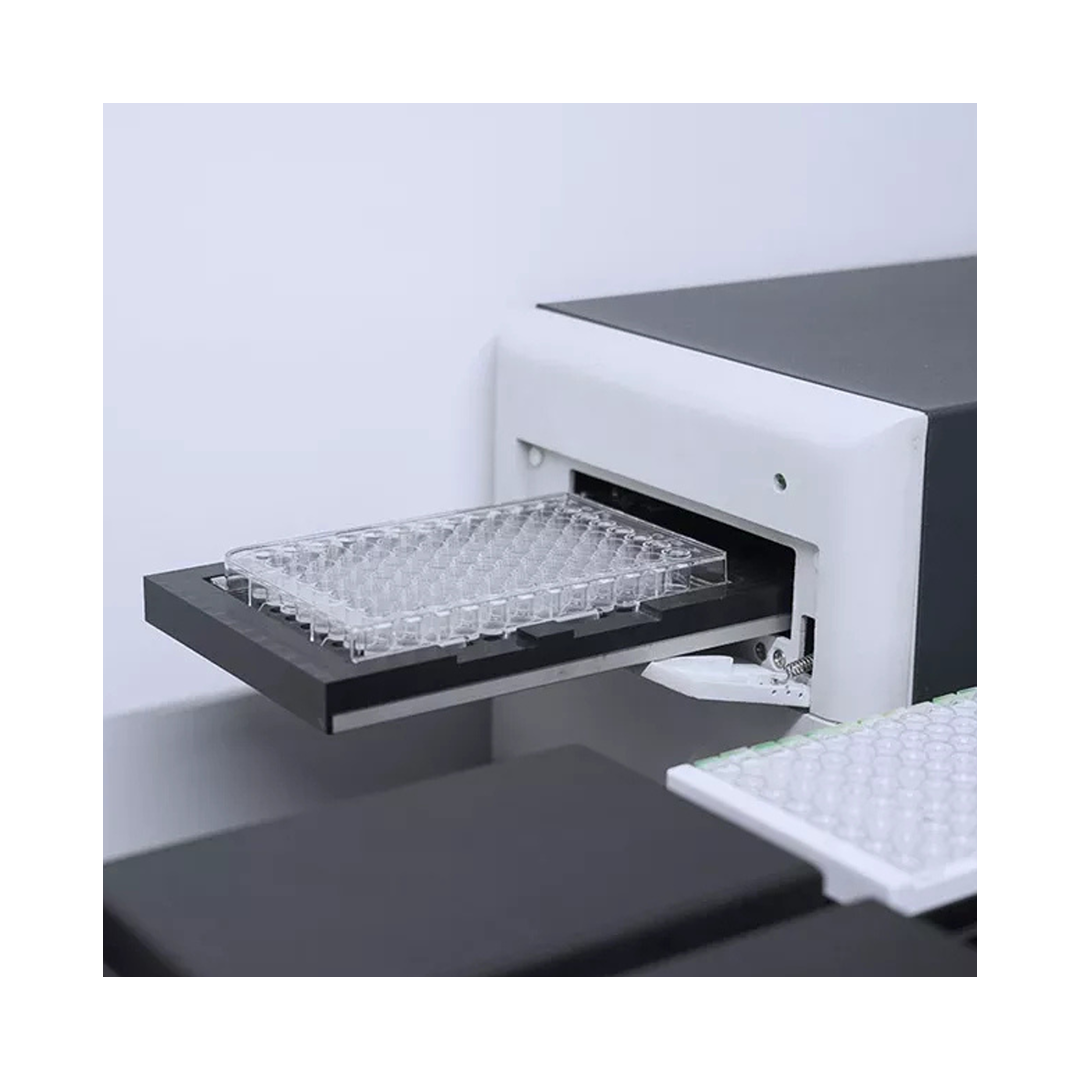

Reading Unit:

• Reading Channels: 8 independent photometric channels, mono and dichromatic reading

• Linear Range: 0.000~3.000 Abs

• Repeatability: CV ≤ 1.0%

• Stability: ≤ ±0.003 Abs

• Optical Filters: 4 standard filters (405, 450, 492, 630nm); total of 10 filter positions

• Reading Accuracy:

  • ≤ ±0.02 Abs from 0.0 to 1.0 OD

  • ≤ ±0.03 Abs from 1.0 to 2.0 OD

• Sensitivity: ≥ 0.01 mg/L

• Channel Difference: ≤ 0.02 Abs

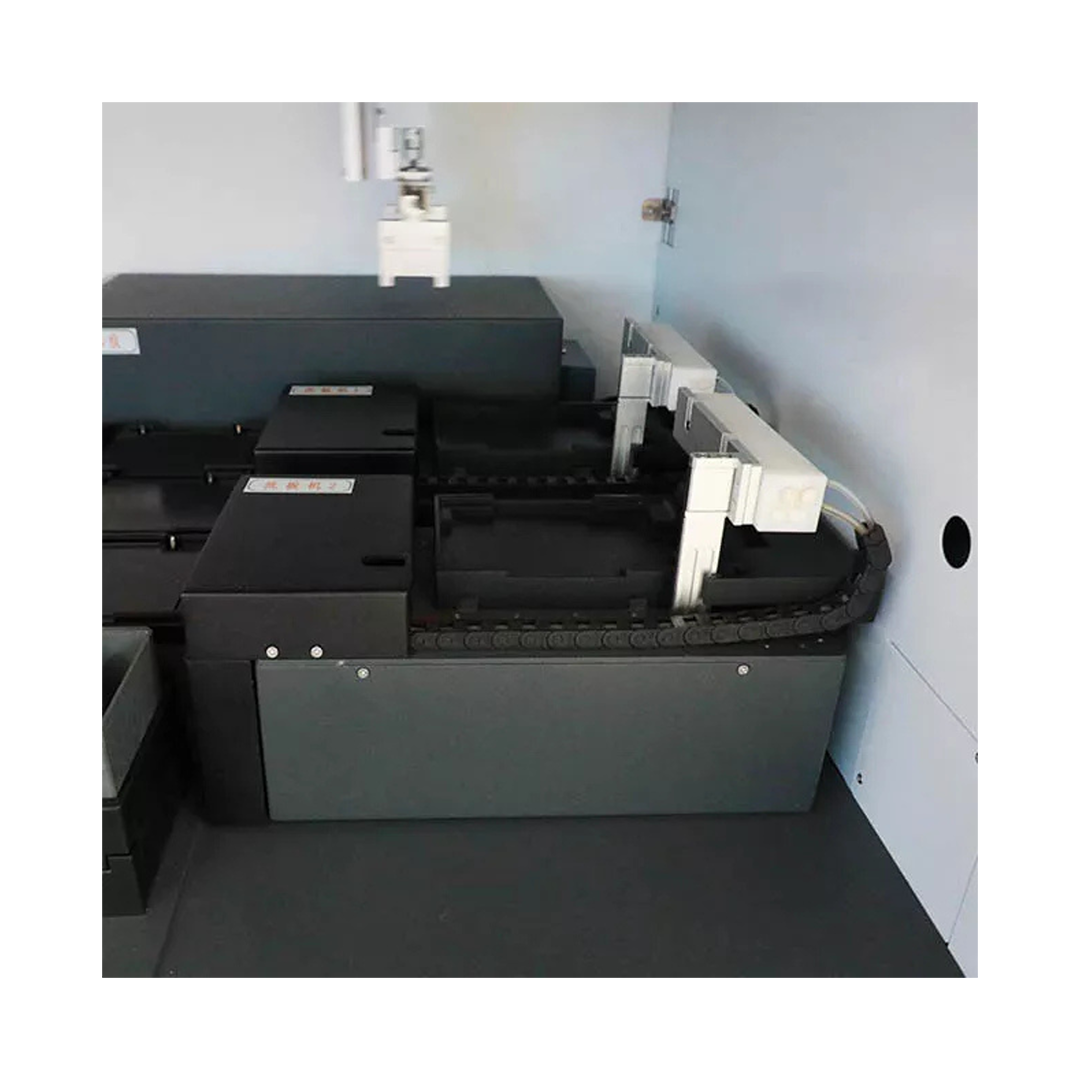

Incubation Unit:

• Incubators: 12 shaking incubators

• Cover Positions: 2 (12 covers)

• Heating Method: Dry heating with cover

• Shaking Function: Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm

• Temperature Range: RT to 60°C

• Temperature Uniformity: 0.5°C

• Temperature Fluctuation: ±0.5°C

Data Management:

• Software: Compatible with Windows 7 or higher

• LIS System: Bi-directional, supports HL7 protocol

• Results: Absorbance and results reviewable by software

• Printer: External optional

• Built-in Scanner: Optional

Other Functions:

• Biosafety Protection: Optional (Negative pressure working zone, HEPA filter)

• Disinfection: UV lamp

• Lighting: LED

• IAP Function: Firmware can be upgraded online at any time

Working Condition:

• Power Supply:

  • AC220V ± 10%, 50/60Hz (Standard)

  • 110V ± 10%, 60Hz (Optional)

• Temperature: 10~40°C

• Humidity: 30~80%

Size & Weight:

• External Size (W * D * H): 1775 * 190 * 1683 mm

• Net Weight: 445 kg

• Package Size (W * D * H) mm:

  • Machine: 1945 * 950 * 1150 mm

  • Base Stand: 1945 * 950 * 995 mm

  • Accessories: 1370 * 930 * 530 mm

• Gross Weight (kg):

  • Machine: 364.5

  • Base Stand: 208.5

  • Accessories: 97
