Model No: SX25-ACI1100
Technical Advantages:

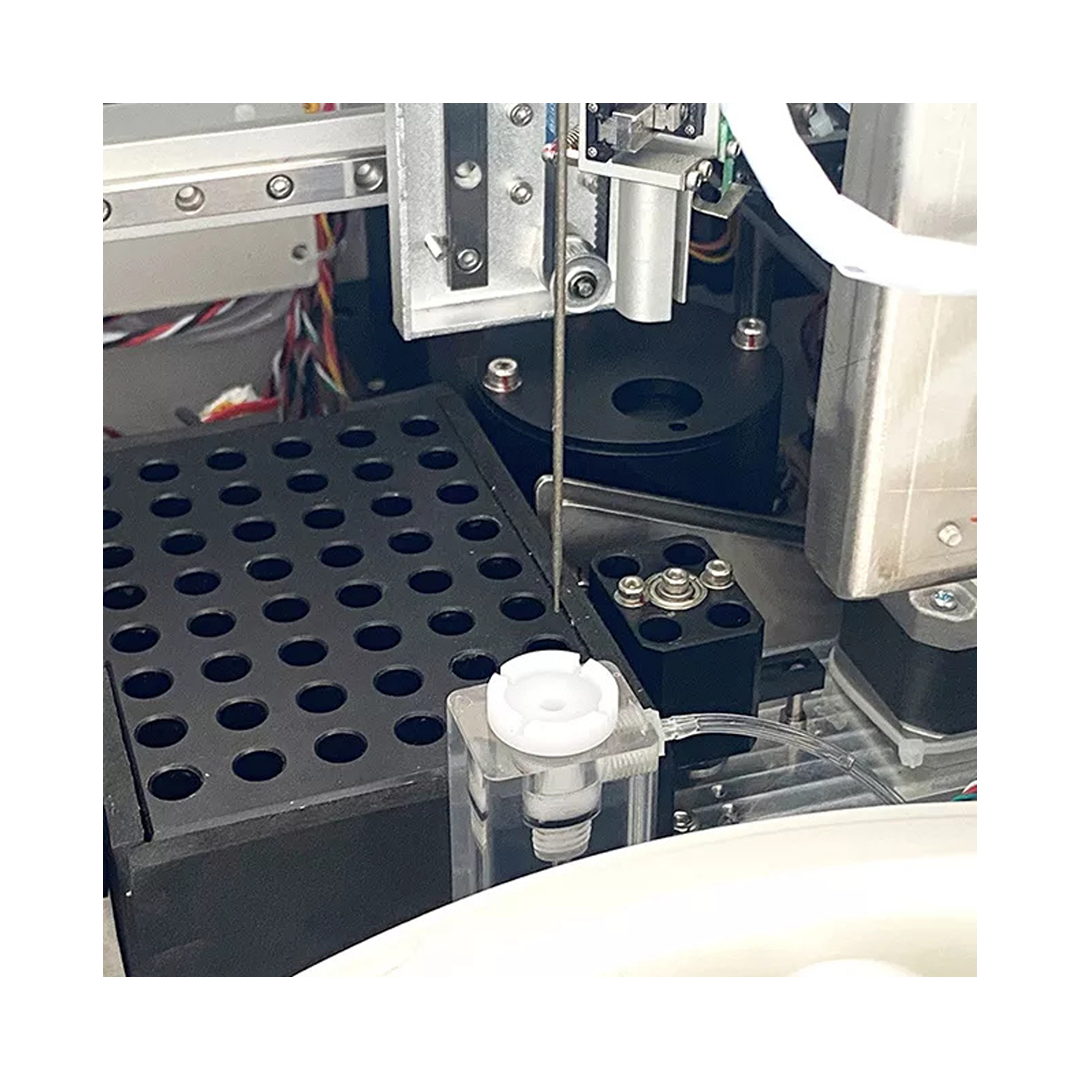

Sample Probe:
Sample integrity control: clot and bubble detection (Optional), level detection.
Needle tip cone-angle design to reduce liquid hanging.
Quantity tracking, intelligent collision avoidance.
Negative pressure washing, cleaning more thoroughly.

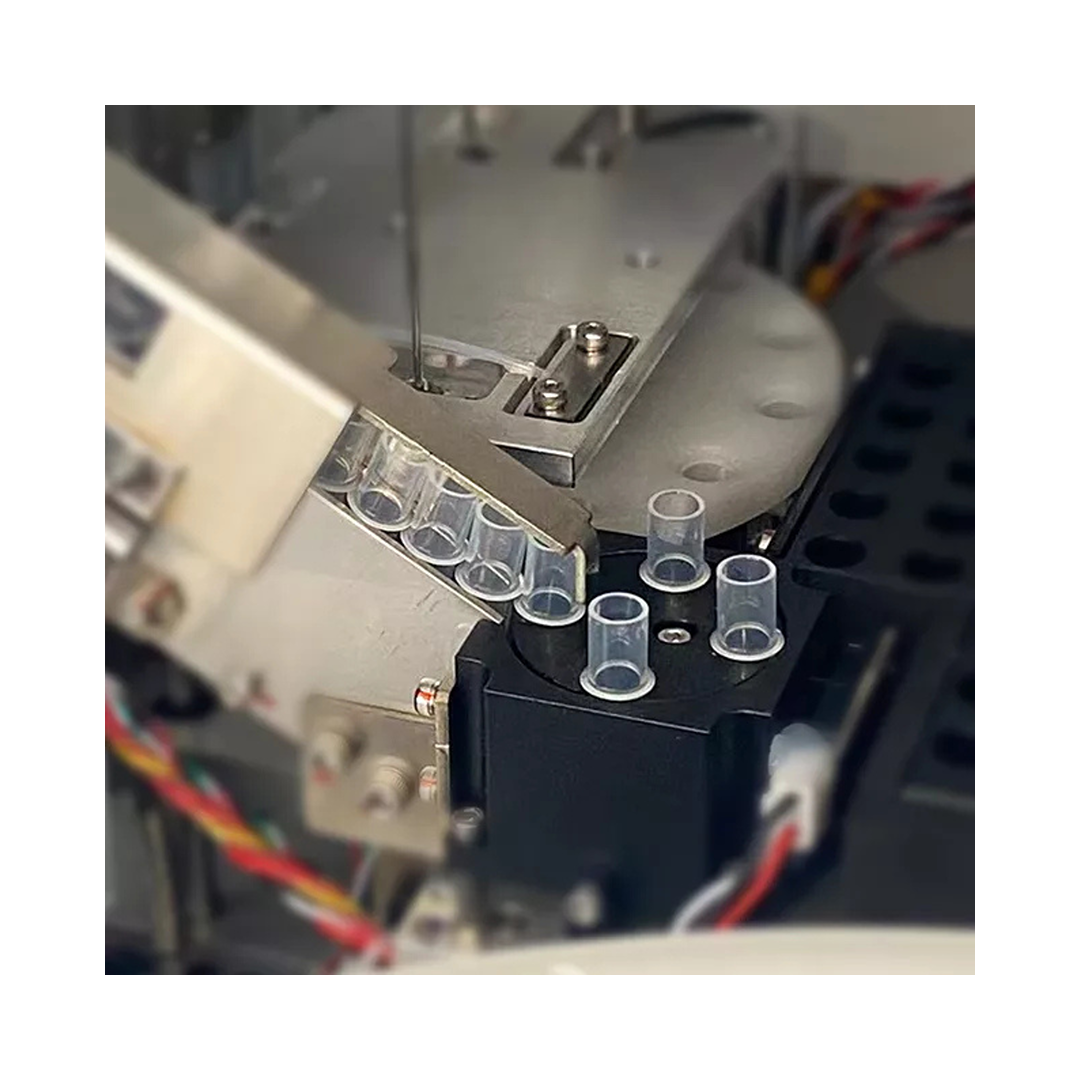

RV Loading Module:
Reaction vessels can be added by pouring, without manual arrangement.

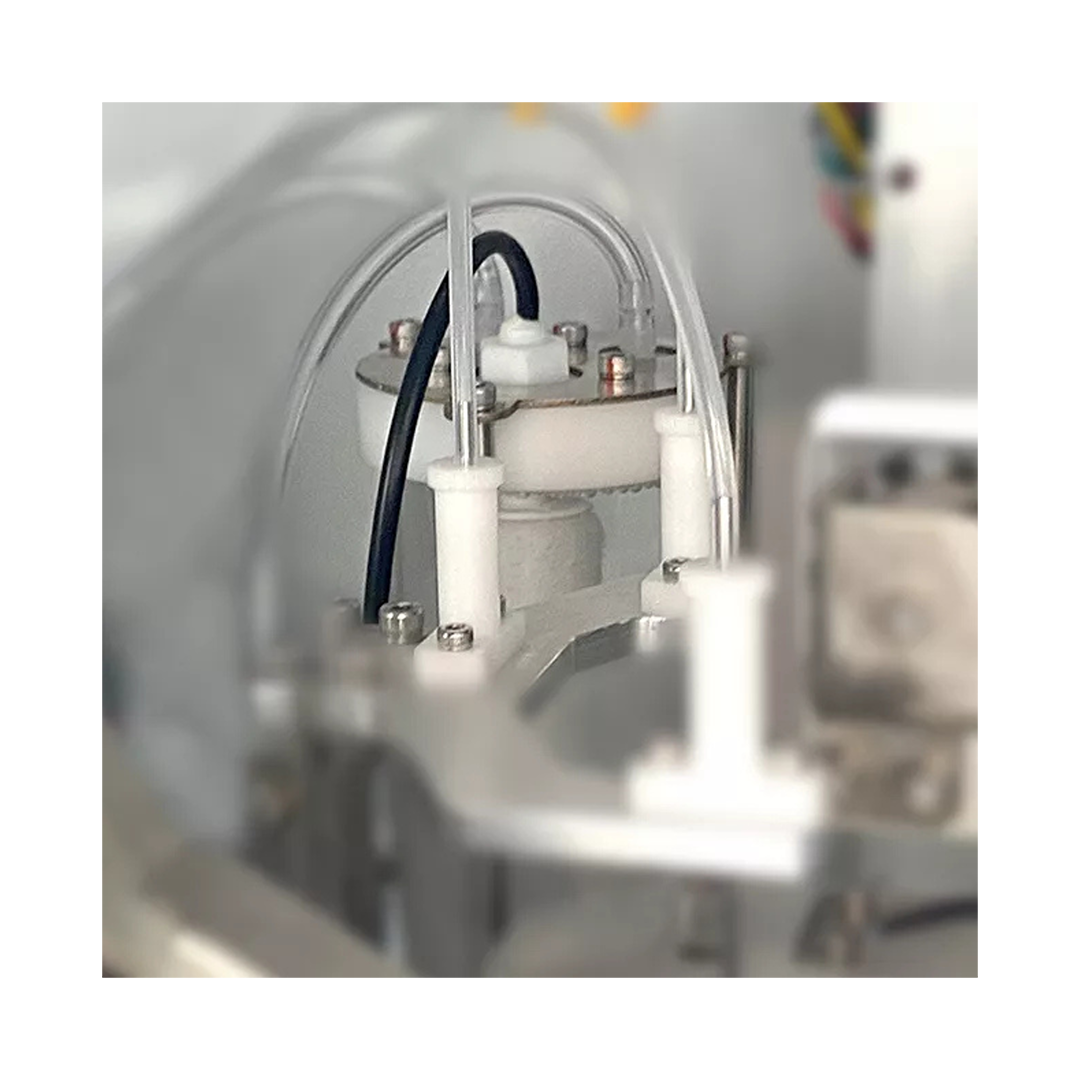

Washing and Mixing Module:
Incubation, cleaning, and testing one-machine design.
Fully enclosed independent incubation system with 58 incubation positions.
12 independent cleaning positions.
Triple magnetic separation cleaning technology is adopted.
Original photon counting dark chamber.

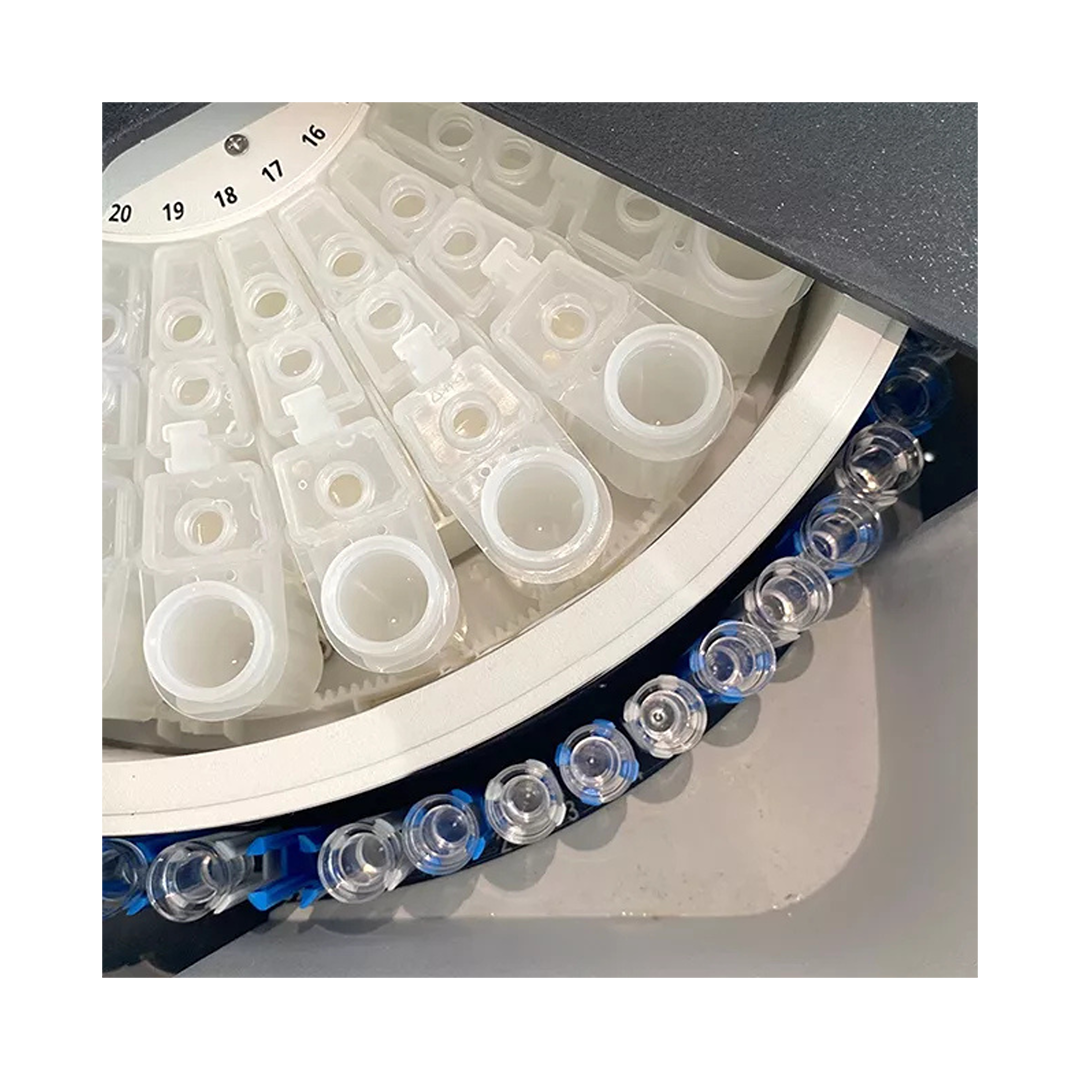

Reagent Tray:
Forced air cooling, maintenance-free.
Up to 25 items can be tested at the same time, and can be replaced at any time.
Remaining liquid detection, real-time alarm.
Support scanning bar code loading.
Sample Tray:
60 sample positions.
Support emergency insertion.
Support blood collection tube, sample vessel loading.
Operating System:
Humanized design software function.
Clear warning of consumables status, adding in advance is more worry-free.
The detection process is updated in real-time, easy to grasp the reporting time.
Fault warning, remote assistance, and active maintenance are more intimate.
| Model | SX25-ACI1100 |
| Throughput | 180T/H |
| Principle | Magnetic particle enzymatic chemiluminescence |
| Modes of Operation | Random, Batch and STAT |
| Separation Method | Magnetic separation technology |
| Sample Positions | 60(Each position could be used as an emergency position) |
| Reagent Positions | 25pcs(2~8℃ refrigeration) |
| Incubation Positions | 58 |
| Time to 1st Result | 18 minutes |
| Sample Volume | 10~200μl |
| Detection Precision | CV≤8% |
| Carry-over Rate | ≤10-5 |
| Correlation Coefficient | r≥0.99 |
| Calibration Stability | 28 days |
| Calibration Type | 6/7-point calibration |
| Software System | Windows 7/8/10, 32 or 64 bit, Bi-direction, support HL7 protocol, Intuitive user interface, intelligent data management |
| Interface | TCP/IP network interface |
| Other Function | Liquid level detection |
| Anti-collision function | |
| Sample barcode scanning | |
| Intelligent alarm prompt | |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| External Size(W*D*H) | 768*771*568mm |
| Net Weight | 90kg |
| Package Size(W*D*H) | 940*840*1105mm |
| Gross Weight | 150kg |
