Automatic Chemiluminescence Immunoassay System SX25-ACI2200

Model No: SX25-ACI2200

Advantages:

1. Operation Module：

Tubular enzymatic chemiluminescence

The max speed of a single machine is 240t/h

Carrying contamination rate<10^-5

High precision: intra-batch precision≤8%

2. Control Module:

Ergonomic design increased operator comfort

0.68 square meters, highly integrated and simplified patented design

Convenient operation: support LIS two-way communication, scan the code to test

Smooth human-computer interaction experience: the touch screen and the frame are integrated into the machine, and all consumables can be loaded online in real time

Reagent Tray:

• Forced air cooling, maintenance-free

• Up to 25 items can be tested at the same time, can be replaced at any time

• Remaining liquid detection, real-time alarm

• Support scanning bar code loading

Operating System:

• Humanized design software function

• Clear warning of consumables status, adding in advance is more worry-free

• The detection process is updated in real-time, easy to grasp the reporting time

• Fault warning, remote assistance, and active maintenance are more intimate

Washing and Mixing Module:

• Incubation, cleaning, and testing one-machine design

• Fully enclosed independent incubation system with 90 incubation positions

• 30 independent cleaning positions

• Triple magnetic separation cleaning technology is adopted

Sample Tray:

• International universal test tube rack, 10 tubes/rack, 6 test tube racks can be placed

• Support emergency insertion

• Support blood collection tube, sample vessel loading

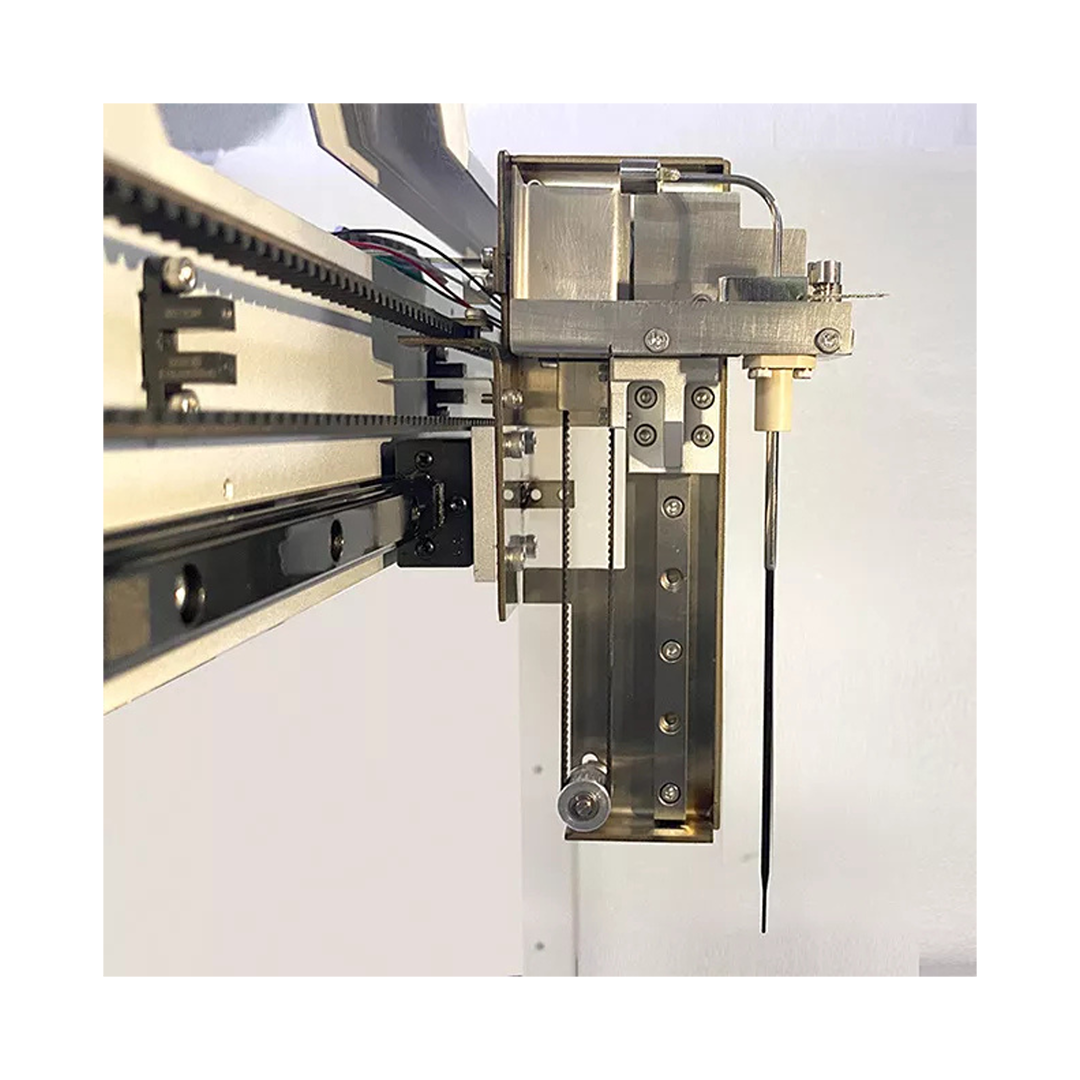

Sample Probe:

• Sample integrity control: level, clot, and bubble detection

• Needle tip cone-angle design to reduce liquid hanging

• Quantity tracking, intelligent collision avoidance

• Negative pressure needle washing, cleaning more thoroughly

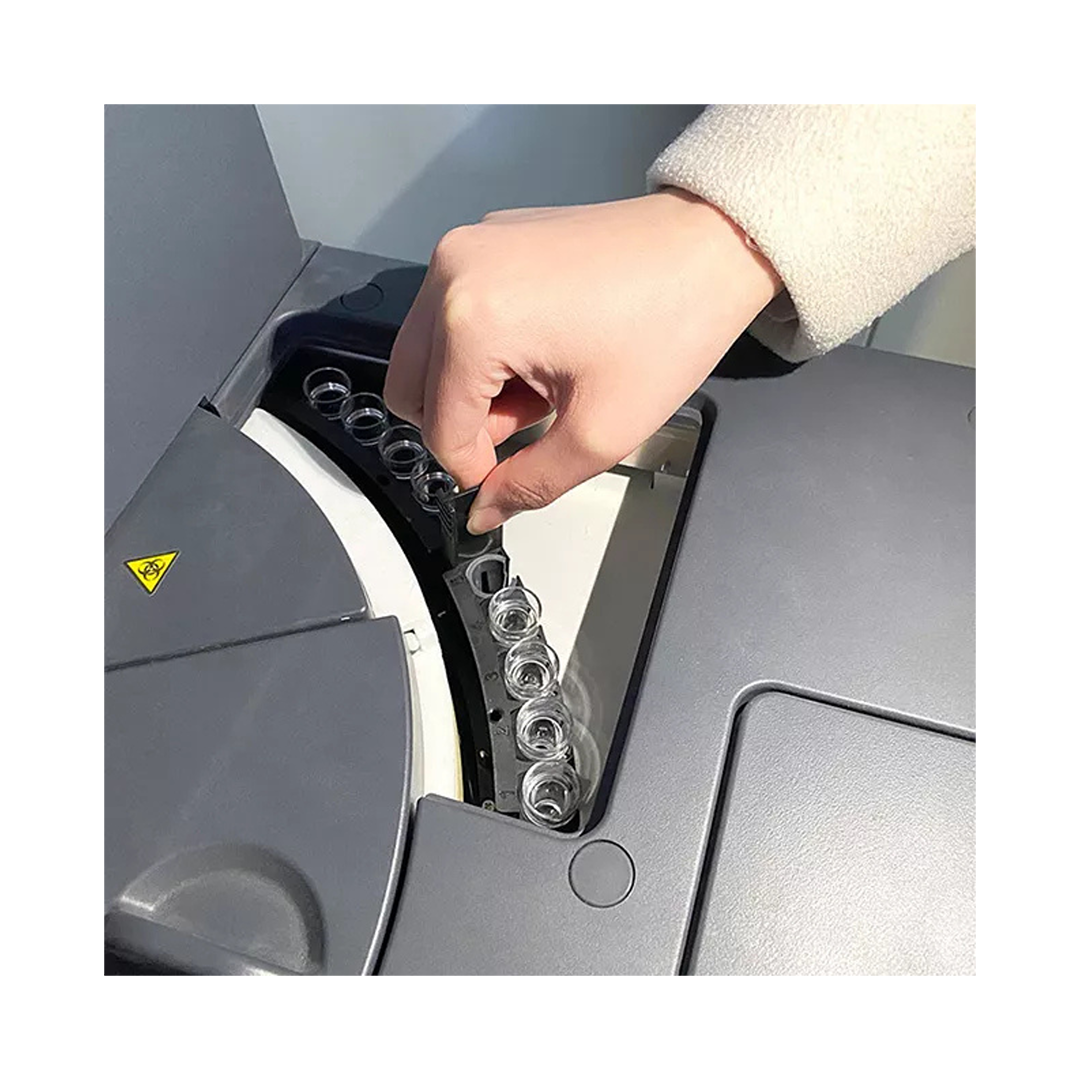

RV Loading Module:

• Reaction vessels can be added by pouring, without manual arrangement

4. Instrument Software Module:

Humanized software functions

Reagent loading and sample operation are convenient and intuitive

Intuitive display of sample status in testing

Support checking experiment results by sample or project

Reagents and consumables status warning

Accurately record the use of reagents for each project

Accurately record the remaining amount of consumables

Timely alarm when the remaining consumables is insufficient

Simple and intuitive quality control process

Convenient addition of quality control experiments

Intuitive display of quality control results

Support various forms of T-P chart and L-J chart

Convenient and flexible maintenance functions

The maintenance program is comprehensive

Individual maintenance work can be flexibly chosen

Daily, monthly and yearly maintenance work is clearly distinguished

Technical Parameters:

Reagent Menu:

• Thyroid: TSH, TT4, TT3, FT4, FT3, TgAb, TPOAb, TG, Anti-TSHR, CT
• Cardiac Marker: cTnI, NT-proBNP, CK-MB, MYO
• Rheumatoid: Anti-ccp, Β2-MG
• Liver Fibrosis: CIV, HA
• Fertility: β-HCG, E2, P, T, PRL, FSH, LH, DHEA-S, SHBG, AMH*
• Anemia: FA, VB12, FERRITIN
• Growth: GH, IGF-I*
• Glycometabolism: INS, C-P, ALD, Pepsinogen
• Hypertension: ACTH, Cortisol, Renin, AⅡ*
• Inflammation: PCT, IL-6
• Tumor Marker: CA125, CA15-3, CA19-9, AFP, CEA, t-PSA, f-PSA, CA72-4, SCC, CA242, CA50, NSE, CYFRA21-1, HE4, ProGRP
• Early Screening: CA125, CA15-3, Free β-HCG, PAPP-A
• Bone Metabolism: BGP, 25-OH-Vit-D, iPTH, PINP*
• Infectious: HBeAb*, HBeAg*, HBcAb*, HBsAb*, HBsAg*, Anti-HBc IgM*, HIV Ag/Ab*, Anti-TP*, Anti-HCV*
