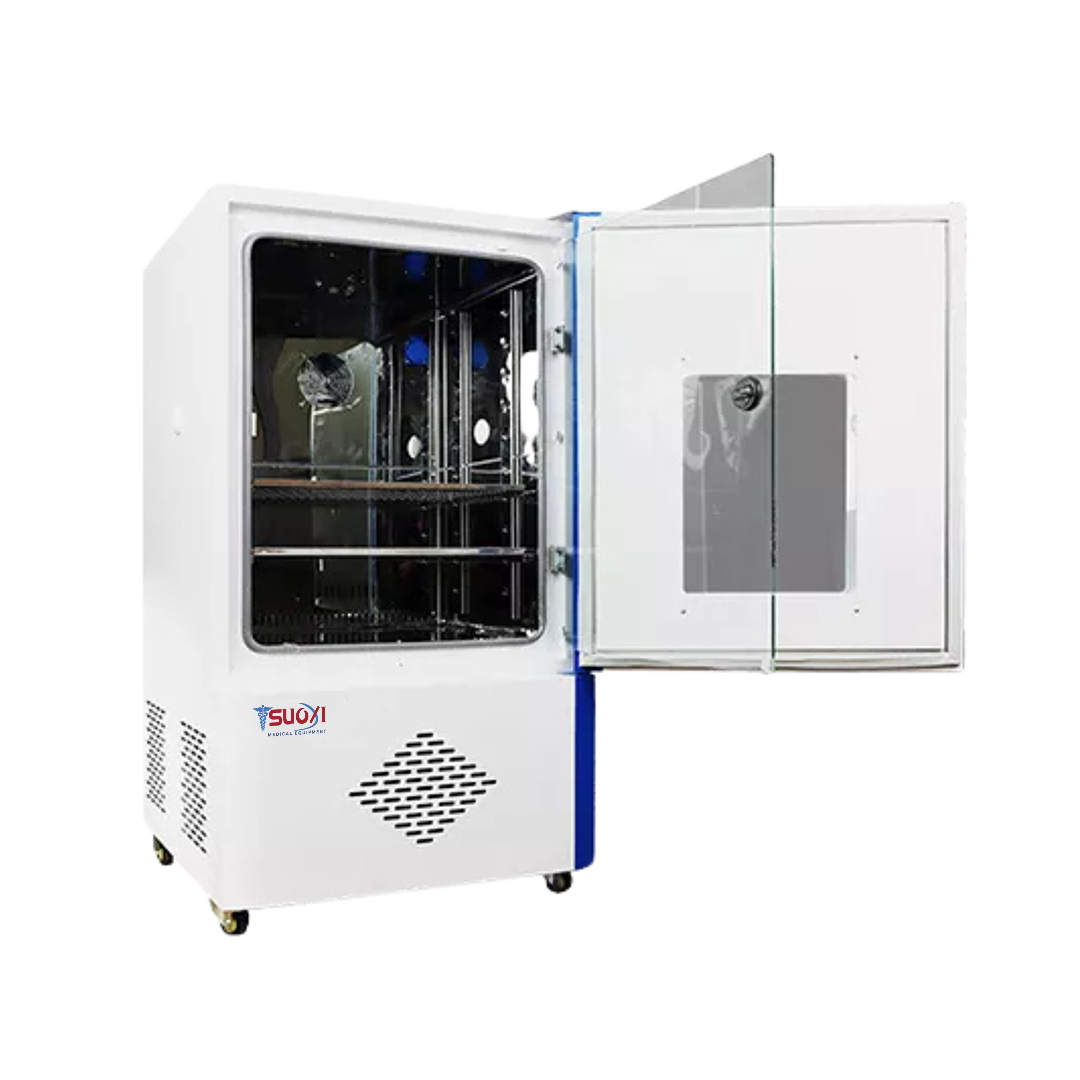

Model No: SX25-Bi100L, SX25-Bi150L, SX25-Bi200L, SX25-Bi250L
Features:
1. Touch screen: 7.0-inch touch screen operation, multiple groups of data one screen display, temperature curve can be viewed.
2. Double glass door design: Adopt double door structure, built-in toughened glass door, outer door to enlarge the perspective window for easy observation.
3. Defrosting design: Evaporator upper and lower plate automatically switch defrosting design, no need to stop defrosting.
4. With limited temperature system, when the studio temperature exceeds the specified temperature, the equipment stops heating function to prevent excessive temperature damage to the instrument.
5. In the working state, the outer door will not affect the normal work of the incubator, the glass door is standard with mechanical door lock, to prevent the glass door arbitrary switch.
Technical Parameters:
| Model | SX25-Bi100L | SX25-Bi150L | SX25-Bi200L | SX25-Bi250L |
|---|---|---|---|---|
| Capacity | 100L | 150L | 200L | 250L |
| Temperature Control Mode | PT100 sensor and PID adjustment | PT100 sensor and PID adjustment | PT100 sensor and PID adjustment | PT100 sensor and PID adjustment |
| Temperature Control Range | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Temperature Display Resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Temperature Fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature Uniformity | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
| Ambient Temperature | 18~30℃ (only suitable for indoor use) | 18~30℃ (only suitable for indoor use) | 18~30℃ (only suitable for indoor use) | 18~30℃ (only suitable for indoor use) |
| Timing Range | 0~999h59min | 0~999h59min | 0~999h59min | 0~999h59min |
| Refrigerant | R134a/270g | R134a/270g | R134a/270g | R134a/270g |
| Disinfection | UV disinfection device can be optional | UV disinfection device can be optional | UV disinfection device can be optional | UV disinfection device can be optional |
| Controller | Programmable 7.0 inch touch screen controller | Programmable 7.0 inch touch screen controller | Programmable 7.0 inch touch screen controller | Programmable 7.0 inch touch screen controller |
| Power Supply | Standard: AC220V, 50/60Hz | Standard: AC220V, 50/60Hz | Standard: AC220V, 50/60Hz | Standard: AC220V, 50/60Hz |
| Optional Power Supply | AC110V, 50/60Hz (External transformer) | AC110V, 50/60Hz (External transformer) | AC110V, 50/60Hz (External transformer) | AC110V, 50/60Hz (External transformer) |
| Rated Power | 1200W | 1400W | 1500W | 1500W |
| Shelves | 469*319mm, 2pcs, can be optional | 519*372mm, 2pcs, can be optional | 569*409mm, 3pcs, can be optional | 630*408mm, 3pcs, can be optional |
| Standard Accessories | Printer, BOD waterproof socket, Shelf2, Test port2 | Printer, BOD waterproof socket, Shelf2, Test port2 | Printer, BOD waterproof socket, Shelf2, Test port2 | Printer, BOD waterproof socket, Shelf2, Test port2 |
| Optional Accessories | USB interface, UV disinfection device, Shelf | USB interface, UV disinfection device, Shelf | USB interface, UV disinfection device, Shelf | USB interface, UV disinfection device, Shelf |
| Internal Size (WDH) mm | 500350580 | 550401690 | 600450750 | 660450850 |
| External Size (WDH) mm | 6446471170 | 6906921270 | 7427431340 | 8027431440 |
| Package Size (WDH) mm | 7907951350 | 8158171335 | 8808801520 | 9458801720 |
| Net Weight (kg) | 105 | 120 | 130 | 145 |
| Gross Weight (kg) | 117 | 135 | 150 | 165 |
