Chicken Isolator SX25-CI-I

Model No: SX25-CI-I

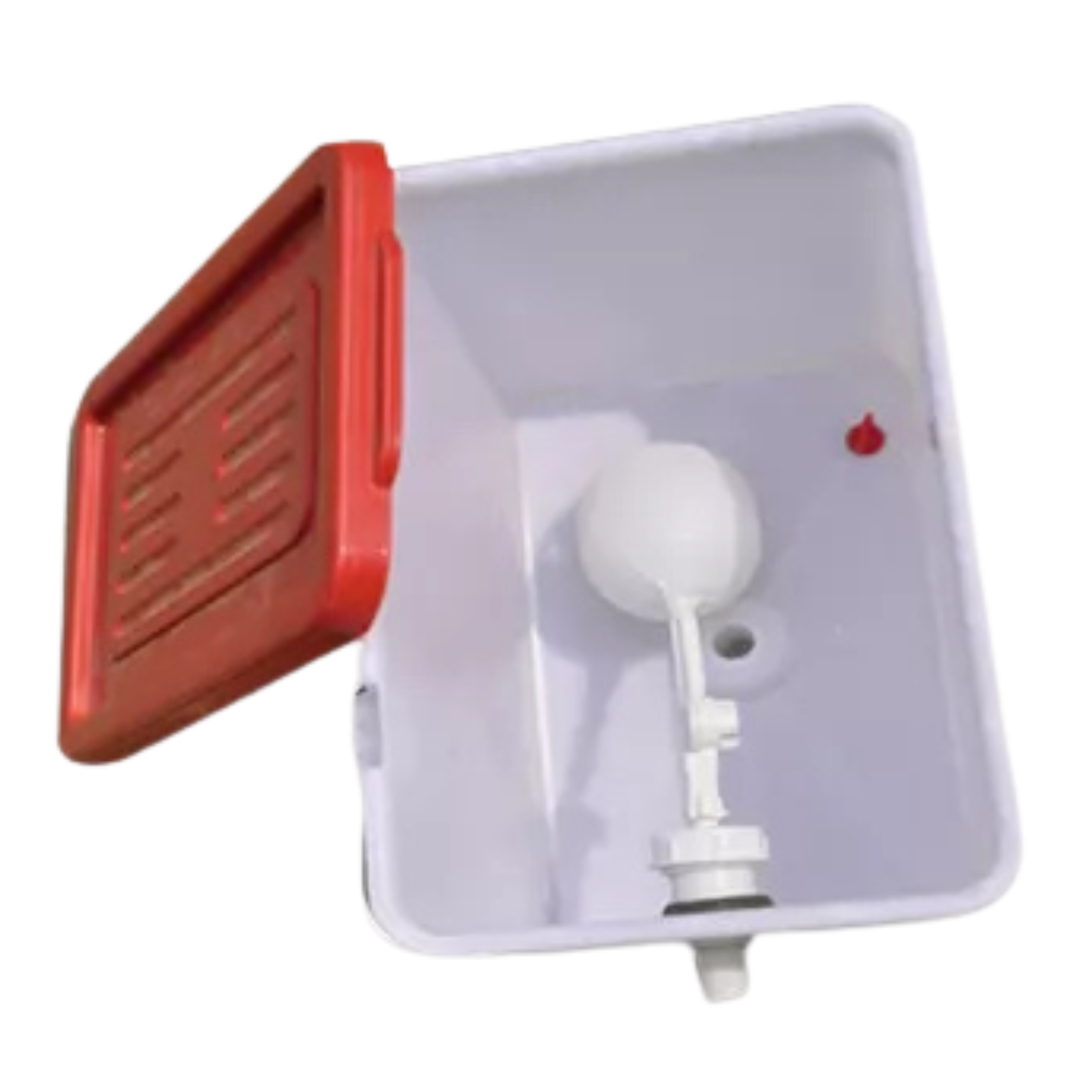

Automatic Water Supply System
Includes an adjustable-height drinking tank for convenient water access.
Special Sealing Design
Ensures excellent airtight performance to maintain a controlled environment.
Dual-Sided Operation
Chickens can be handled safely via built-in gloves on both sides of the isolator.
Premium 304 Stainless Steel Construction
Durable and corrosion-resistant, equipped with high-quality components such as butyl gloves and HEPA filters.
Multi-Layer Filtration System
Provides full protection for animals, the environment, and operators.

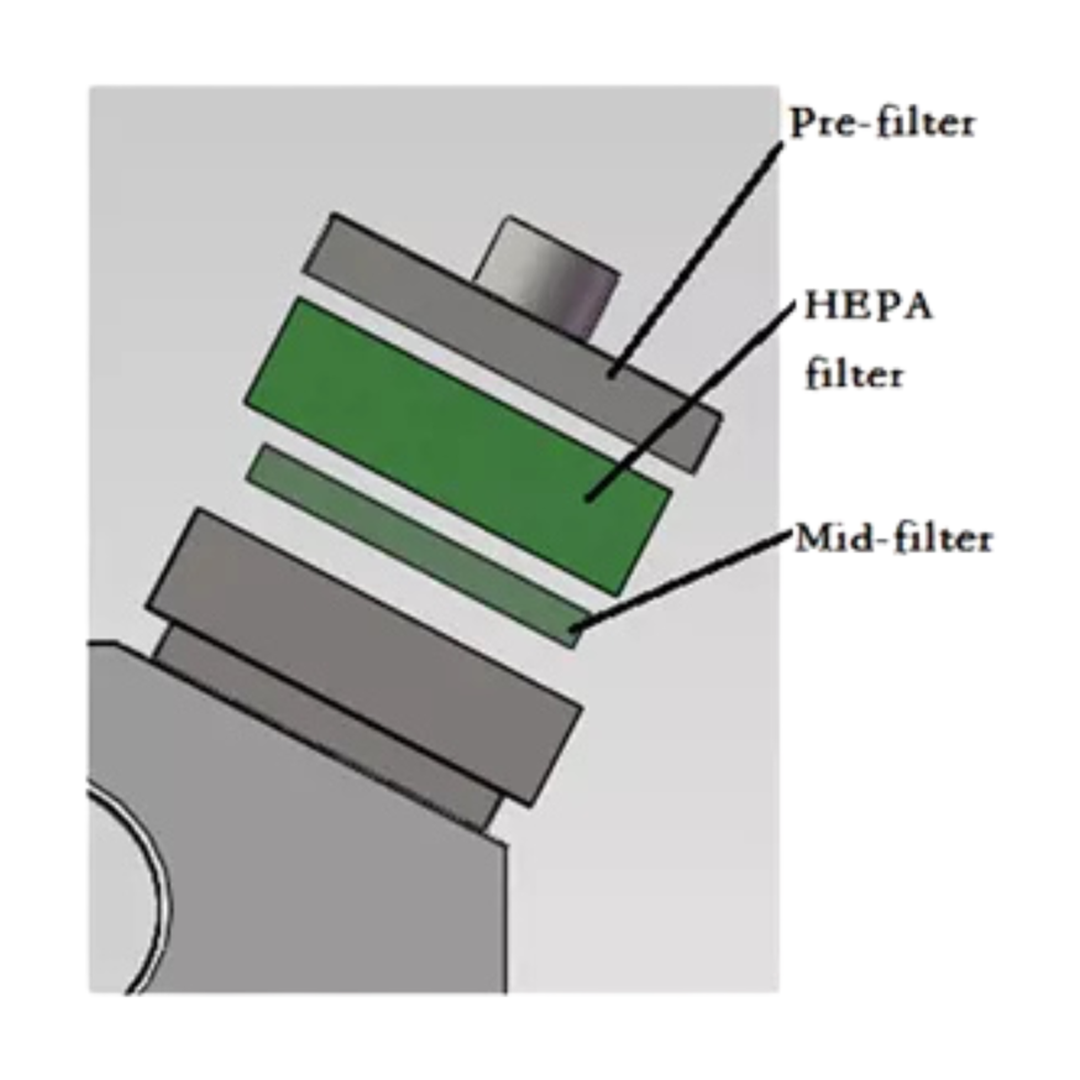

Filtration Path: Pre-filter → Main HEPA filter → Filter cotton
Three Sterilization Options
- UV Lamp for routine disinfection
- Reserved Port for Steam Sterilization
- Reserved Port for Disinfectant Spray Sterilization
Efficient Waste Management System
Features a unique defecation system with a fecal leakage shelf. Waste falls onto a disposable collection film, which can be easily removed and replaced—minimizing cleaning frequency and effort.
Sealing Plate at Glove Ports
Inner glove ports are fitted with sliding sealing plates to securely close the openings when not in use.
Safe Heating Lamp Design
High-temperature-resistant lamp holders with protective covers prevent accidental contact by animals, ensuring safety and reliability.

Parameter	Specification
Model	SX25-CI-I
External Dimensions (W×D×H)	2200 × 850 × 1800 mm
Animal Activity Area (W×D×H)	1600 × 750 × 820 mm
Waste Collection Area (W×D×H)	1600 × 750 × 250 mm

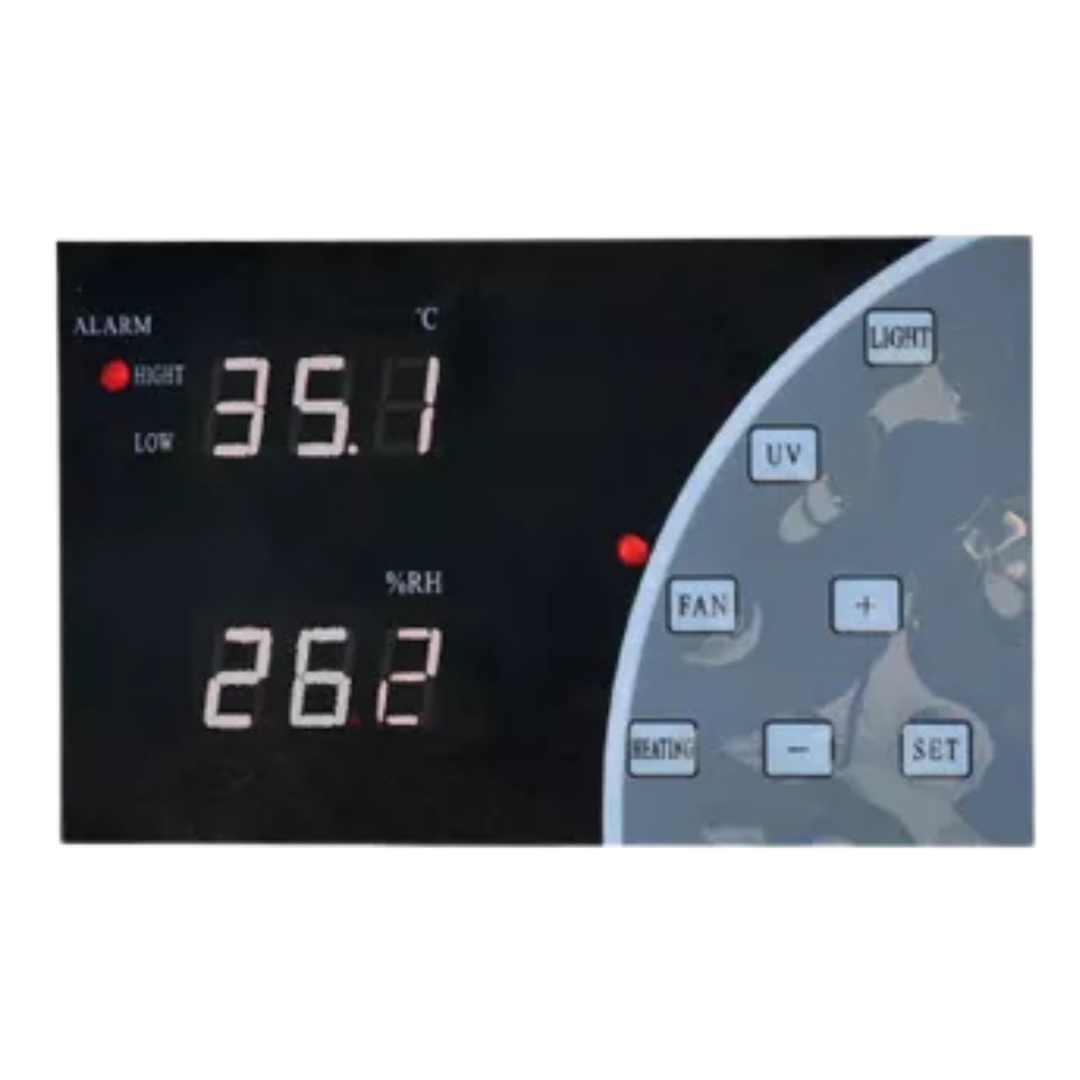

Display	LED display showing temperature and humidity (adjustable from 10–50℃) Equipped with fluorescent lamp, UV lamp, heating lamp, and fan control button
Air Change Rate	≥ 20 times/hour
Airflow Velocity	0.1 – 0.2 m/s (within chicken living space)
Falling Bacteria Count	0 (numbers/utensil/hour)
Filtration System	Pre-filter, Mid-filter, HEPA (H14) filter
Noise Level	≤ 70 dB(A)
Alarm System	High and low temperature alarms

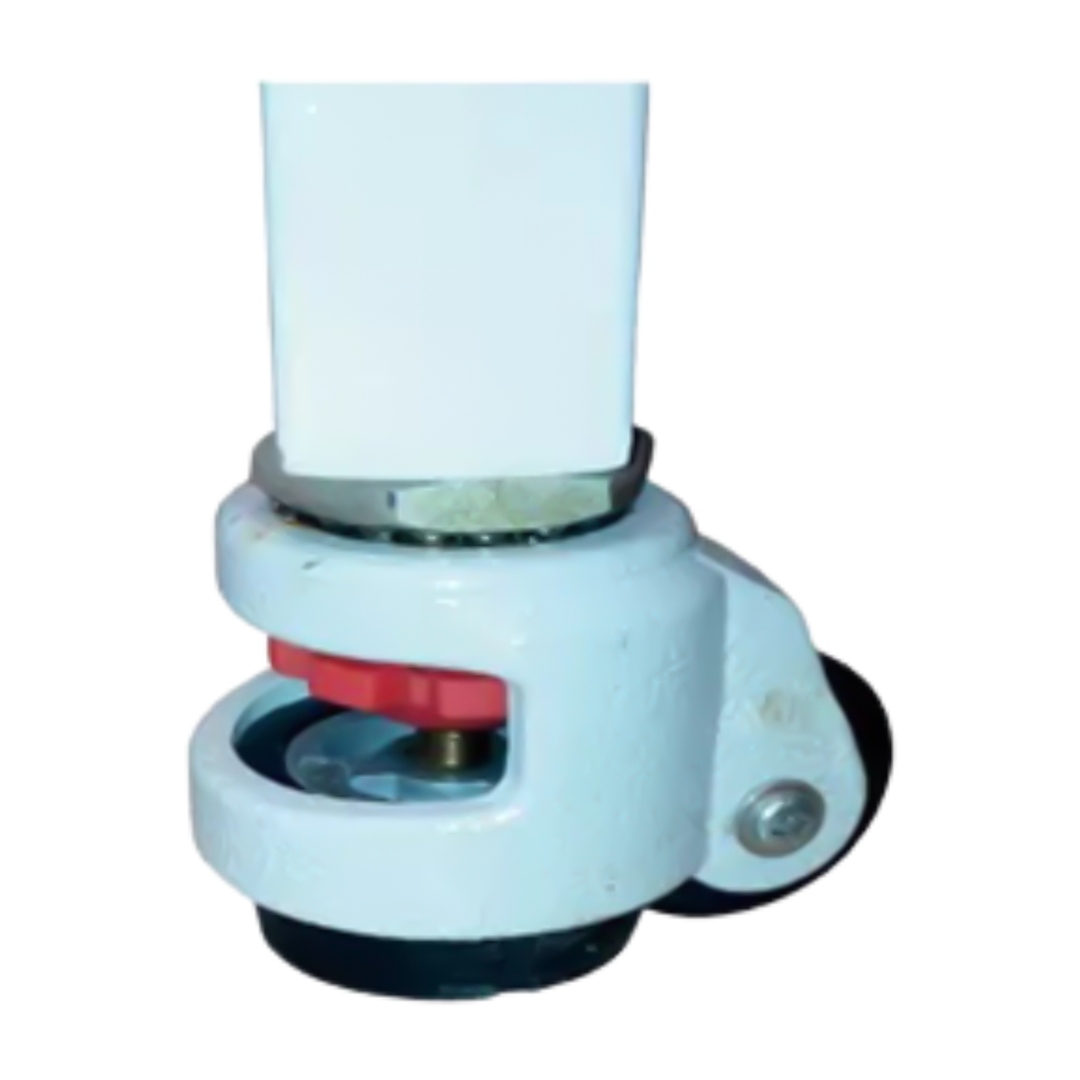

Mobility	Universal casters with brake and leveling feet
Rated Power Supply	AC 220V ±10%, 50/60Hz AC 110V ±10%, 60Hz (optional)
Rated Power Consumption	700 W
Gross Weight	279 kg
Package Dimensions (W×D×H)	2430 × 1010 × 2070 mm
Standard Accessories	Pre-filters ×2, HEPA filters ×2, Mid-filters ×2, UV lamp ×1, Heating lamps ×2, High-quality butyl gloves ×6 pairs, Feeding and drinking system
