Model No: SX25-CI-BSC1, SX25-CI-BSC-2, SX25-CI-BSC-3, SX25-CI-BSC-5
Features
-

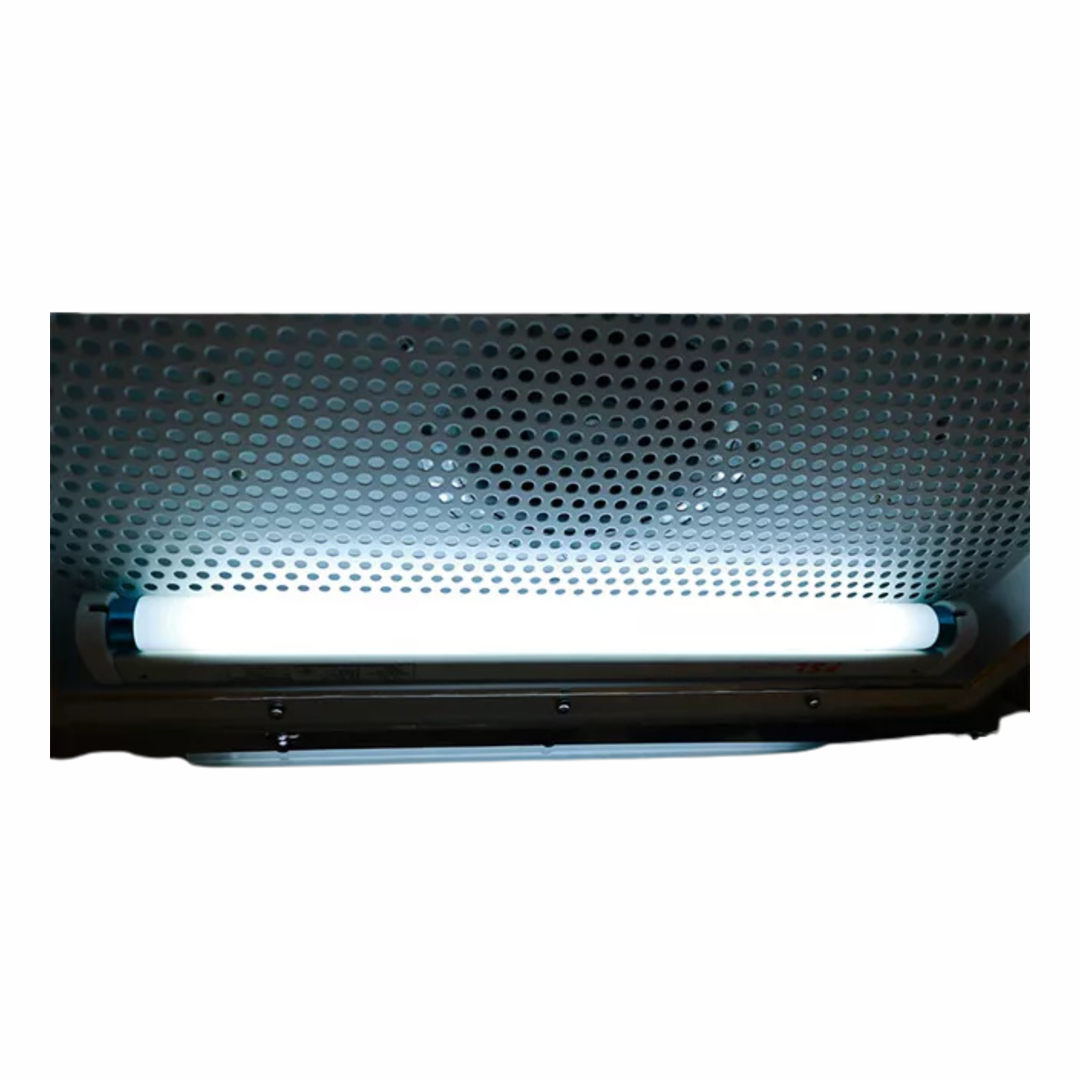

UV Lamp for Effective Sterilization
Built-in UV lamp ensures thorough disinfection of the workspace, reducing the risk of contamination. -

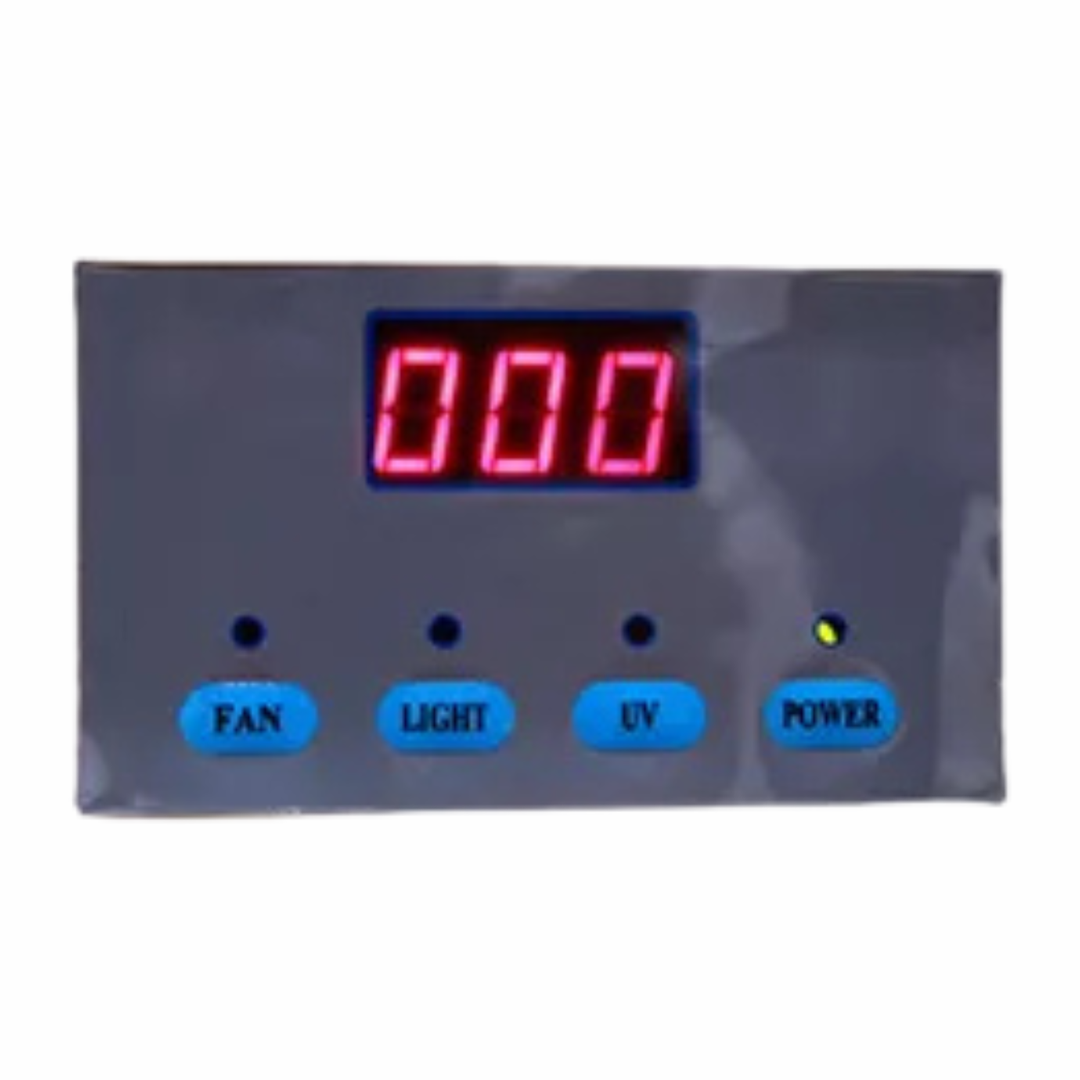

Soft Touch Control Panel with LCD Display
(Available only on SX25-CI-BSC-3)
User-friendly interface for easy operation and real-time monitoring of cabinet status. -
Energy-Efficient & Low Noise Design
Engineered for high performance with minimal energy consumption and quiet operation, enhancing the laboratory environment. -
Power-Failure Memory Function
Automatically restores previous working conditions after a power outage, ensuring uninterrupted workflow. -
One-Piece 304 Stainless Steel Work Surface
Durable, corrosion-resistant surface is easy to clean and maintain, supporting high hygiene standards. -
Stable Airflow System
Delivers consistent laminar airflow for reliable protection of personnel, products, and the environment.
Technical Parameters – SX25-CI-BSC Series Biological Safety Cabinets
| Model | SX25-CI-BSC-1 | SX25-CI-BSC-2 | SX25-CI-BSC-3 | SX25-CI-BSC-5 |
|---|---|---|---|---|
| External Size (W×D×H) | 550 × 395 × 730 mm | 700 × 550 × 900 mm | 900 × 713 × 1250 mm | 1100 × 697 × 1900 mm |
| Internal Size (W×D×H) | 540 × 385 × 440 mm | 680 × 540 × 500 mm | 800 × 635 × 600 mm | 968 × 625 × 630 mm |
| HEPA Filter | 99.9995% efficiency @ 0.3 μm | Same | Same | Same |
| Airflow Velocity | >0.3 m/s | 0.75~1.0 m/s | >0.3 m/s | 0.75~1.0 m/s |
| Noise Level | ≤60 dB | ≤55 dB | ≤60 dB | ≤67 dB |
| Illuminating Lamp | 4W × 1 (LED) | 8W × 1 (LED) | 8W × 1 (LED) | 12W × 2 (Fluorescent) |
| UV Lamp | 15W × 1 | 20W × 1 | 20W × 1 (with timer & UV life display) | 20W × 1 |
| UV Wavelength | 253.7 nm for effective decontamination | |||
| Power Consumption | 150 W | 160 W | 400 W | 350 W |
| Work Surface Height | — | — | — | 750 mm |
| Caster | — | — | — | Universal Caster |
| Main Body Construction | PMMA | Cold-rolled steel with antibacterial powder coating | Same | Same |
| Work Table Material | 304 Stainless Steel | Same | Same | Same |
| Power Supply | AC220V ±10%, 50/60Hz; Optional: 110V, 60Hz | |||
| Standard Accessories | LED lamp, UV lamp × 2 | Same | Same | Fluorescent lamp, UV lamp × 2, Base Stand |
| Optional Accessories | — | — | — | Electric height adjustable base stand |
| Gross Weight | 38 kg | 68 kg | 147 kg | 185 kg |
| Package Size (W×D×H) | 710 × 550 × 950 mm | 870 × 720 × 1170 mm | 1060 × 870 × 1440 mm | 1260 × 860 × 2080 mm |
