Model No: SX25-CIII-BSC-1100X, SX25-CIII-BSC-1500X
Feature:
Power-Failure Memory Function
Automatically restores previous operating conditions after a power interruption, ensuring uninterrupted workflow.
Effective UV Sterilization
Integrated UV lamp provides reliable disinfection of the work area, minimizing the risk of contamination.
Ergonomic Design
The angled front panel supports a comfortable working posture, reducing operator fatigue during extended use.
Advanced Air Filtration System
Exhaust air is double-filtered through high-efficiency ULPA filters with a typical filtration efficiency of 99.9995% for particles ≥ 0.12 μm, ensuring maximum safety for personnel and the environment.

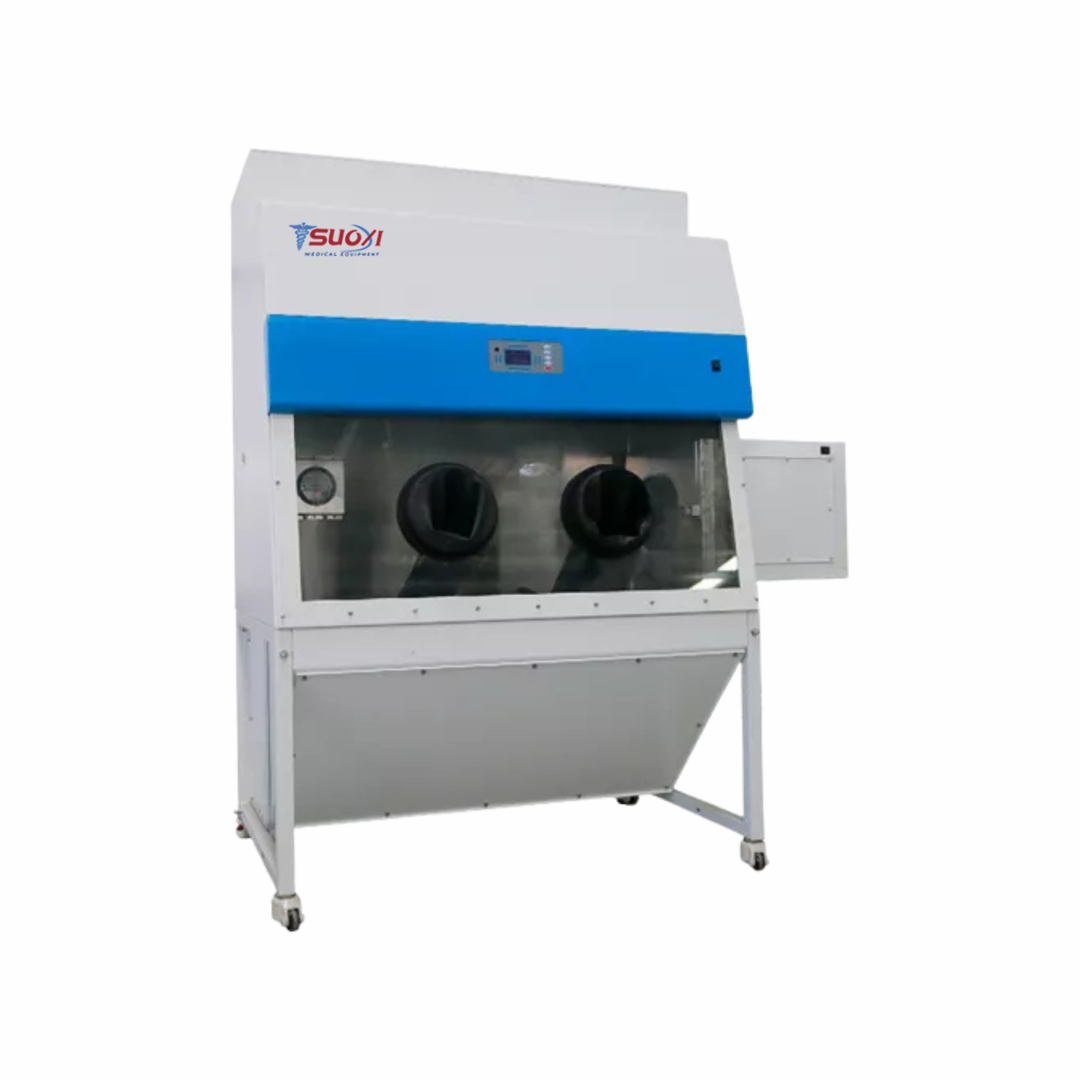

Technical Parameters – SX25-CIII-BSC-1100X / 1500X Class III Biosafety Cabinets
| Specification | SX25-CIII-BSC-1100X | SX25-CIII-BSC-1500X |
|---|---|---|
| External Size (W × D × H) | 1540 × 880 × 2000 mm | 1790 × 880 × 2080 mm |
| Internal Size (W × D × H) | 910 × 650 × 660 mm | 1165 × 650 × 660 mm |
| Pass Box Size | Internal: 430 × 330 × 355 mm External: 575 × 425 × 495 mm | Same |
| Gloves | One pair of 800 mm butyl rubber gloves | Same |
| Front Window | 8 mm toughened glass, UV-resistant | Same |

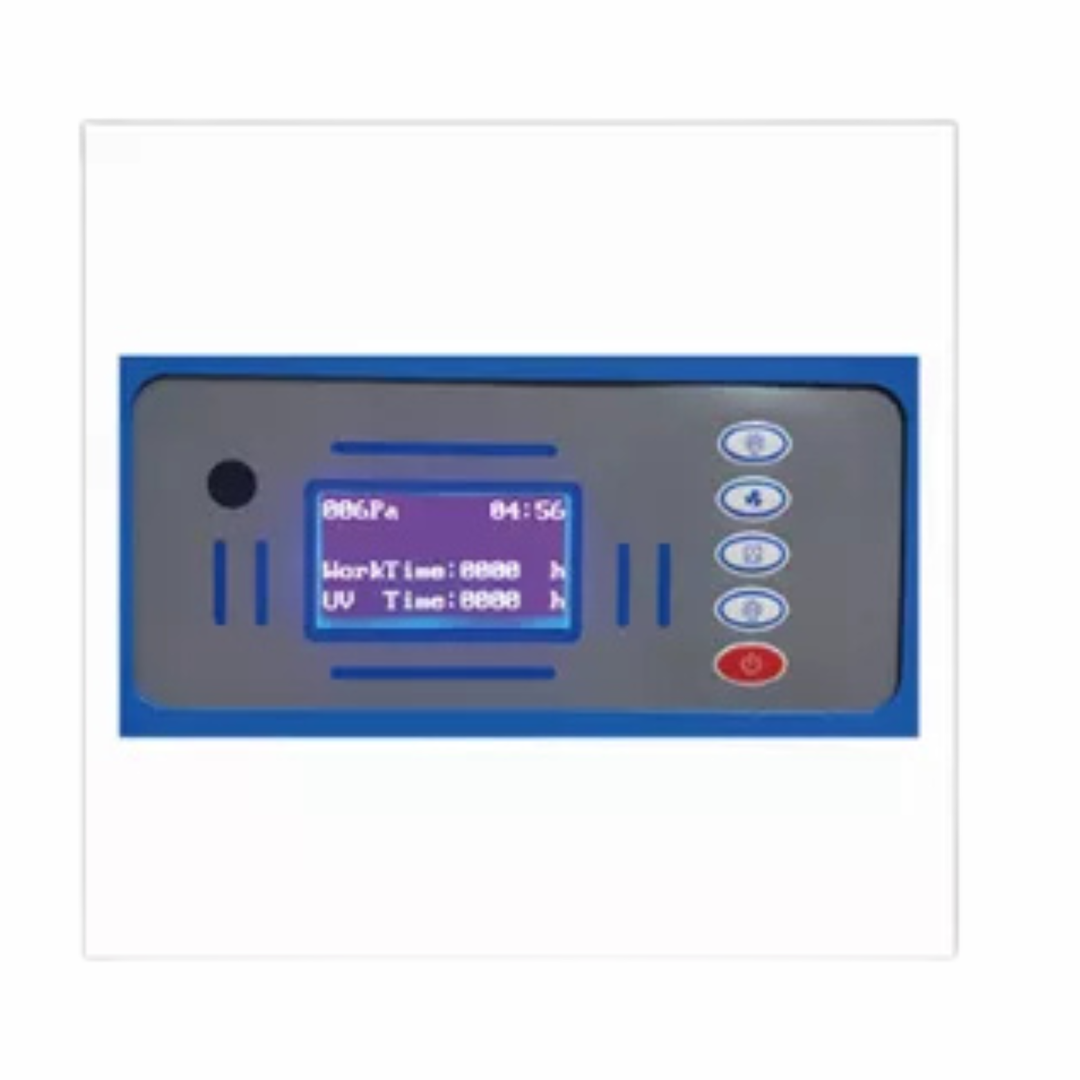

| Display | LCD Display | Same |
| Pre-Filter | Polyester fiber, washable | Same |

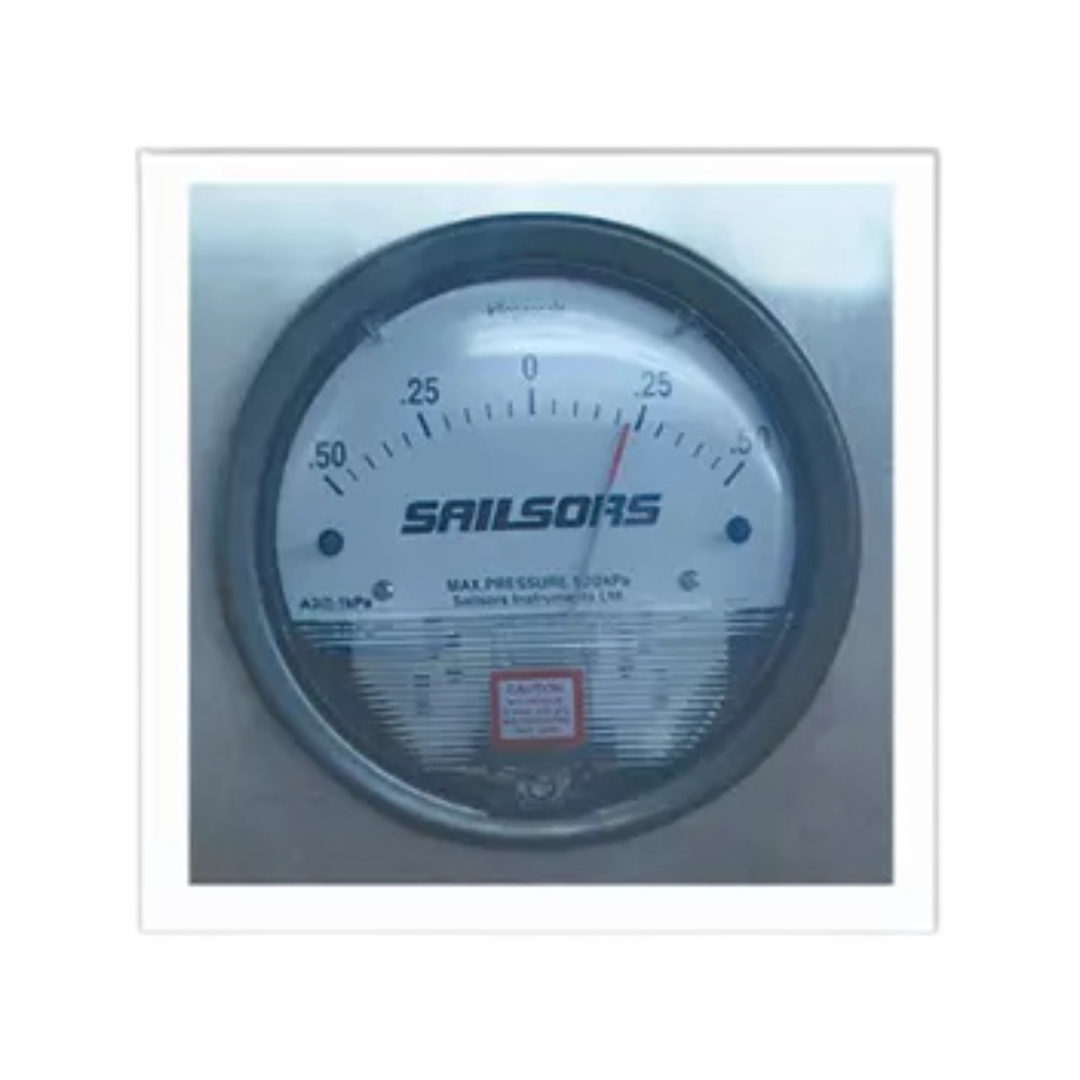

| Internal Pressure | Negative pressure ≥ 120 Pa | Same |
| ULPA Filters | Air Supply Filter: 99.9995% @ 0.12 μm 1st Exhaust Filter: 99.9995% @ 0.12 μm 2nd Exhaust Filter: 99.9995% @ 0.12 μm | Same |
| Noise Level | ≤ 67 dB | Same |
| Alarm System | Audio & visual: abnormal pressure, filter replacement | Same |
| Work Zone Material | 304 Stainless Steel | Same |
| Illumination | ≥ 1000 Lux | Same |
| Power Consumption | 1200 W | 1300 W |
| LED Lighting | 12 W × 2 | 16 W × 2 |
| UV Lamps | 18 W × 2 + 8 W × 1 | 30 W × 2 + 8 W × 1 |
| UV Wavelength | 253.7 nm for optimal decontamination | Same |
| Power Supply | AC220V ±10%, 50/60 Hz; Optional 110V ±10%, 60 Hz | Same |
| Gross Weight | 350 kg | 450 kg |
| Package Size (W × D × H) | 1635 × 1065 × 2160 mm | 1890 × 1065 × 2250 mm |
Standard Accessories
