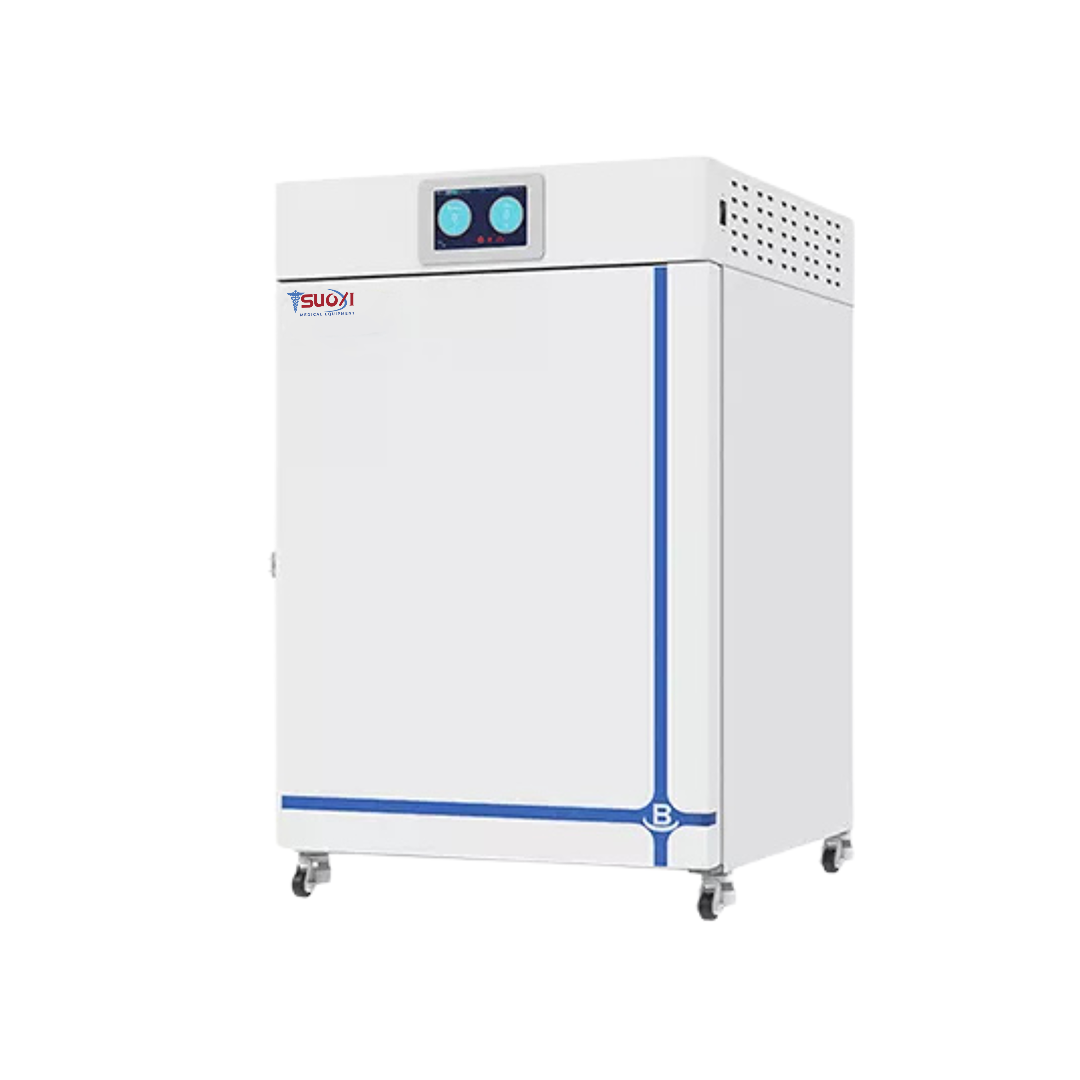

Model No: SX25-DHCO2i-80L, SX25-DHCO2i-160L
Features:
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. The inner tank is designed with semicircular corners and the surface is made of 304 mirror finish stainless steel.
3. Adopt da ouble heating module, six side heating.
4. The cavity is uniformly heated by silicone rubber heating wire heater with aluminum foil-wrapped, offering rapid temperature rise and good uniformity.
5. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
Technical Parameters:
| Model | SX25-DHCO2i-80L | SX25-DHCO2i-160L |
|---|---|---|
| Type | Dry heat CO2 incubator, air jacket | Dry heat CO2 incubator, air jacket |
| Sterilization Type | 140℃ dry heat sterilization | 140℃ dry heat sterilization |
| Capacity | 80L | 160L |
| Temp. Sensor | PT100 | PT100 |
| Temp. Range | 5~30℃ | 5~30℃ |
| Temp. Fluctuation | ±0.3℃(@37℃) | ±0.3℃(@37℃) |
| Temp. Uniformity | ±0.5℃(@37℃) | ±0.5℃(@37℃) |
| Temp. Precision | 0.1℃ | 0.1℃ |
| Timing Range | 0~999h or continuous | 0~999h or continuous |
| Display | 7-inch touch screen | 7-inch touch screen |
| CO2 Control | IR infrared sensor with calibration certificate | IR infrared sensor with calibration certificate |
| CO2 Range | 0~20vol% | 0~20vol% |
| CO2 Uniformity | 0.2vol% | 0.2vol% |
| CO2 Control Resolution | 0.1vol% | 0.1vol% |
| Ambient Temperature and Humidity | Ambient Temperature: 5~30℃ (Recommendation: 25±2℃) Ambient Humidity: ≤80% | Ambient Temperature: 5~30℃ (Recommendation: 25±2℃) Ambient Humidity: ≤80% |
| Filter | CO2 gas filter | CO2 gas filter |
| Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz (External transformer) Wiring Method: plug | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz (External transformer) Wiring Method: plug |
| Consumption | 650W(During cultivation) 1900W(During dry heat sterilization) | 700W(During cultivation) 1950W(During dry heat sterilization) |
| Shelves | 2pcs, adjustable | 2pcs, adjustable |
| Standard Accessories | Shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter | Shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter |
| Optional Accessory | Three-way connector | Three-way connector |
| Internal Size (WDH) | 400352576mm | 460551646mm |
| External Size (WDH) | 6205961007mm | 7107861107mm |
| Package Size (WDH) | 7207201140mm | 8109001255mm |
| Net Weight | 90kg | 110kg |
| Gross Weight | 110kg | 135kg |
