Model No: SX25-D700FH
Features:
-
Folding acrylic front window, with a free stop function on the lower part.
-

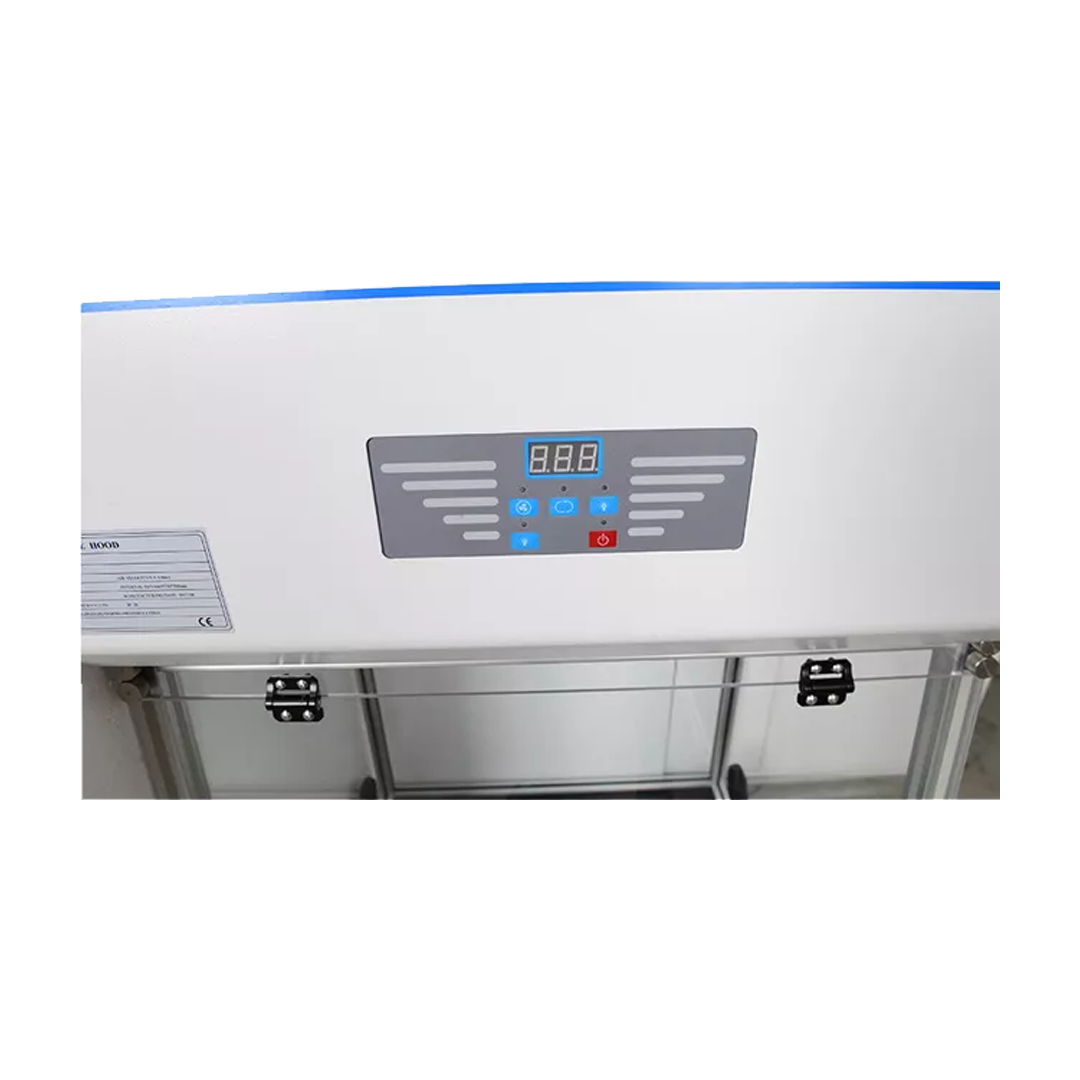

Microprocessor control system, featuring an LED display.
-
Memory function in case of power failure, ensuring data retention.
-

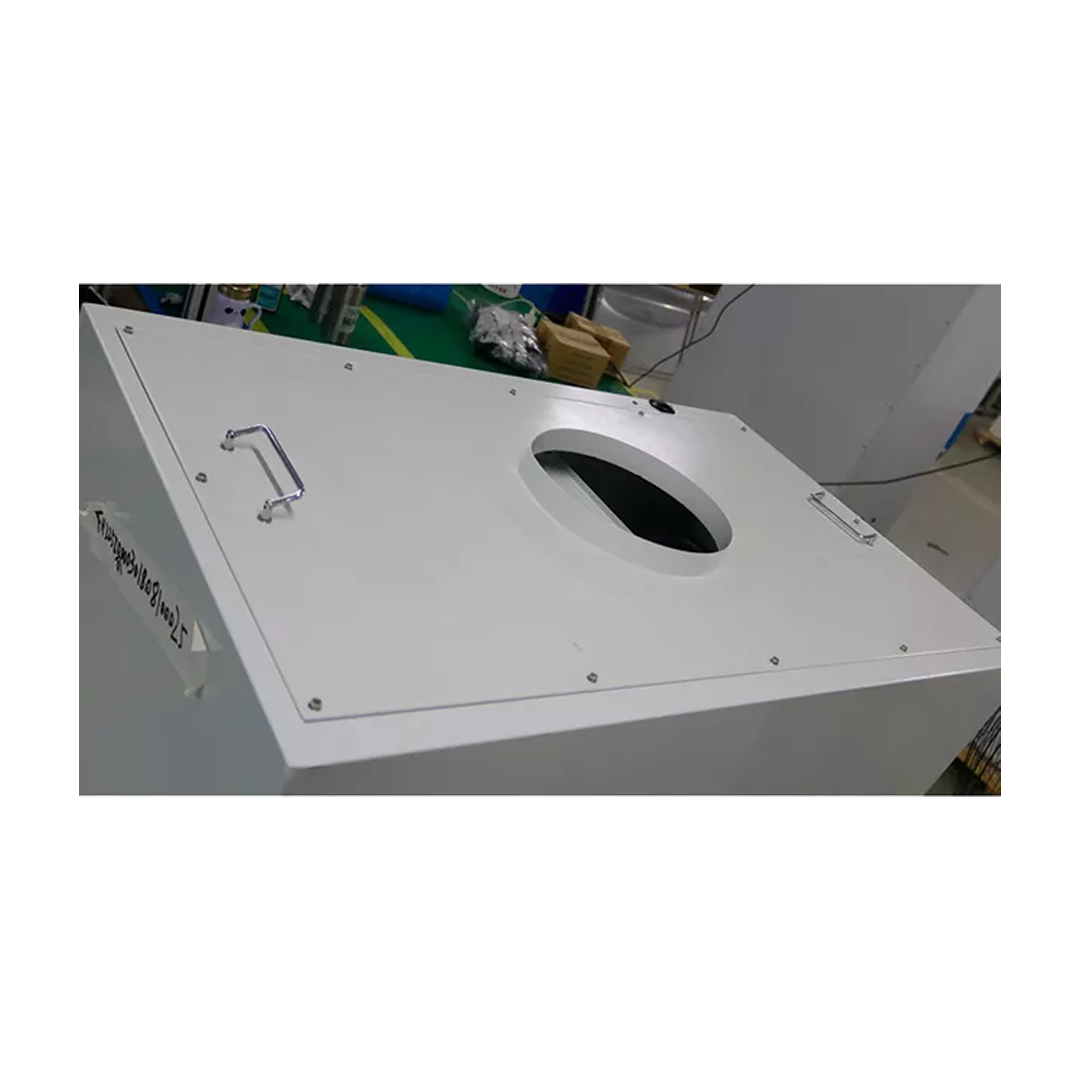

Built-in centrifugal blower for efficient ventilation.
-
Interlock function: UV lamp and blower, LED lamp (only available when UV lamp is chosen).
Note: Experiments involving strong acids, alkalis, flammable, or explosive substances should not be conducted with this type of fume hood.
Technical Parameters:
| Model |
SX25-D700FH |
| External Size(W*D*H) |
700*620*1150mm |
| Internal Size(W*D*H) |
640*550*700mm |
| Max Opening |
660mm |
| Air Velocity |
0.3~0.8m/s |
| Noise |
≤65dB |
| LED Lamp |
4W*2 |
| Blower |
Built-in centrifugal blower, Speed adjustable |
| Front Window |
Folding acrylic window, down part with free stop function |
| Material |
Main Body |
1.0mm cold-rolled steel with bacteria power coating |

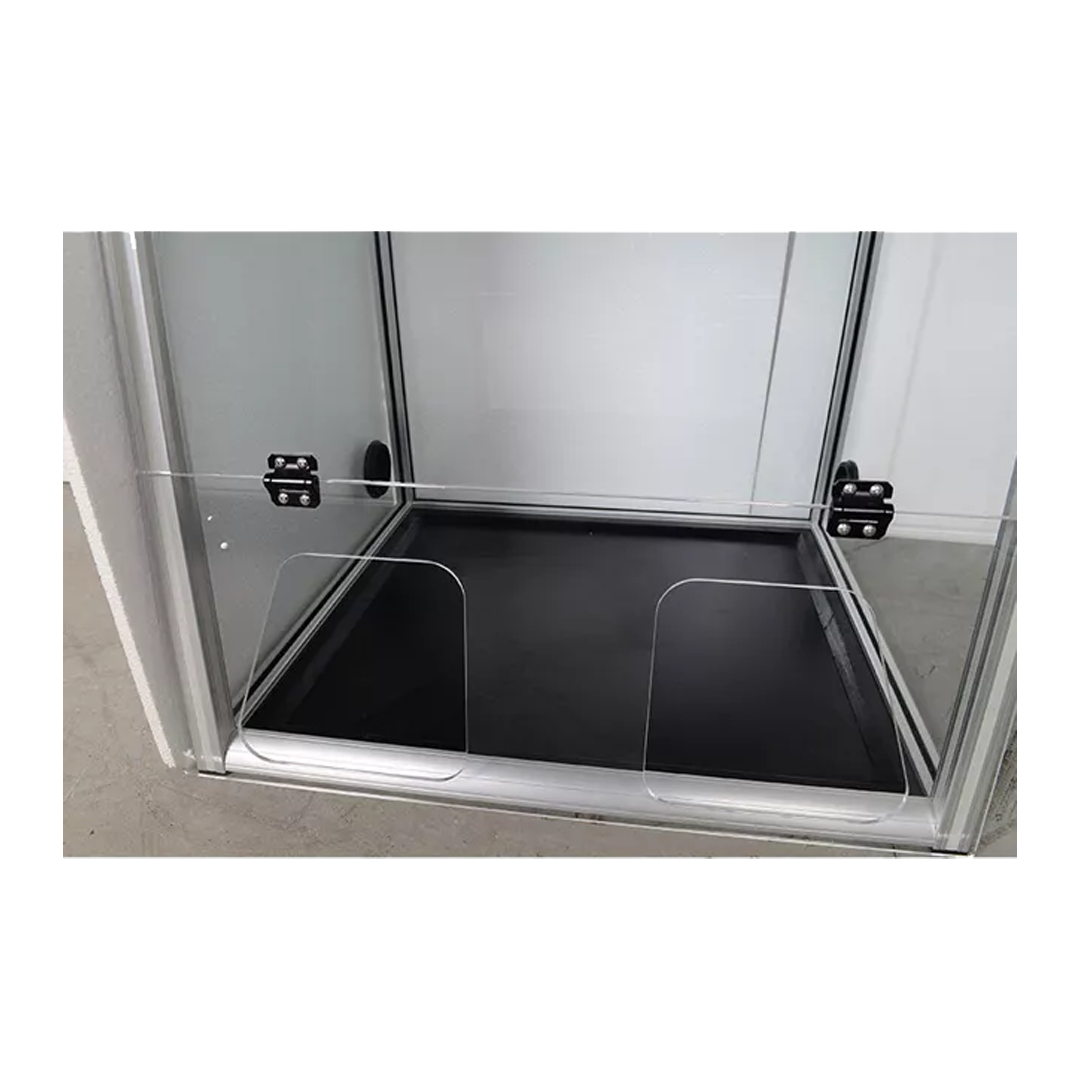

| Work Table |
Chemical resistant phenolic resin |

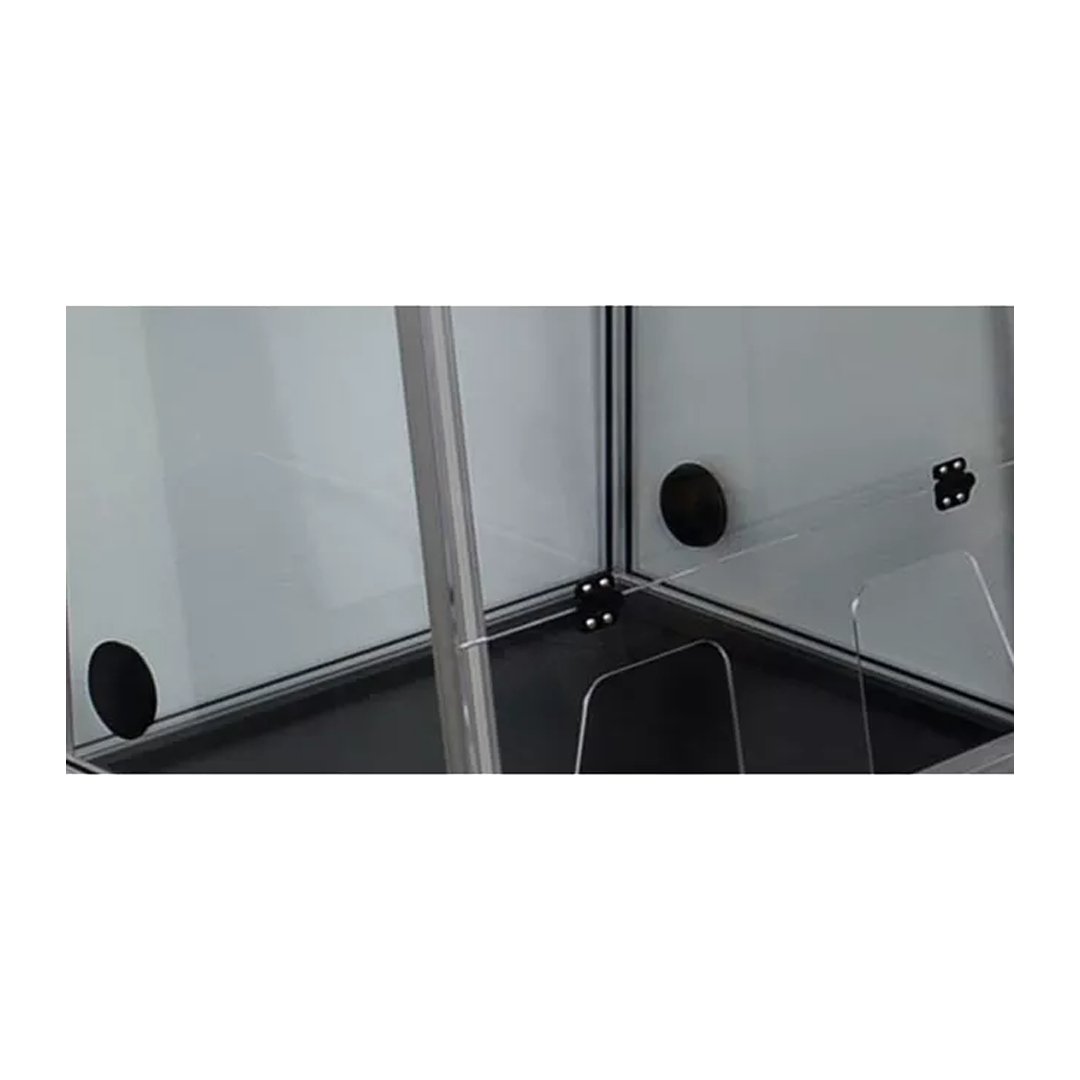

| Back&Side Windows |
5mm toughened glass |
| Consumption |
200W |
| Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory |
LED lamp, Active carbon filter, Blower, 4.3 meters PVC exhaust duct, Pipe strap |
| Optional Accessory |
15W UV lamp, HEPA filter, Base stand |
| Gross Weight without Base Stand |
100kg |
| Gross Weight with Base Stand |
115kg |
| Package Size without Base Stand(W*D*H) |
840*760*1400mm |
| Package Size with Base Stand(W*D*H) |
840*960*1400mm |
