Model No: SX25-DFH1000(X), SX25-DFH1200(X), SX25-DFH500(X), SX25-DFH1800(X)
Features:
-
UV lamp for sterilization.
-
Motorized front glass window.
-
Resistant to weak acid and alkali.
-
Adjustable air speed: 9 levels.
-
Alarm when filter working time reaches 3500 hours.
-
Memory function to restore settings in case of power failure.
-
Back-side air compensation to prevent turbulence in the work area.
-
Ergonomic 8° slope front design for a fatigue-free working posture.
-
Microprocessor control system with an LED display showing filter working time.
-

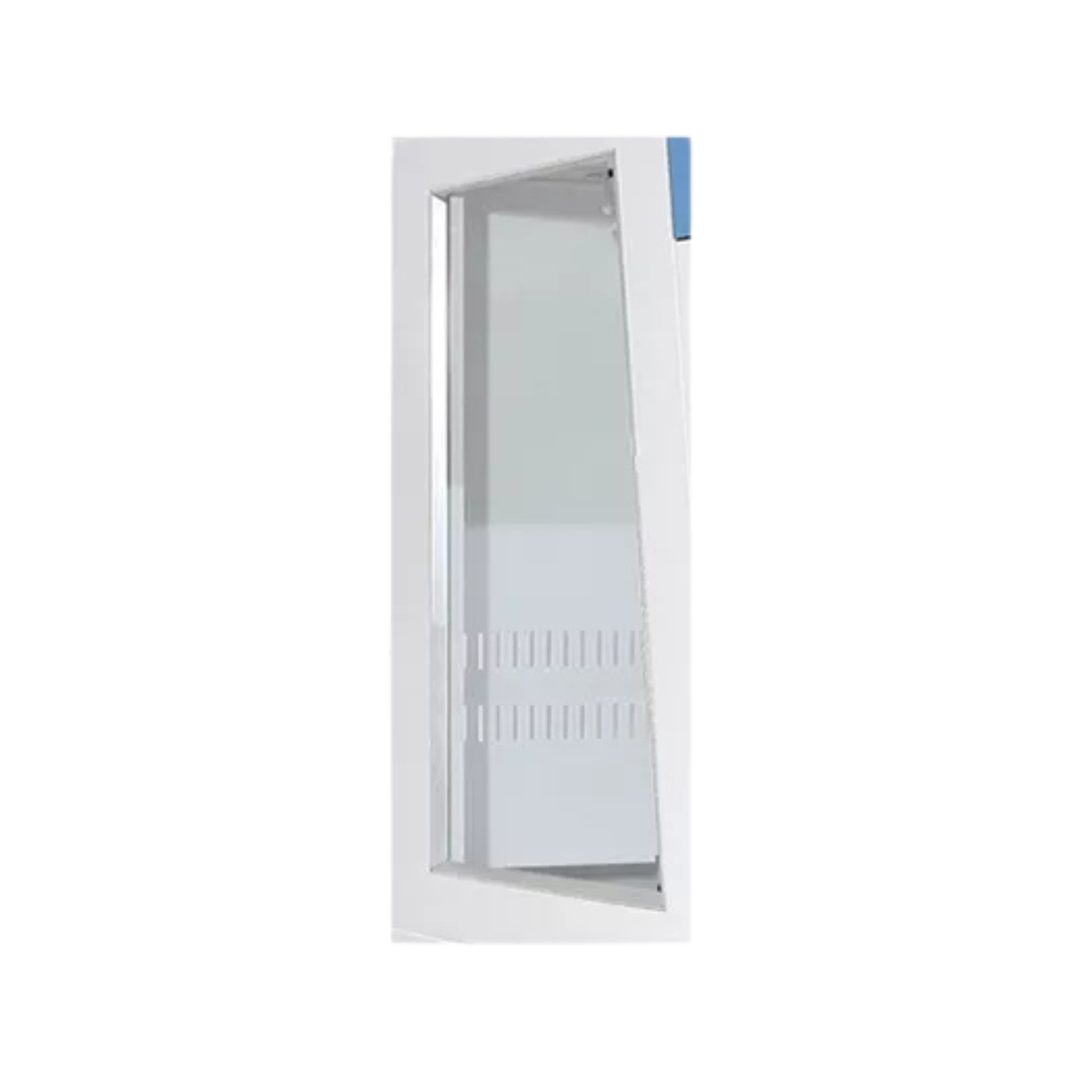

Transparent side glass windows for maximum light and visibility, creating a bright and open working environment.
Technical Parameters:
| Model |
SX25-DFH1000(X) |
SX25-DFH1200(X) |
SX25-DFH1500(X) |
SX25-DFH1800(X) |
| External Size(W*D*H) |
1000*840*2150mm |
1200*840*2150mm |
1500*840*2150mm |
1800*840*2150mm |
| Internal Size(W*D*H) |
880*730*745mm |
1080*730*745mm |
1380*730*745mm |
1680*730*745mm |
| Max Opening |
520mm |
| Work Surface Height |
750mm |
| Blower |
Built-in centrifugal blowers, Speed adjustable with 9 levels |
| Air Velocity |
0.3~0.8m/s |
| System Exhaust Volume |
630m³/h |
780m³/h |
990m³/h |
1210m³/h |
| Noise |
≤68dB |
| LED Lamp |
8W*1 |
12W*1 |
16W*1 |
16W*1 |
| UV Lamp |
20W
Emission of 253.7 nanometers for most efficient decontamination |
| Front Window |
Motorized, 5mm toughened glass, anti-UV |
| Exterior Body: Cold-rolled steel with anti-bacteria powder coating |
| Material |
Work Table: Chemical resistant phenolic resin |
| Waterproof Socket |
1pc |
2pcs |
2pcs |
2pcs |
| Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption |
400W |
400W |
500W |
500W |
| Standard Accessory |

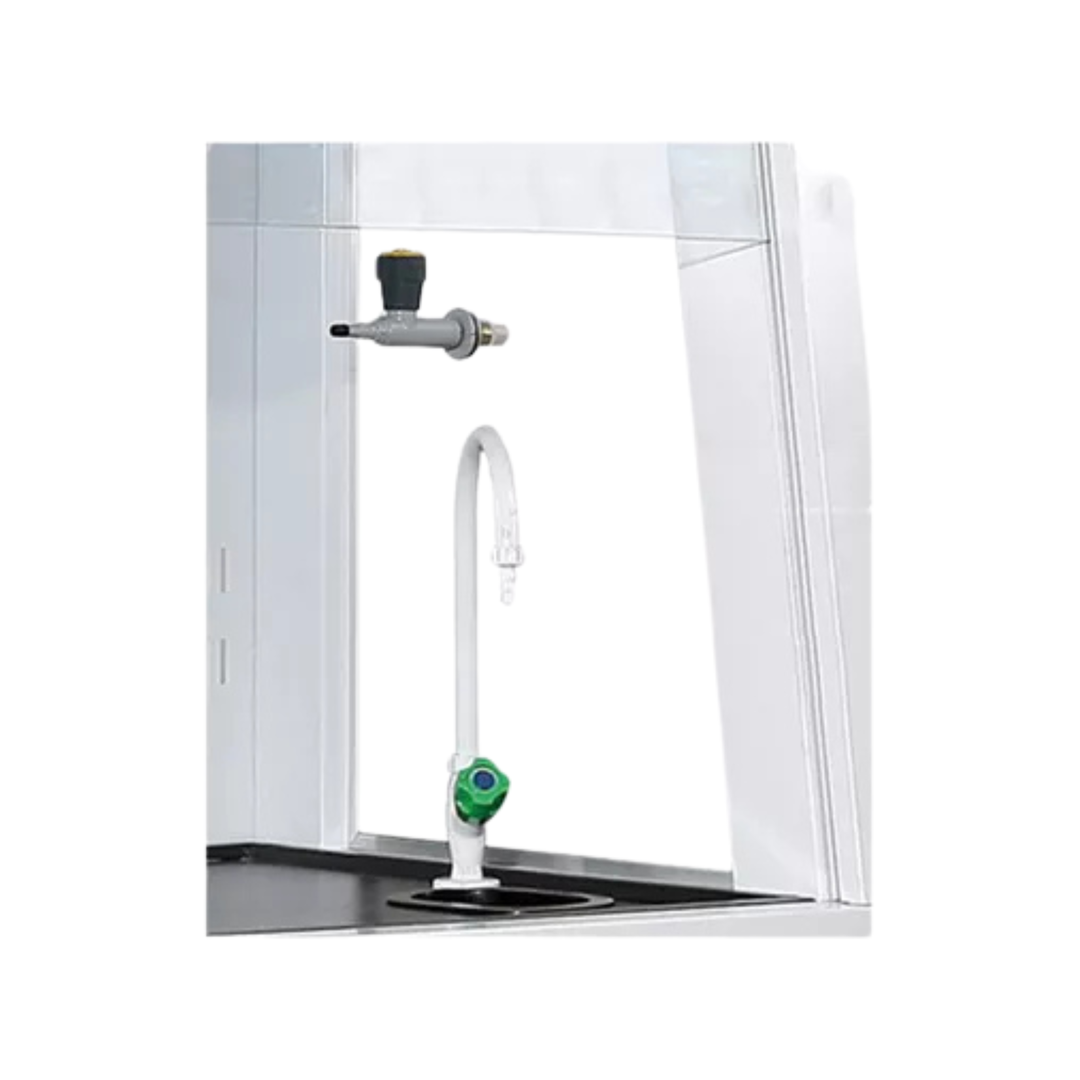

Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch |
| Optional Accessory |
HEPA filter |
| Gross Weight |
230kg |
253kg |
290kg |
340kg |
| Package Size(W*D*H) |
1150*1120*1680mm |
1350*1120*1680mm |
1650*1120*1680mm |
1950*1120*1680mm |
