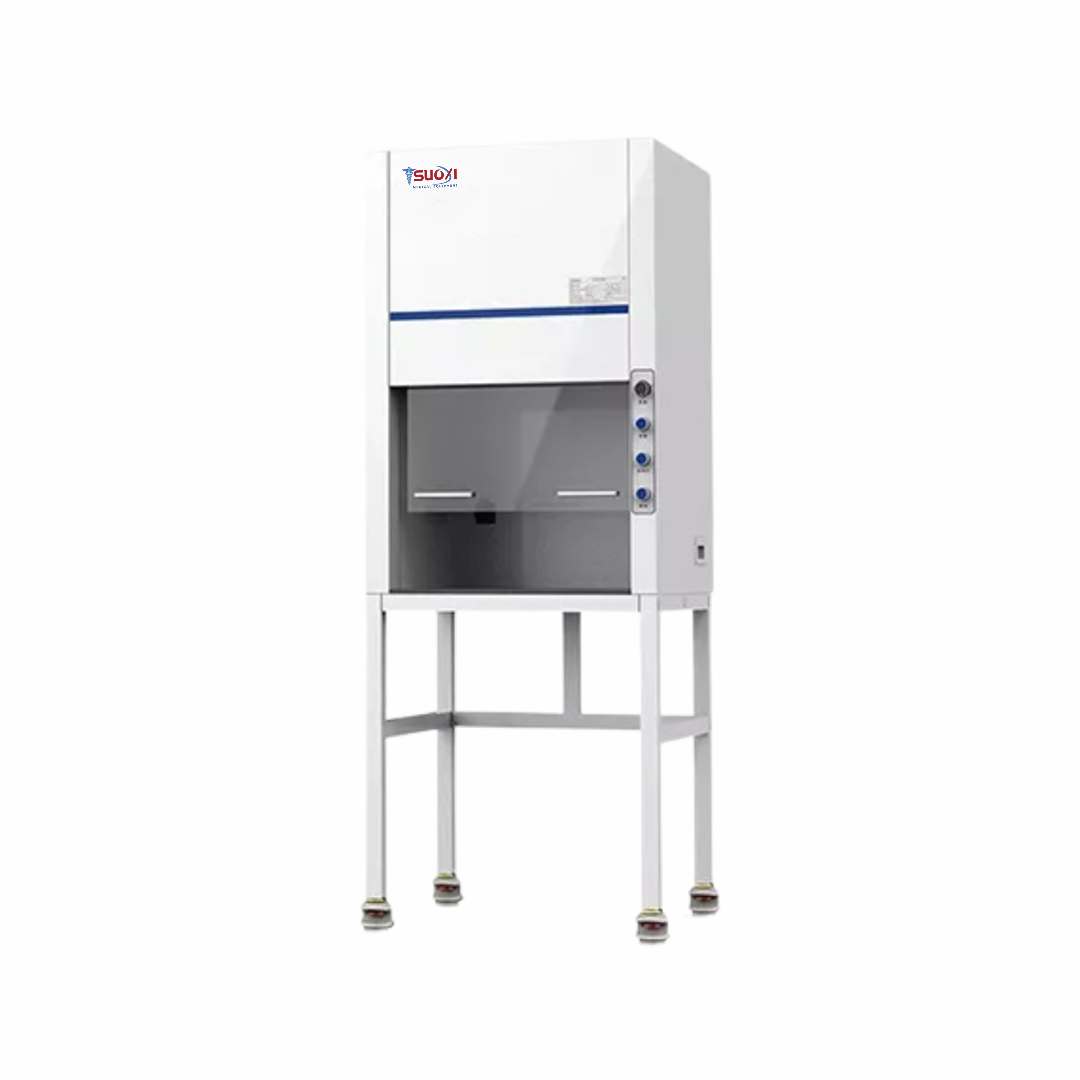

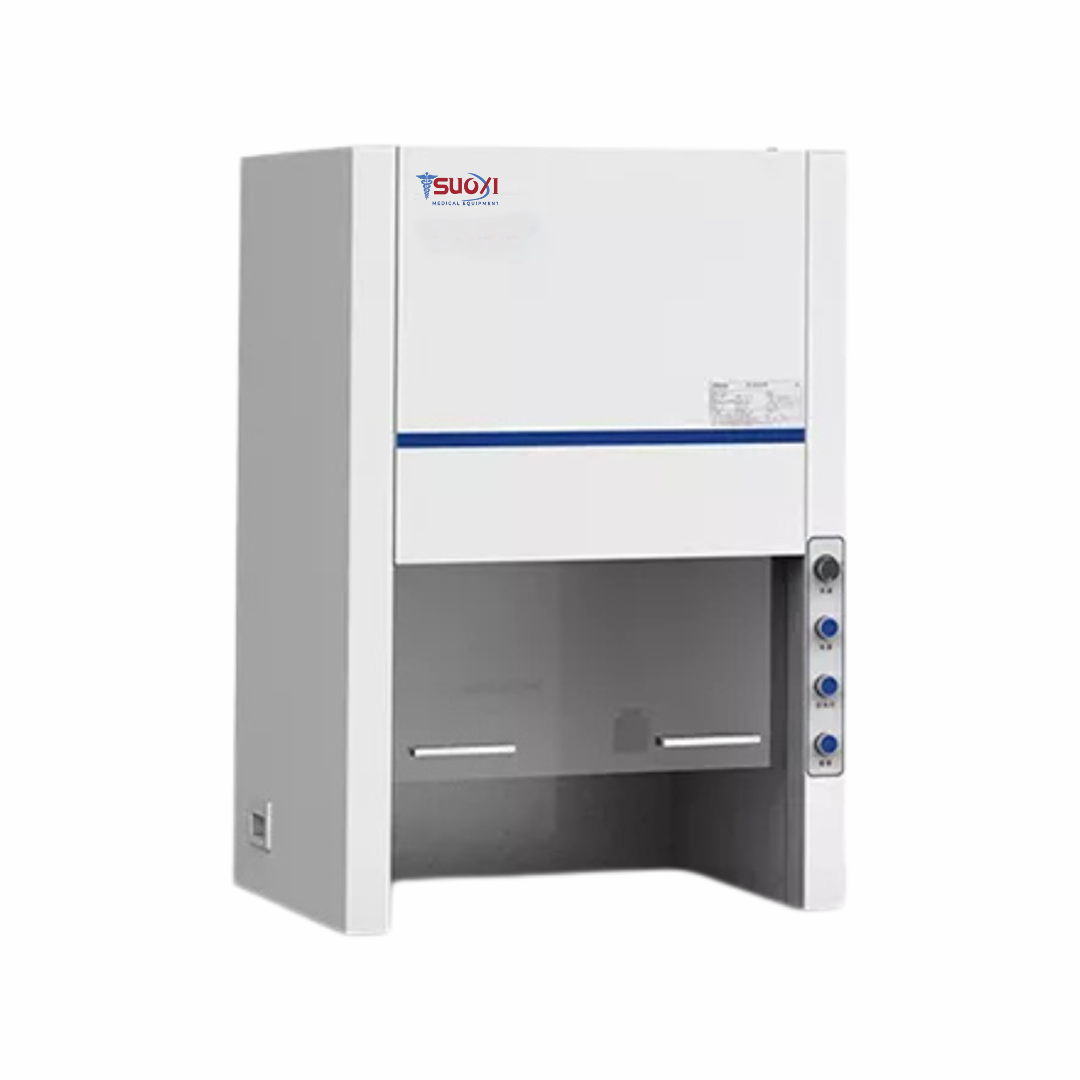

Model No: SX25-DFU700
Features:
-
The cabinet is designed with a vertical surface, providing a wide and more humanized operation perspective.
-
Made of high-quality cold-rolled steel plate material, with surface electrostatic spraying for a good finish.
-
The platform panel of the operation area is made of solid physical and chemical plate, resistant to acid and alkali corrosion, and can be disassembled for easy cleaning (integral type).
-
The front window is made of 5mm thick tempered glass, offering better protection for personnel and experiments.
-
Counterweight manual front window, height adjustable.
-
The base bracket and fume caster are integrated, allowing for safe movement through casters, while also ensuring it is well fixed and leveled.
-
Equipped with a PP axial flow fan, providing a large air volume, low noise, long service life, and easy installation.
-
The fan offers stepless speed regulation, with a push-button switch for stable performance.
-
The side of the cabinet body is equipped with lifting handles for easy carrying.
Technical Parameters:
| Specification | Details |
|---|---|
| Model | SX25-DFU700 |
| Number of Users | Single |
| Rated Power | 95W (Not including socket load power, load power cannot exceed 500W) |
| Power Supply | 220V±10%, 50Hz (Standard); 110V±10%, 60Hz (Optional) |
| Exhaust Volume | 1225m³/h |
| Air Velocity | 0.3m/s ~ 0.8m/s |
| Noise | ≤65dB(A) |
| LED Lamp | 4W |
| Max Opening | 400mm (Integral Type) |
| Tabletop Height | 810mm (Integral Type) |
| Standard Accessory | LED lamp, National standard three-core splash-proof socket |
| Optional Accessory | Base stand, Bench physical and chemical board |
| Net Weight | |
| Desktop Type | 60kg |
| Integral Type | 80kg |
| Gross Weight | |
| Desktop Type | 78kg |
| Integral Type | 100kg |
| External Size (WDH) | |
| Desktop Type | 7006501050mm |
| Integral Type | 7006501850mm |
| Internal Size (WDH) | 580510687mm |
| Package Size (WDH) | |
| Desktop Type | 8058401210mm |
| Integral Type | 9608401210mm |
