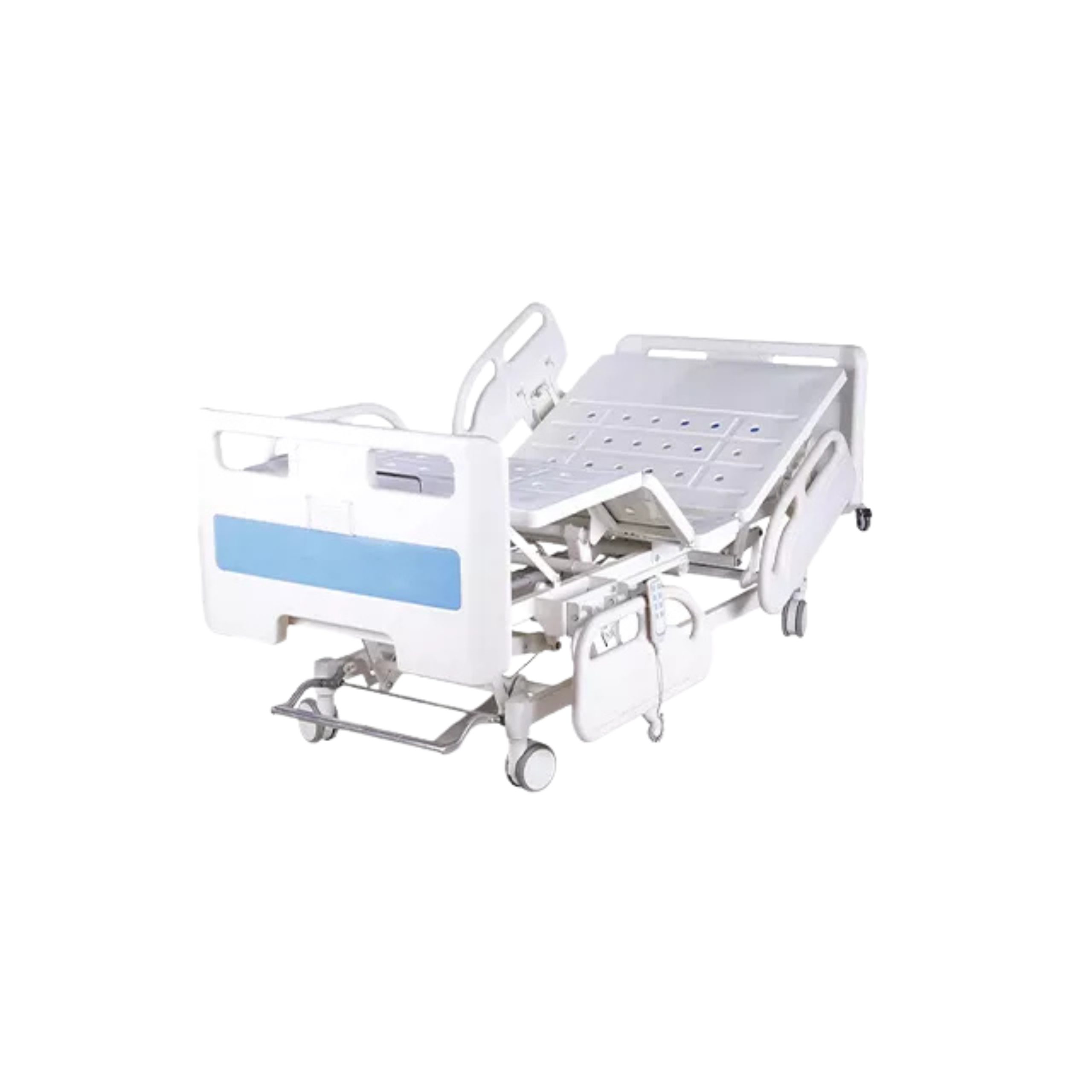

Model No: SX25-EHB-I, SX25-EHB-II
Features:
-
High-quality materials: The bed frame and bed board are made of high-quality steel plate with an electrostatically sprayed surface. The head and foot boards are crafted from ABS high-quality engineering plastic, molded in one piece for durability and strength.
-
Casters: Equipped with 125 mm central control casters for flexible rotation, one-foot braking, and four-wheel braking. These casters provide safety, stability, are highly wear-resistant, and operate silently.
-
Electronic control system: Utilizes high-quality motors and control systems that offer stable performance and enhanced safety during operation.
Specification:
| Specification | Details |
|---|---|
| Model | SX25-EHB-I, SX25-EHB-II |
| Instrument Size | 2150 × 1080 × 460~680 mm |
| Back Angle | 0 ~ 80° ±5° |
| Bent Leg Angle | 0 ~ 40° ±5° |
| Lifting Range | 460 ~ 680 mm |
| Front and Rear Tilt Angle | — (SX25-EHB-I) 0 ~ 8° ±1° (SX25-EHB-II) |
| Safe Load | 0 ~ 240 kg |
| Power Supply | 220V ±10%, 50/60Hz |
| Optional Accessories | Mattress, IV pole, movable dining table |
| Net Weight | 210 kg |
| Package Size | 2170 × 970 × 690 mm |
| Gross Weight | 246 kg |
