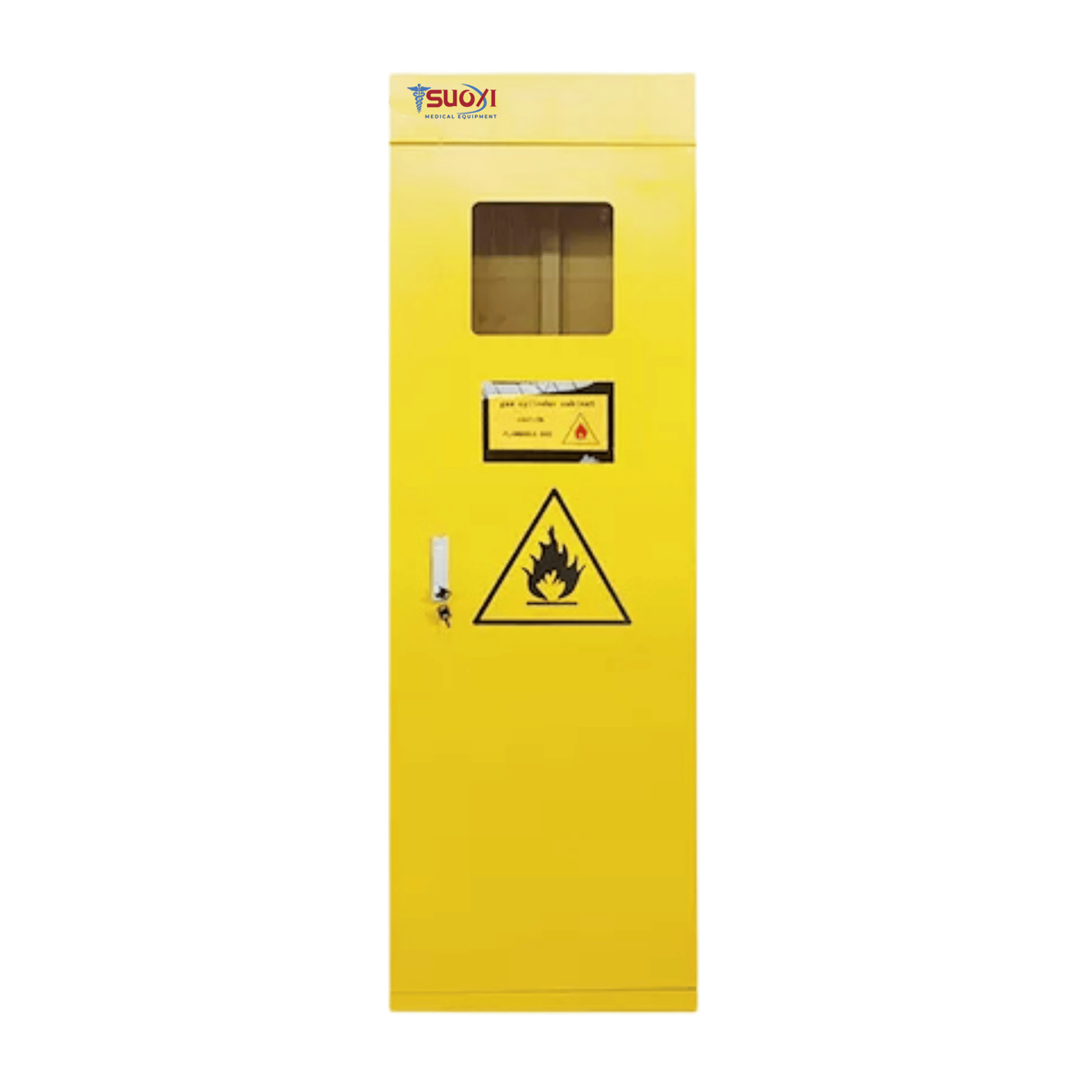

Model No: SX25-GCC-1Q, SX25-GCC-2Q, SX25-GCC-3Q
Features
Durable Cabinet Body
Constructed from high-quality cold-rolled steel plate, treated with pickling and phosphating, and finished with electrostatic spray coating for excellent resistance to acids, alkalis, and rust.
Sturdy Door Panel
Equipped with detachable hinges for easy maintenance, and a tempered glass window for visibility and safety.
Ventilation Design
Features four ventilation holes on each side to ensure proper air circulation and prevent gas accumulation.
Internal Safety Chain
Includes a fixed internal chain to securely hold gas cylinders in place and prevent tipping.
Adjustable Pedal Platform
Bottom of the cabinet is equipped with adjustable pedals to facilitate easy loading and unloading of gas cylinders.
Technical Parameters – SX25-GCC Series Gas Cylinder Cabinets
| Model | SX25-GCC-1Q | SX25-GCC-2Q | SX25-GCC-3Q |
|---|---|---|---|
| Capacity | 40L (1 cylinder) | 80L (2 cylinders) | 120L (3 cylinders) |
| Door Type | Single door | Double door | Double door |
| External Size (W×D×H) | 600 × 450 × 1900 mm | 900 × 450 × 1900 mm | 1200 × 450 × 1900 mm |
| Package Size (W×D×H) | 674 × 524 × 2030 mm | 974 × 524 × 2030 mm | 1274 × 524 × 2030 mm |
| Net Weight | 61 kg | 85 kg | 102 kg |
| Gross Weight | 78 kg | 105 kg | 124 kg |
Optional Alarm Apparatus
| Option No. | NO.1 | NO.2 |
|---|---|---|
| Power Supply | 220V, 50Hz | 110~220V, 50/60Hz |
| Alarm Type | Audible and visible alarm | Audible and visible alarm |
| Detectable Gases | Methane, Acetylene, Hydrogen, Coal Gas | Methane, Butane, Ethanol, Hydrogen, Liquefied Gas, Acetylene, Ammonia, etc. |
