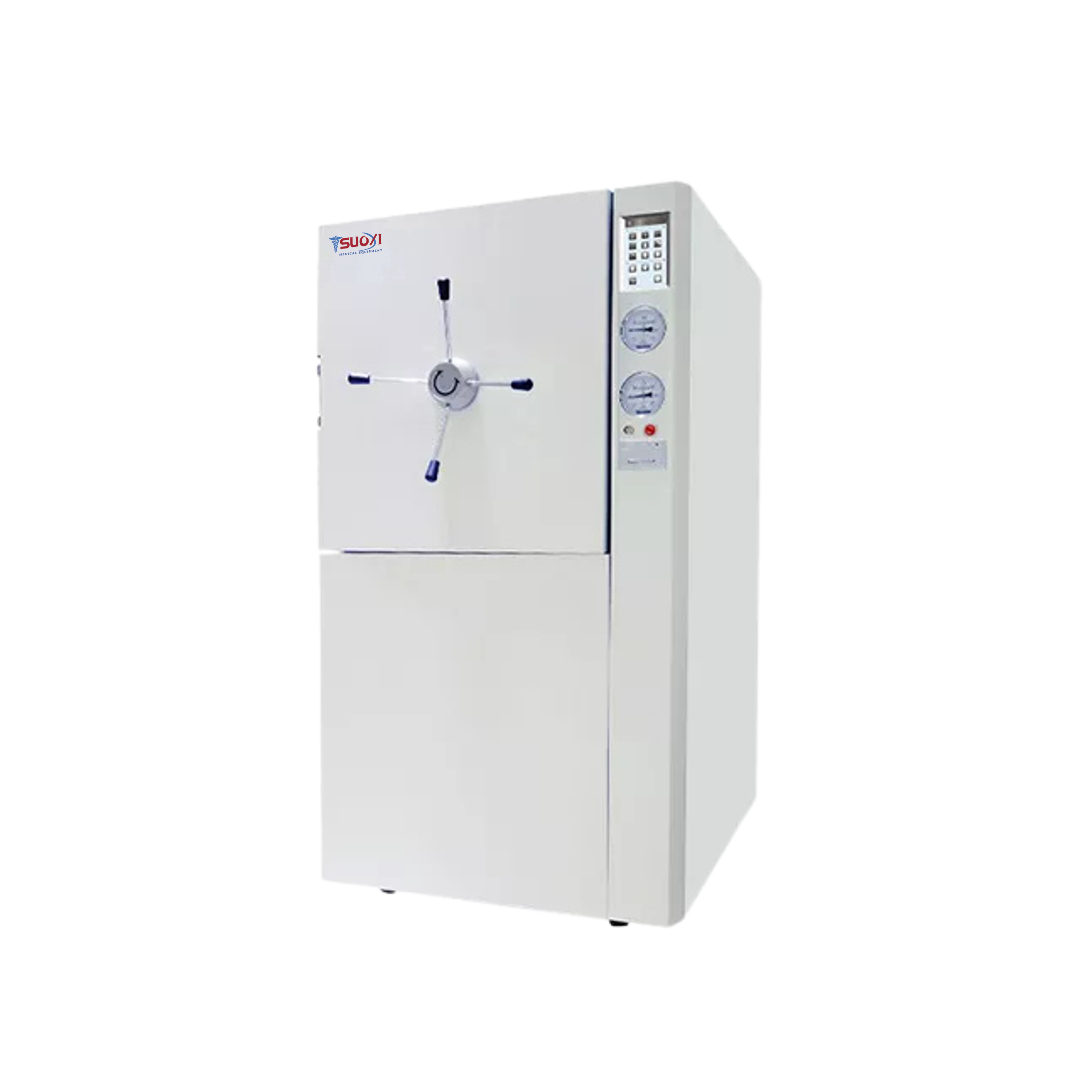

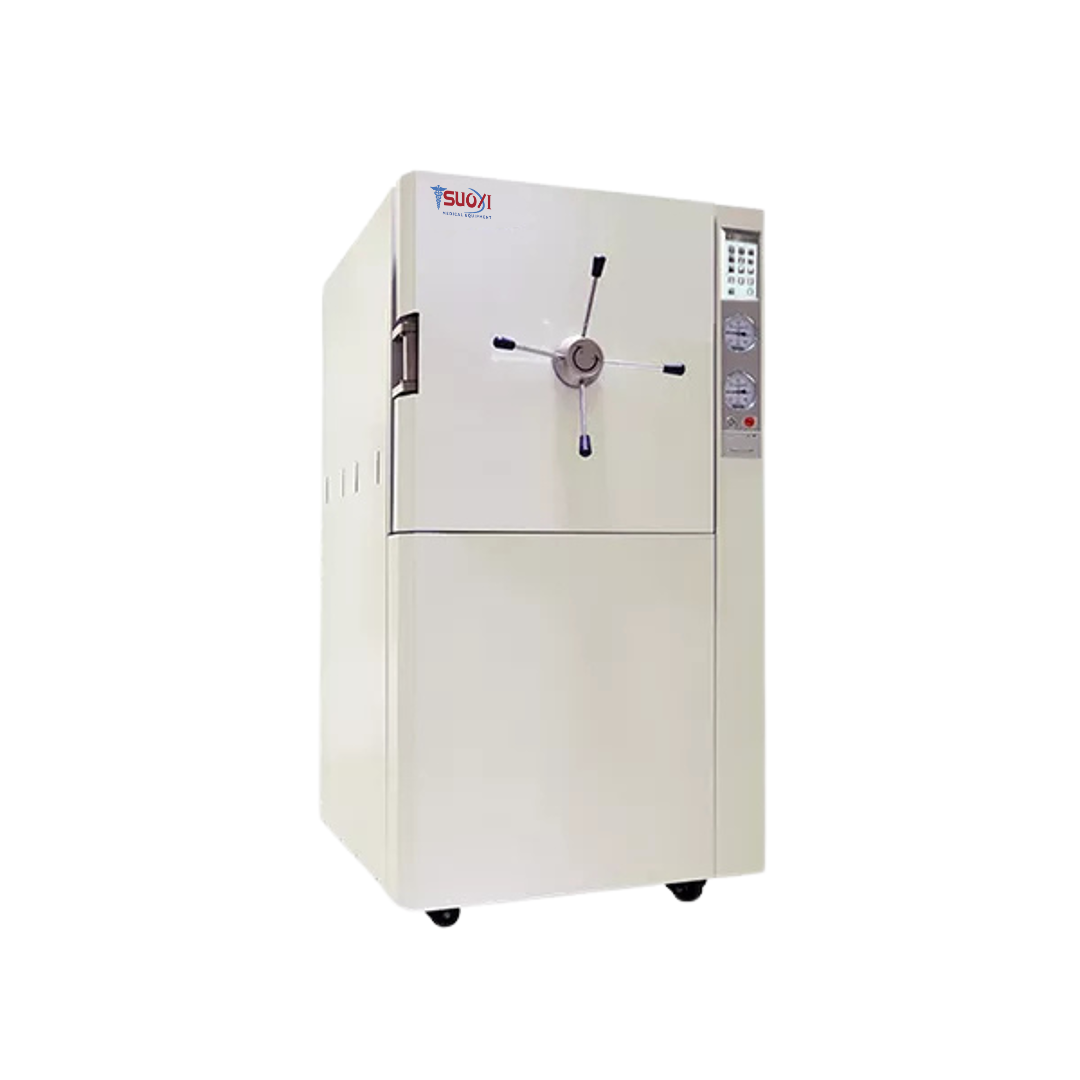

Horizontal Pulse Vacuum Autoclave

Model No: SX25-HPVA-150L, SX25-HPVA-200L, SX25-HPVA-300L, SX25-HPVA-360L

Features:

1. Sterilization Data Output: Standard micro printer, no need for separate external connection.

2. 7-inch Color LCD Touch Screen: Displays information such as temperature, pressure, operating status, fault alarm, cause analysis, and solutions at the same time.

3. Powerful Vacuum Drying System: High evacuation speed that dries items effectively and ensures more thorough sterilization.

4. Sterile Air Chamber: The air in the chamber is sterile to avoid re-contamination.

5. Quick-release Side Cover and Top Cover: Allows easy maintenance and cleaning.

6. Micro-controller Programmable Control Technology: Advanced control for precise operations.

7. Full Protective Door Cover: Effectively prevents burns during operation.

8. Self-expanding Sealing Ring: Ensures more reliable and stable sealing performance.

9. Multi-point Pressing Structure: Safe and reliable closing method with a radiation rod.

10. Automatic Water Source Connection: After selecting the program, the equipment can complete the entire process from water injection to drying without human intervention, with sound prompts when sterilization is complete.

11. Built-in High-Speed Steam Generator: No need for an external steam source, saving time and effort.

12. Mobile Temperature Sensor: Meets the special requirements of the laboratory.

13. Pressure, Mechanical, and Electronic Safety Interlock: Includes over-temperature and over-pressure protection.

14. 12 Programs: The equipment offers sterilization programs for exposed instruments, packaged instruments, rubber, dressings, liquids, solid DIY, liquid DIY, rapid sterilization, and enhanced sterilization. Additionally, BD and vacuum tests, along with a drying program, are included for specialized applications.

Technical Parameters:
