Model No: SX25-IFI-3201(I), SX25-IFI-3201(II)
Features
LCD Display
Clear and easy-to-read interface for monitoring and control.
Dual Temperature Control Modes
Supports both bed temperature and skin temperature regulation for precise thermal management.
Double-Layer Thermostatic Cover
Ensures consistent internal temperature with an automatic air curtain to reduce heat loss.
Humidity Control Function
Maintains optimal humidity levels for newborn comfort and respiratory support.
Air & Oxygen Blender
Provides accurate control over air and oxygen concentration for respiratory care.
Integrated Oxygen Supply System
Delivers a stable oxygen supply to support neonatal oxygenation needs.
Infinitely Adjustable Baby Cot
Offers flexible positioning for enhanced care and ease of access.
24 Types of Audio-Visual Alarms
Comprehensive safety system with alarms for various critical parameters to ensure newborn protection.

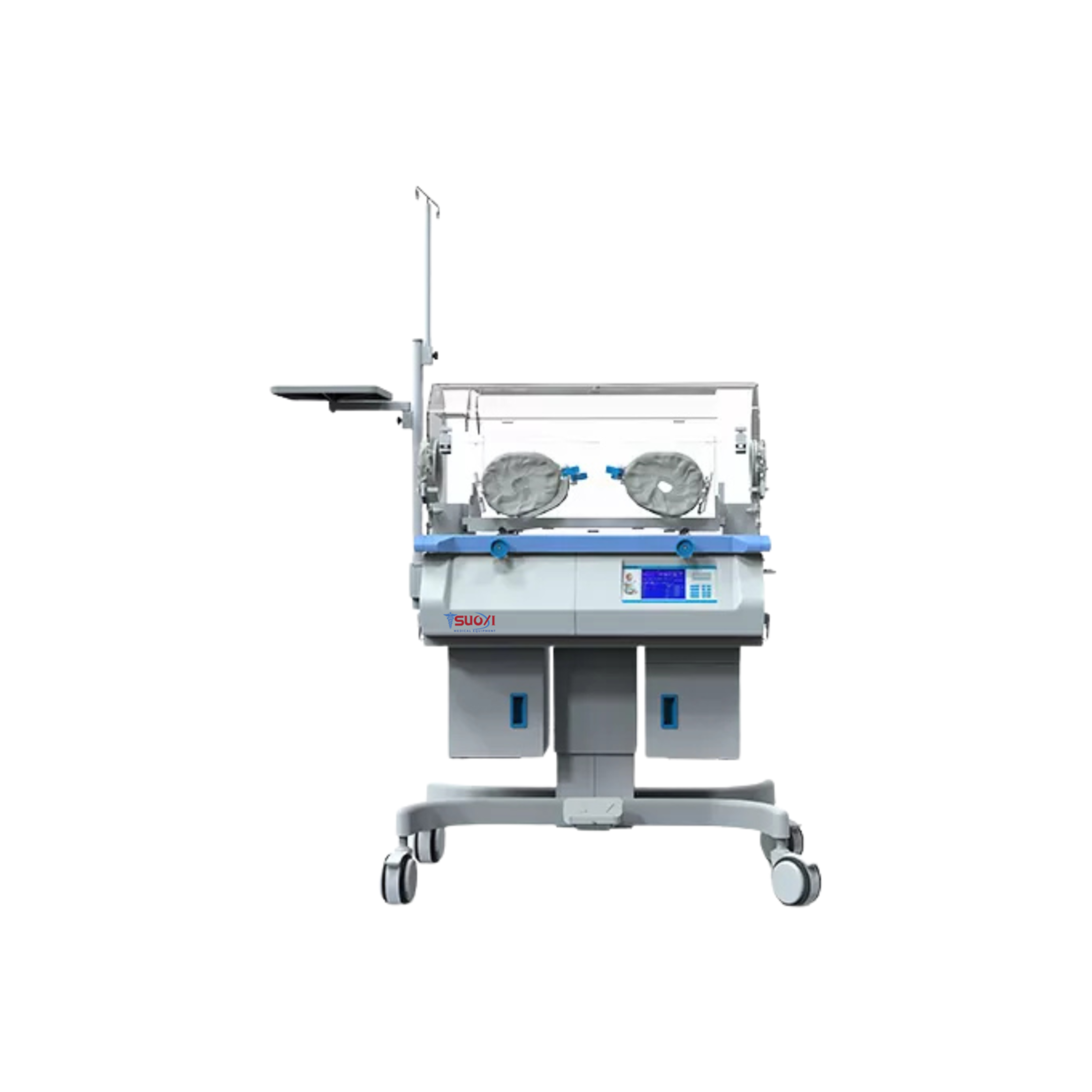

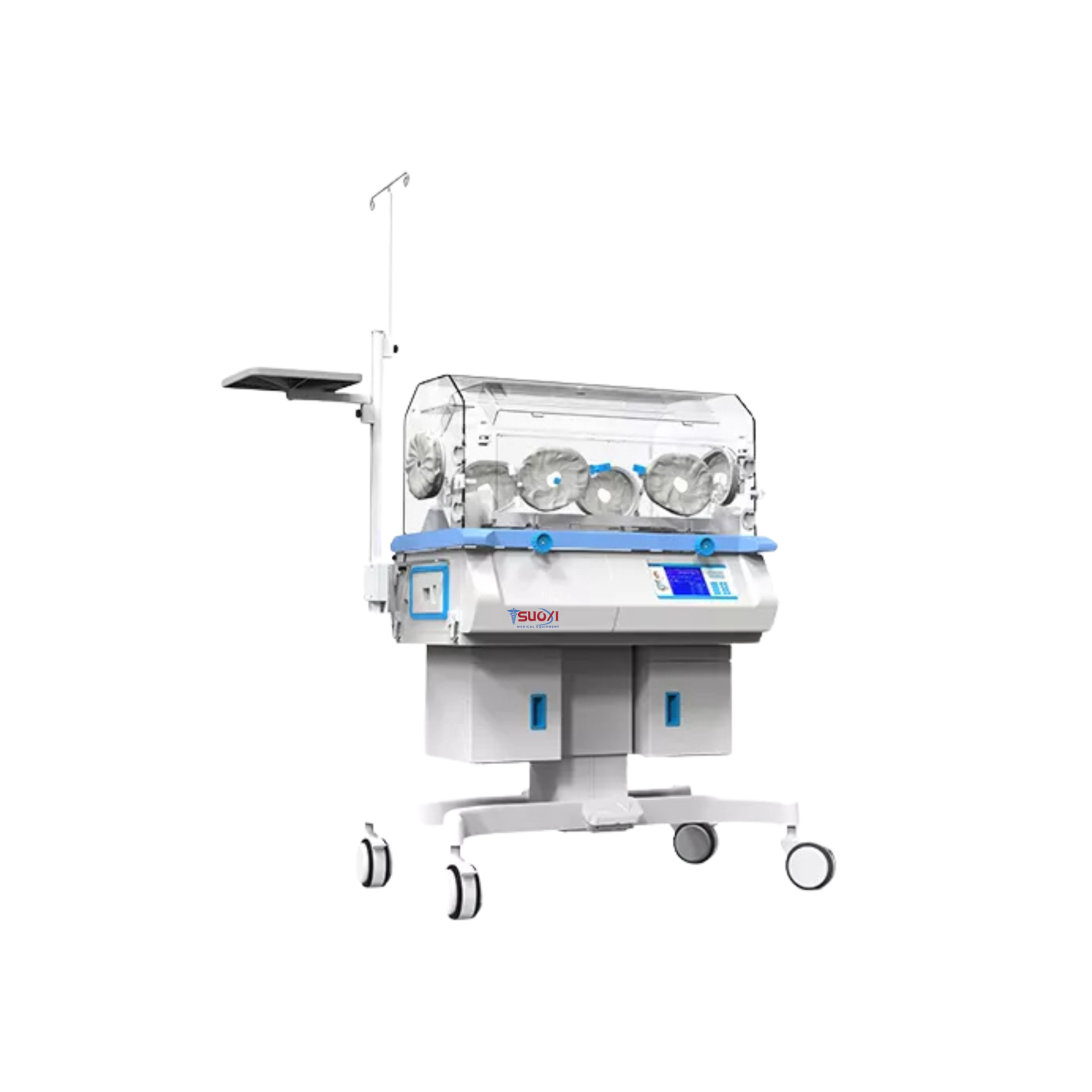

Technical Parameters – Infant Incubator SX25-IFI-3201 Series
General Specifications
| Item | Specification |
|---|---|
| Power Supply | AC220V, 50/60Hz (Standard), 1320VA110V, 60Hz (Optional) |
| Size (L×W×H) | 950 × 645 × (1250–1450) mm |
| Max Heater Output Power (220VAC) | Air chamber heater: 330WWater tank heater: 155W |
| Auxiliary Power Output | AC220V/50Hz, Max current: 220V 1.5A |
| Heater Indication | 0–100% (10% increments) |
| Temperature Control Modes | Bed temperature mode, Skin temperature mode |
| Bed Temp. Control Range | 25.0–37.0℃; 37.1–39.0℃ (Span mode) |
| Skin Temp. Control Range | 34.0–37.0℃; 37.1–38.0℃ (Span mode) |
| Sensor Display Range (Skin Temp.) | 5.0–65.0℃ |
| Heating Time | ≤50 min |
| Temperature Variability | ≤0.5℃ |
| Temp. Uniformity (Horizontal Mattress) | ≤0.8℃ |
| Temp. Uniformity (Tilted Mattress) | ≤1.0℃ |
| Average Temp. Deviation | ≤1.5℃ |
| Skin Temp. Sensor Accuracy | ±0.3℃ |
Humidity Control
| Item | Specification |
|---|---|
| Tank Runtime After Refill | ≥24 hours (Humidity < 70% RH) |
| Water Tank Capacity | 1500 ml |
| Humidity Display Range | 0% RH – 99% RH |
| Humidity Control Range | CAH% RH – 90% RH (1% increments) |
| Humidity Accuracy | ±10% RH |
Oxygen Concentration Control
| Item | Specification |
|---|---|
| Display Range | 0% – 99% |
| Resolution | 1% |
| Accuracy | ±5% (O₂ volume concentration) |
| Setting Range | 21% – 60% (1% increments) |
| Sensor Life | Up to 10,000 hours (at 100% O₂ concentration) |
Transport & Storage Conditions
| Item | Specification |
|---|---|
| Temperature | -20℃ to +55℃ |
| Atmospheric Pressure | 500 hPa – 1060 hPa |
| Relative Humidity | ≤93% RH |
| Packing Size / Gross Weight | 1150 × 800 × 1600 mm / 190 kg |
Working Environment
| Item | Specification |
|---|---|
| Temperature | +20℃ to +30℃ |
| Relative Humidity | 30% RH – 75% RH |
| Pressure Range | 700 hPa – 1060 hPa |
| Service Altitude | ≤2000 m |
| Overvoltage Category | II |
| Pollution Level | 2 |
| Ambient Air Velocity | ≤0.3 m/s |
Other Indicators
| Item | Specification |
|---|---|
| Noise Level (Inside Compartment) | ≤55 dB(A) |
| CO₂ Concentration | ≤0.5% after stabilization |
| Airflow Velocity Over Mattress | ≤0.35 m/s |
Configuration
| Model | SX25-IFI-3201(I) | SX25-IFI-3201(II) |
|---|---|---|
| Temp. Control | Bed/Skin Temperature | Bed/Skin Temperature |
| Display | LCD | LCD |
| Bed Temp. Range | 25℃ – 39℃ | 25℃ – 39℃ |
| Skin Temp. Range | 34℃ – 38℃ | 34℃ – 38℃ |
| Humidity Control Range | CAH% – 99% RH | CAH% – 99% RH |
| Oxygen Control Range | 21% – 99% | Not Available |
| Cabinet | Yes | Yes |
