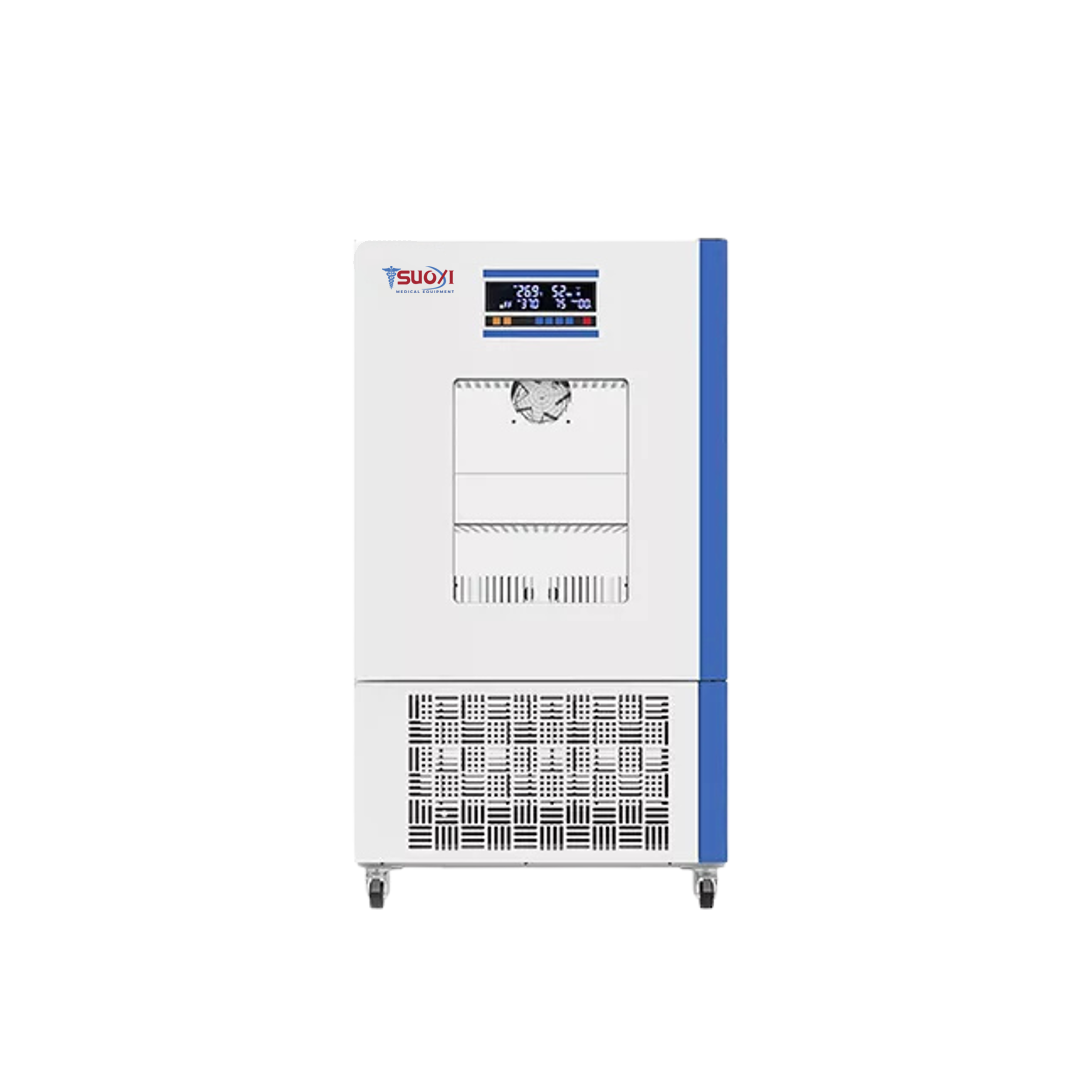

Model No: SX25-MI100B, SX25-MI150B, SX25-MI200B, SX25-250B
Features:
-
Structural Design:
The box shell is made of cold-rolled steel plate with an environmentally friendly spray coating, providing strong corrosion resistance. The interior is constructed from SUS304 mirror stainless steel for enhanced durability.
-
Energy-saving Design:
Utilizes a non-fluorine, environmentally friendly high-efficiency refrigerant, ensuring fast cooling speeds, high cooling efficiency, and low power consumption.
-
Humanized Design:
Features an adjustable shelf height for flexible usage and easy assembly. The outer door is equipped with a magnetic seal for superior airtightness and includes an observation window for clear visibility.
-
Safety Guarantee:
The unit is equipped with a leakage protection device and an audible buzzer alarm system to ensure safe operation.
Technical Parameters:
| Model |
SX25-M100B |
SX25-M150B |
SX25-M200B |
SX25-M250B |
| Capacity(L) |
100 |
150 |
200 |
250 |
| Temp. Sensor |
PT100 |
| Temp. Range |
0~85℃ |
| Temp. Fluctuation |
0~18℃: ±1.0℃; 19~42℃: ±0.5℃; 43~85℃: ±1.0℃ |
| Temp. Uniformity |
±2℃ |
| Temp. Precision |
0.1℃ |
| Timing Range(min/h) |
0~9999 |
| Humidity Range |
50％~95％ |
| Humidity Control Accuracy |
1%RH |
| Humidity Control Fluctuation |
±5~±8%RH |
| Refrigerant |
R134a(CFC-free environmentally friendly refrigerant) |
| Sterilization Method |
UV sterilization lamp(Timetable setting) |
| Power Supply |
Standard: AC220V, 50/60Hz
Optional: AC110V, 60Hz |
| Consumption |
1000 |
1000 |
1200 |
1200 |
| Shelves |
2 |
| Standard Accessories |
UV sterilization lamp |
| Optional Accessories |
USB interface, Printer, Shelf |
| Internal Size(W*D*H)mm |
350*500*580 |
401*550*690 |
450*600*750 |
450*660*850 |
| External Size(W*D*H)mm |
647*644*1170 |
692*690*1270 |
743*742*1340 |
743*802*1440 |
| Package Size(W*D*H)mm |
790*795*1350 |
820*820*1450 |
880*880*1520 |
880*945*1720 |
| Net Weight(kg) |
98.5 |
115 |
125 |
135 |
| Gross Weight(kg) |
115 |
140 |
150 |
170 |
