Model No: SX25--BSCII-2FA2
ADVANTAGE
Motorized front window

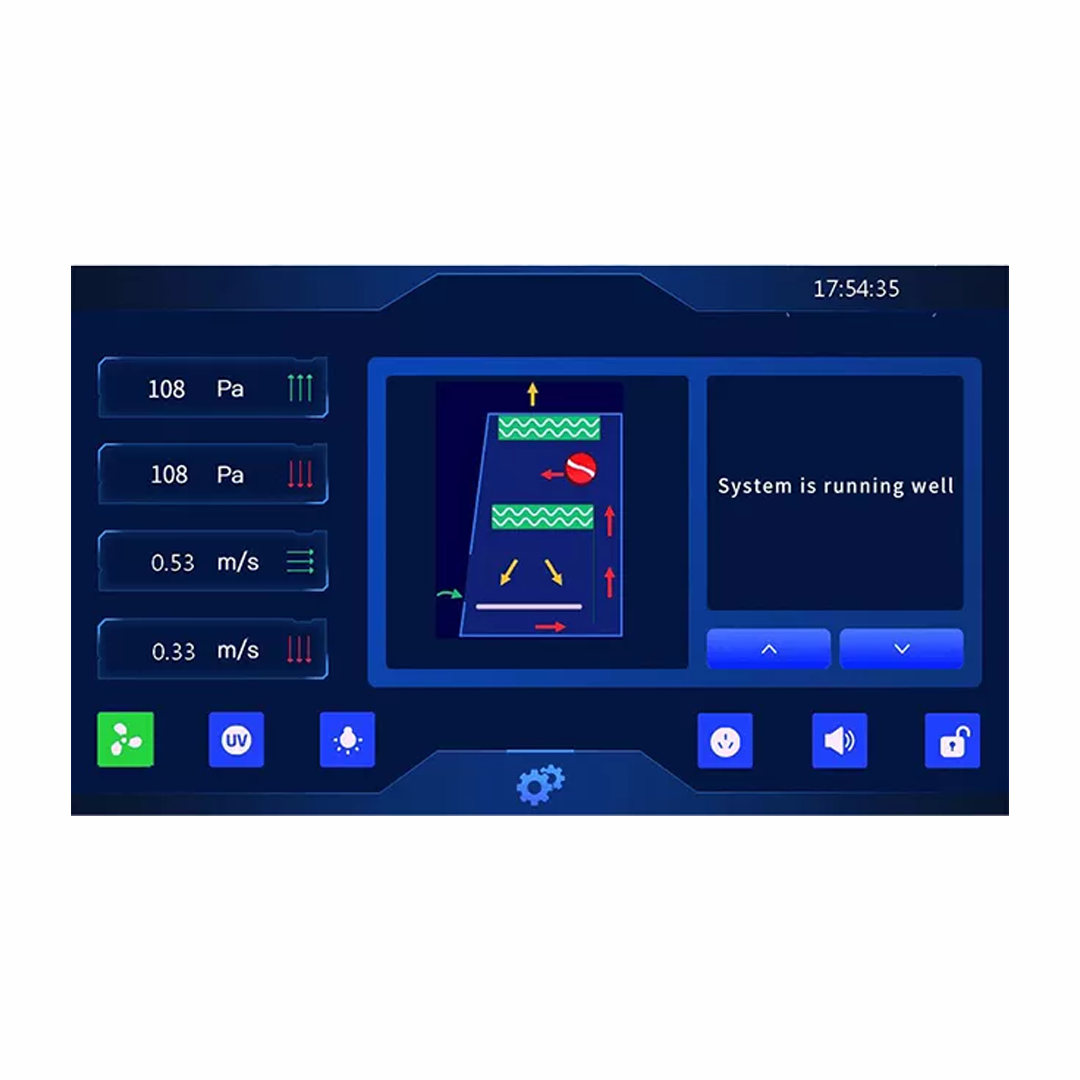

7-inch large touch color display: Touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound, and light prompt
The power-on password can be set to prevent mis-operation by irrelevant personnel
EC Fan: Automatically adjusts the wind speed
With power-off memory function, the state before power-off will be restored after power-on, with visual prompts and alarms
The integrated design of the operation area makes it easy to disassemble and clean
The cabinet is separated from the base. The height of the adjustable base can be customized
Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window
It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan, and sockets
The front window closes the trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on
The one-piece hand resting surface has a larger contact area with the arm and is more comfortable, with air speed adjustable with filter block
Technical Parameters
| Specification | Details |
|---|---|
| Model | SX25-BSCII-2FA2 |
| External Size (WDH) | 7006501920mm |
| Internal Size (WDH) | 600500540mm |
| Work Surface Height | 750mm |
| Max Opening | 370mm |
| Tested Opening | Safety height 254mm (10") |
| Inflow | 290m³/h (170cfm) |
| Downflow | 55%: 360m³/h (211cfm) |
| Exhaust | 45%: 290m³/h (170cfm) |

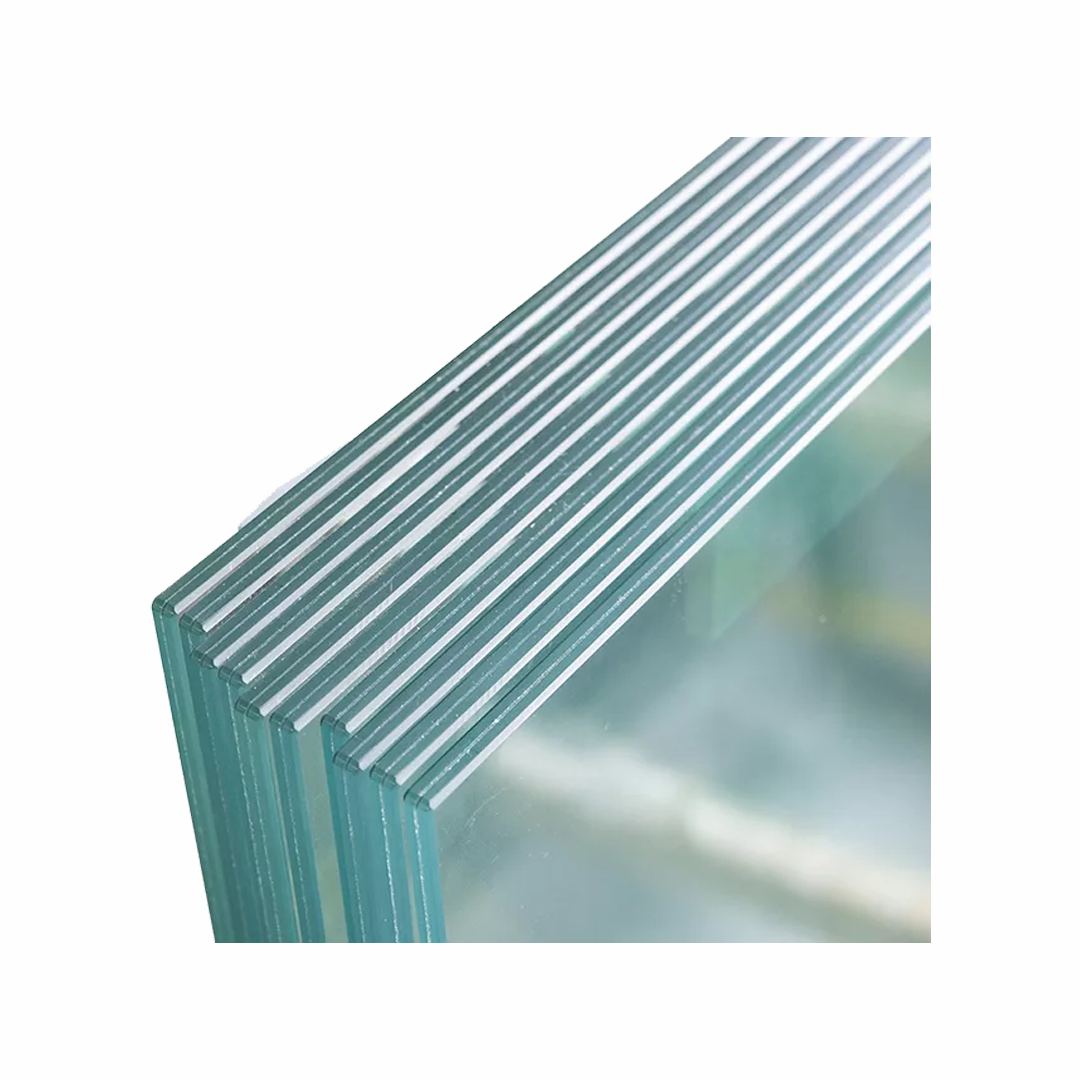

| Front Window | Two-layer laminated toughened glass >6mm, Anti UV |
| ULPA Filter | ≥99.9995% efficiency at 0.12μm |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤67 dB |
| Illumination | ≥1000Lux |
| Display | Capacitive touch screen |

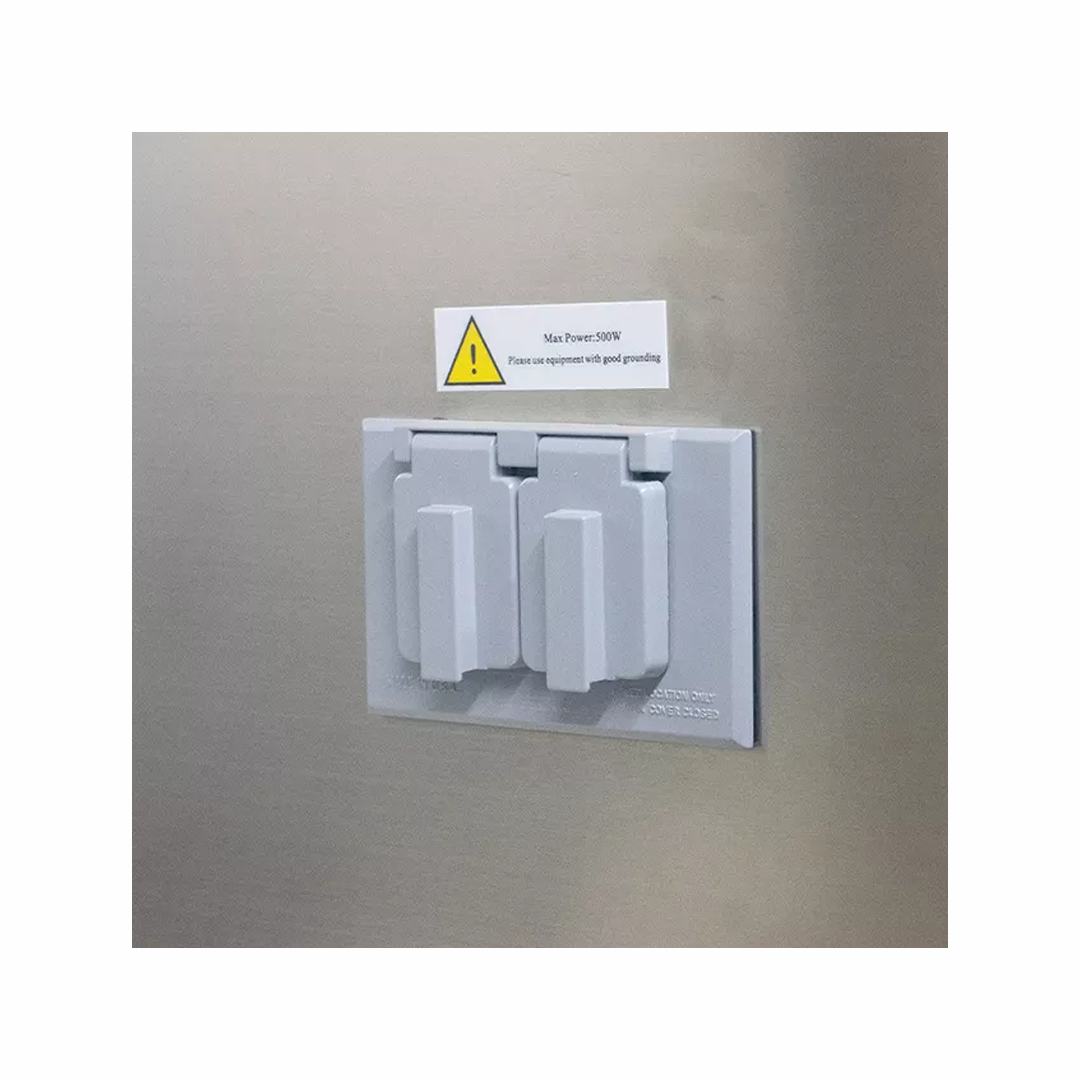

| Waterproof Socket | Two, Total consumption ≤500W |
| Ground Resistance | ≤0.1Ω |
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | ≤500W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Motor | One EC fan, 115V＆230V acceptable, Speed adjustable, High efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame and Decorative Plate: cold-rolled steel with anti-bacteria powder coating |
| UV Lamp | 15W |
| LED Lamp | 10W*2 |
| Standard Accessory | LED Lamp*2, UV lamp, Base stand, Drain valve, Waterproof sockets |

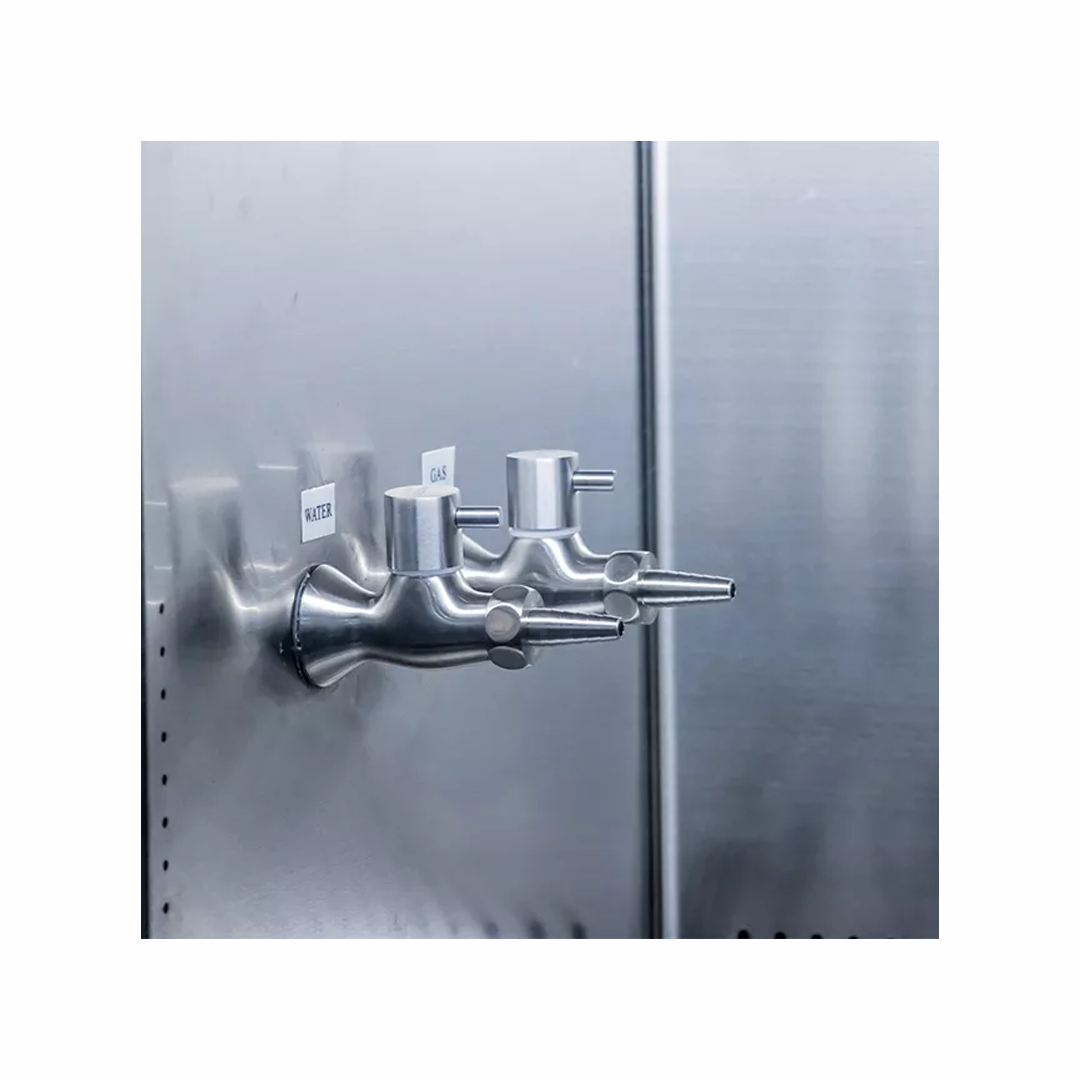

| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, SS water tap1 & gas tap1 |
| Net Weight | 150kg |
| Gross Weight | 170kg |
| Package Size (WDH) | Carton: 8008501350mm |
