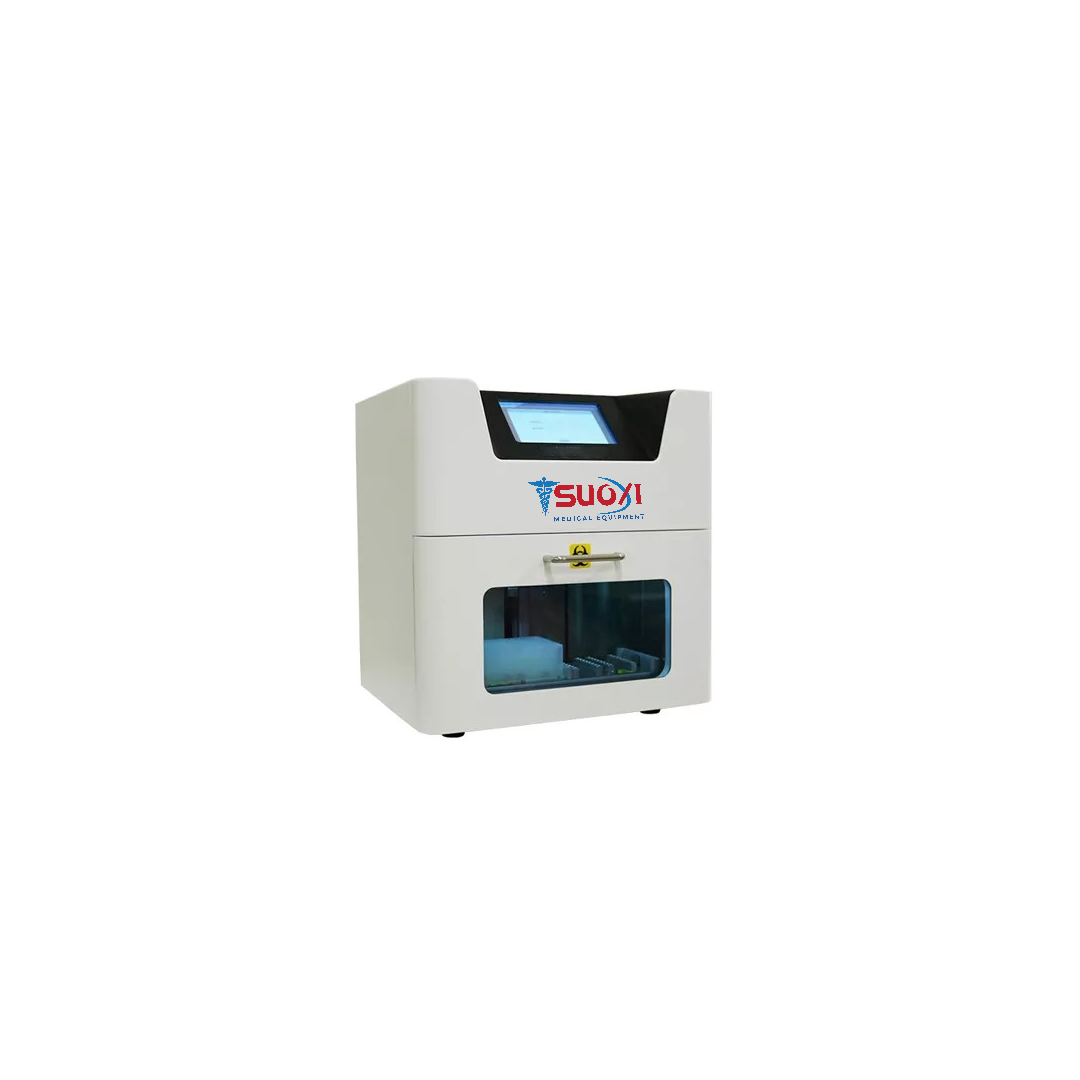

Model No: SX25-NAE32, SX25-NAE48
Features:
7-inch touch screen, easy to use, fast response
User-defined cracking and elution temperature
UV disinfection function, time range 1 min ~ 24 hour
Automatic control system, no need connect to computer
Free programming to meet the needs of different reagent
Open system, fully automatic, stable results and good repeatability
Extract rapidly 9 ~ 40 minutes, 32/48 samples can be extracted at the same time
Specification:
| Specification | Details |
|---|---|
| Processing Volume | 60 µl ~ 1000 µl |
| Sample Volume | 20 ~ 500 µl |
| Sample Throughput | 1 ~ 32 |
| Magnetic Bead Recovery | > 98% |
| Extracting the Difference Between Holes | CV ≤ 3% |
| Heating Temperature | 8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs |
| Oscillating Mixing | Low, medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume |
| Reagent Type | Magnetic bead open platform |
| Extraction Time | 8 ~ 60 min/round (depending on the reagent used) |
| Internal Program | 48 groups |
| Program Management | 50,000 groups. Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved |
| Safety Door Design | After the safety door is opened, the program operation will be automatically suspended, and the program can continue to run after the safety door is closed |
| Built-in Air Duct | Yes |
| Ultraviolet Irradiation | Yes |
| Packing Size (W × D × H) mm | 580 × 510 × 700 |
| Gross Weight (kg) | 80 |
