Model No: SX25-RFQ-PCR6000A
Features:

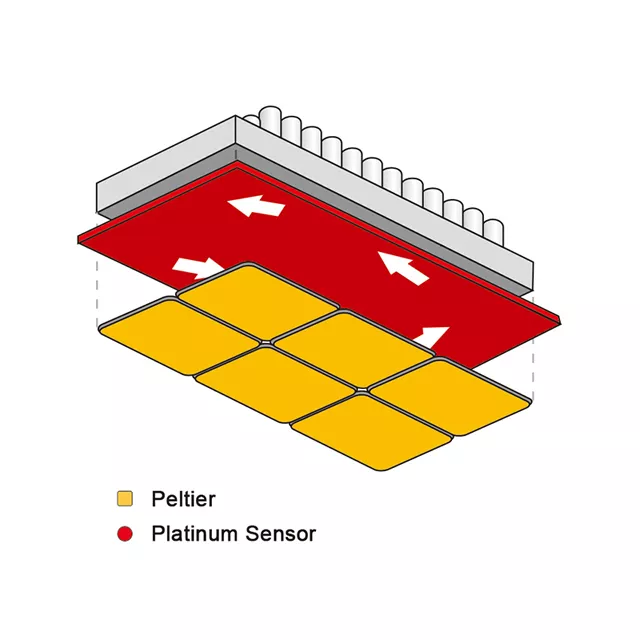

Six independent temperature control
Thermal compensation technology of temperature module
No edge effect of temperature and optics have

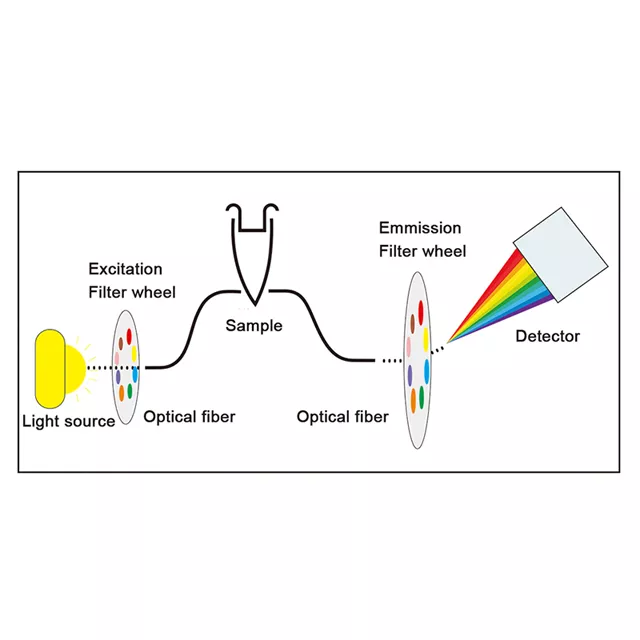

Maintenance-free long-life continuous spectral excitation source
Synchronous and fast acquisition of low temperature CCD 0.15s in cold state
Relative quantitative high sensitivity 1.5 times effective discrimination
Flexible, open and user-friendly software platform
Open reagent consumable platform
Specification:
| Specification | Details |
|---|---|
| Excitation Wavelength | 380 ~ 780 nm |
| Detection Wavelength | 380 ~ 780 nm |
| Fluorescence Detection Repeatability | CV ≤ 3% |
| Fluorescence Detection Precision | CV ≤ 5% |
| Sample Detection Repeatability | CV ≤ 3% |
| Fluorescence Detection Linearity | r ≥ 0.980 |
| Confidence | It can effectively distinguish 5000 and 1000 copies with 99.8% confidence degree |
| Module Temperature Range | 4 ~ 100℃ (resolution: 0.1℃) |
| Heating Speed | 5.0℃/s (Max), 3.5℃/s (Avg) |
| Cooling Speed | 5.0℃/s (Max), 3.2℃/s (Avg) |
| Temperature Accuracy | ±0.1℃ |
| Temperature Uniformity | ≤ ±0.25℃ |

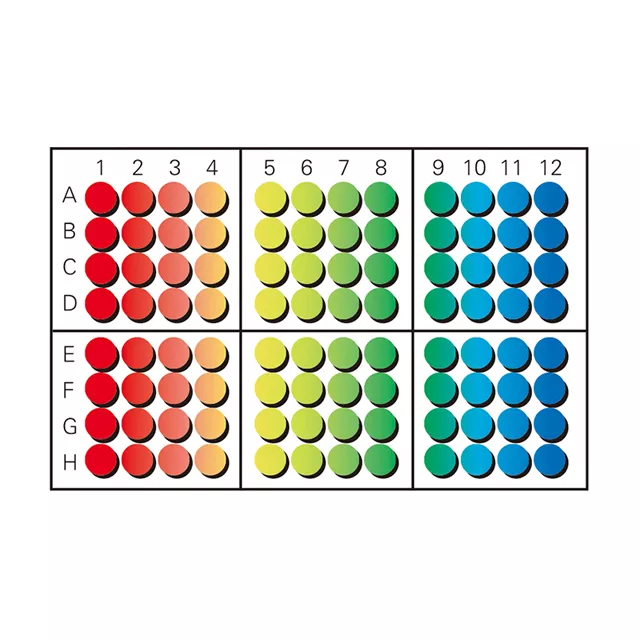

| Number of Temperature Control Areas | 6 |
| Gradient Temperature Range | 1 ~ 32℃ |
| Hot-Lid Temperature Range | 104℃, Automatic Hot-lid |
| Special Function | Absolute quantification, Relative Quantification, Genotyping, Amplification efficiency calculation, Melting curve |
| Operation System | Windows 7 64-bit or higher |
| Power Supply | 100 ~ 240V, 50 ~ 60Hz |
| Dimension (L × W × H) mm | 600 × 390 × 320 |
| Port Method | USB Port |
| Packing Size (L × W × H) mm | 850 × 600 × 650 |
| Gross Weight | 51 kg |
