Model No: SX25-SPE-12, SX25-SPE-24, SX25-SPE-36

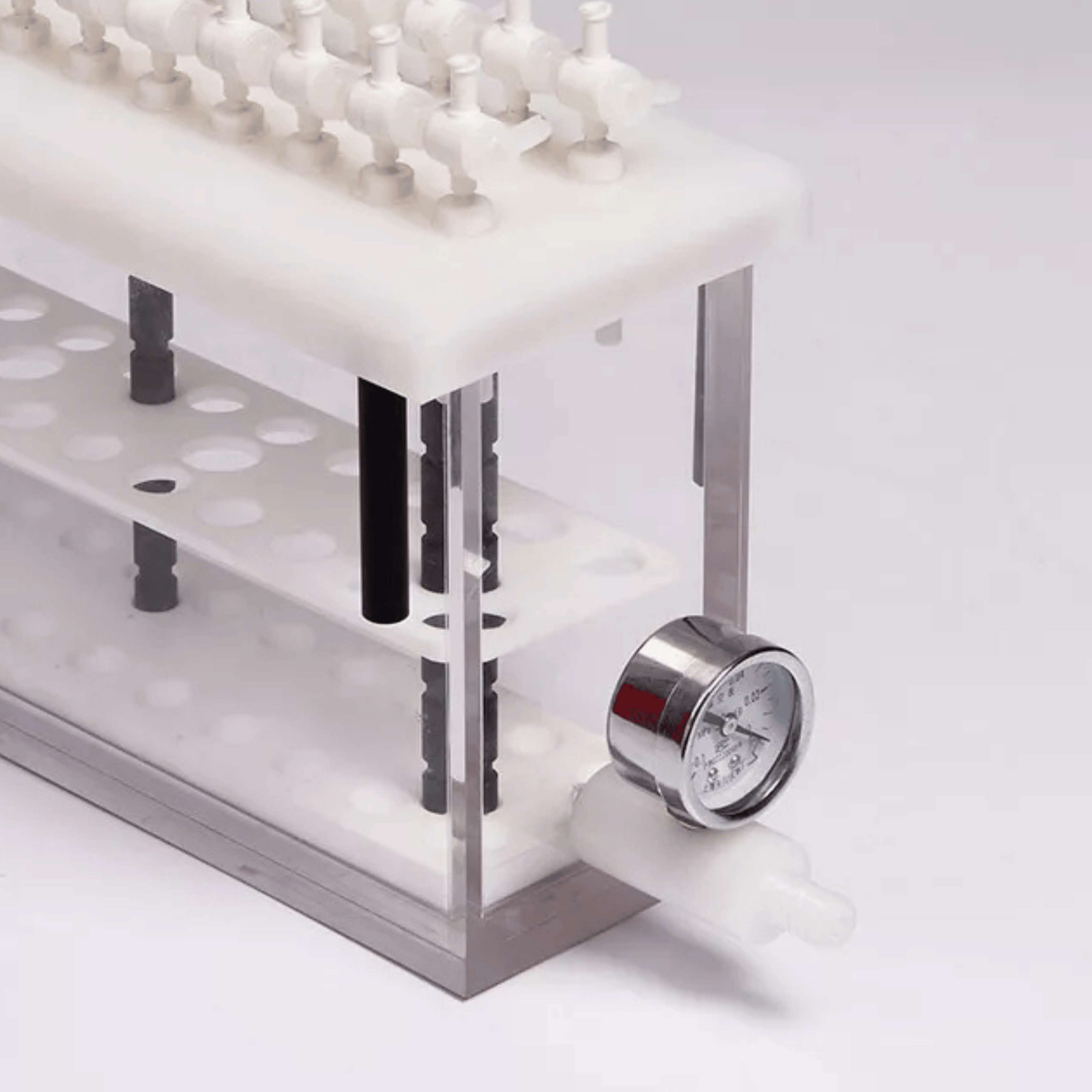

Corrosion-Resistant Construction
The entire unit, including 12, 24, and 36-well configurations, is made from transparent organic glass, offering excellent corrosion resistance for long-lasting performance.
Durable Vacuum Tank
The vacuum tank wall thickness is uniform, enabling it to withstand high negative pressures of up to -0.096 Mpa without deformation, even under prolonged high-pressure use.
Consistent Pressure and Stability
Designed to maintain uniform pressure distribution across the unit, ensuring good airtightness and strong stability for reliable operation.
Efficient and Adjustable Extraction Speed
The extraction speed remains consistent, with easy-to-use controls and convenient adjustability for optimizing results.

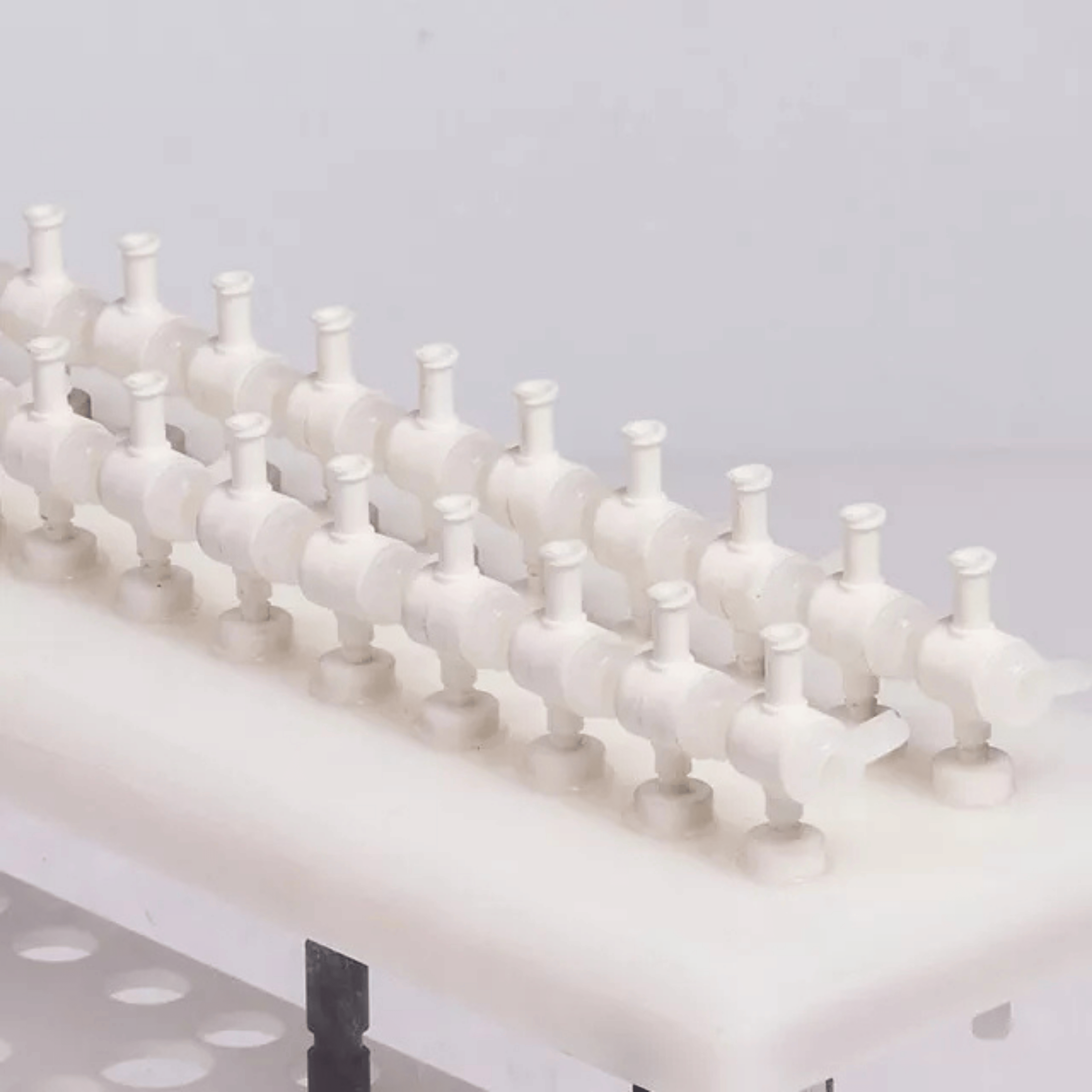

Independent Multi-Channel Control
Each channel can be controlled independently, and the connections are made with corrosion-resistant materials for enhanced durability.
High Corrosion Resistance of Internal Components
The internal test tube rack is made from polytetrafluoroethylene (PTFE), ensuring high corrosion resistance, making it suitable for various chemical applications.
Technical Parameters
| Model | SX25-SPE-12 | SX25-SPE-24 | SX25-SPE-36 |
|---|---|---|---|
| Capacity | 12 wells | 24 wells | 36 wells |
| Gas Control Mode | Independent control | Independent control | Independent control |
| Working Zone Size (mm) | 210 x 100 x 138 | 210 x 120 x 138 | 210 x 140 x 138 |
| Pressure Display | Pressure gauge | Pressure gauge | Pressure gauge |
| Vacuum Value | 0.098 Mpa | 0.098 Mpa | 0.098 Mpa |
| Flow Control Valve | 12 | 24 | 36 |
| Package Size (mm) | 460 x 200 x 290 | 460 x 200 x 290 | 460 x 200 x 290 |
| Gross Weight (kg) | 3.6 | 3.8 | 4 |
