Features:
-

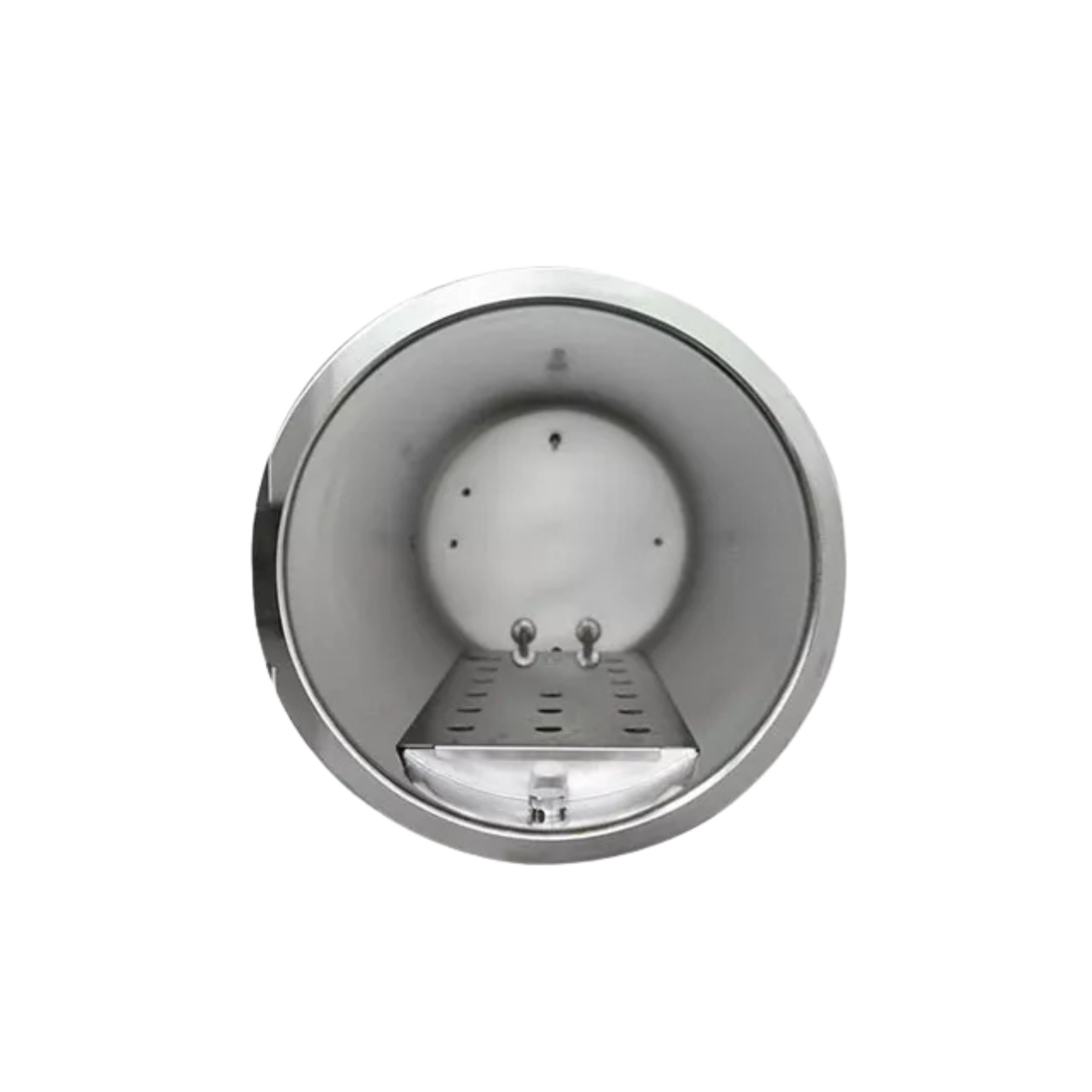

High-quality material – The sterilization chamber is made of S30408 high-quality stainless steel with electropolished finish for durability and hygiene.
-
Steam generation method – The main body is self-heating, requiring no external steam source.
-

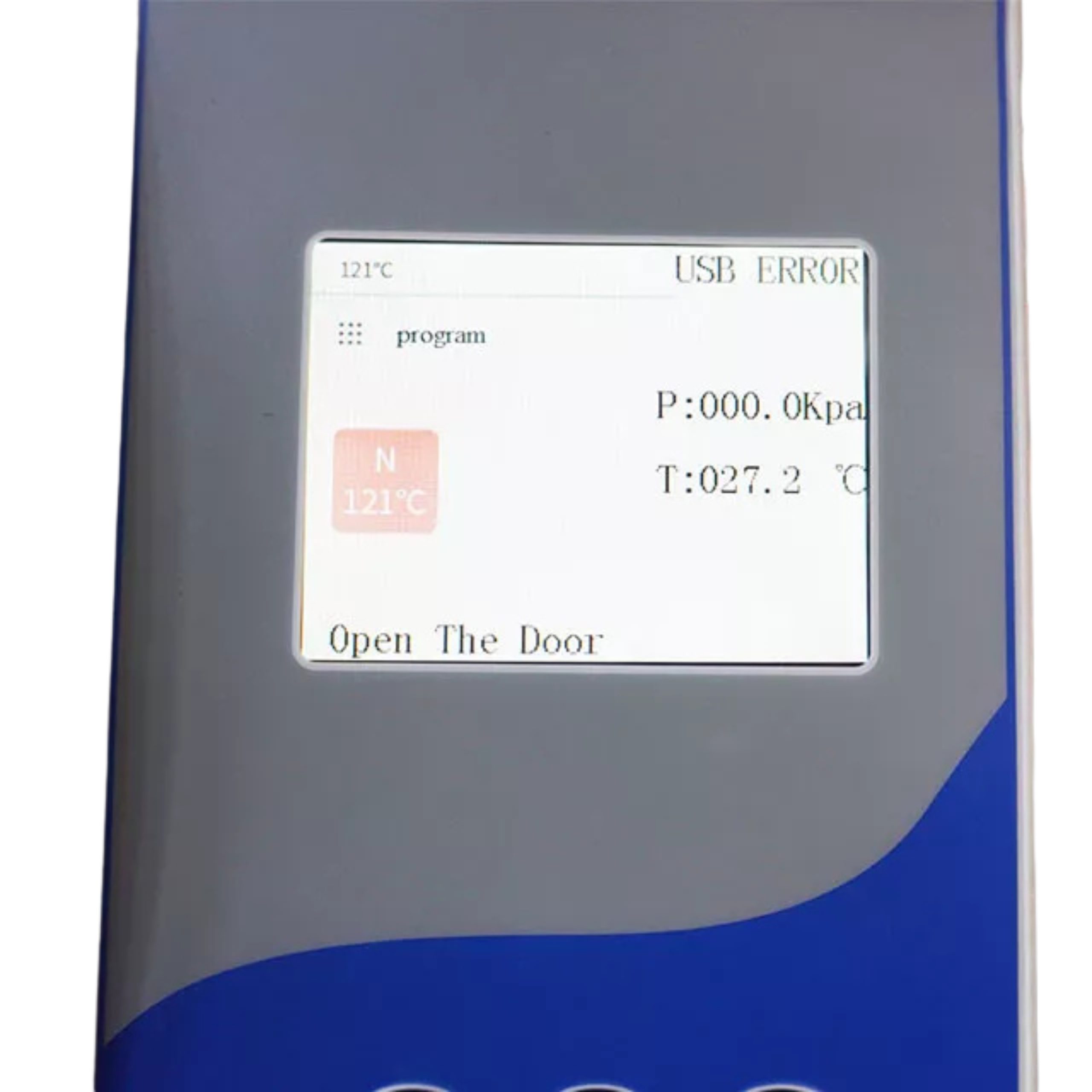

Operation interface – Features a 3.5-inch capacitive color display showing real-time pressure, temperature, time, and alarm codes. A buzzer sounds at the end of the sterilization cycle.
-
Sterilization record – Includes a standard USB interface and optional printer for recording program data.
-

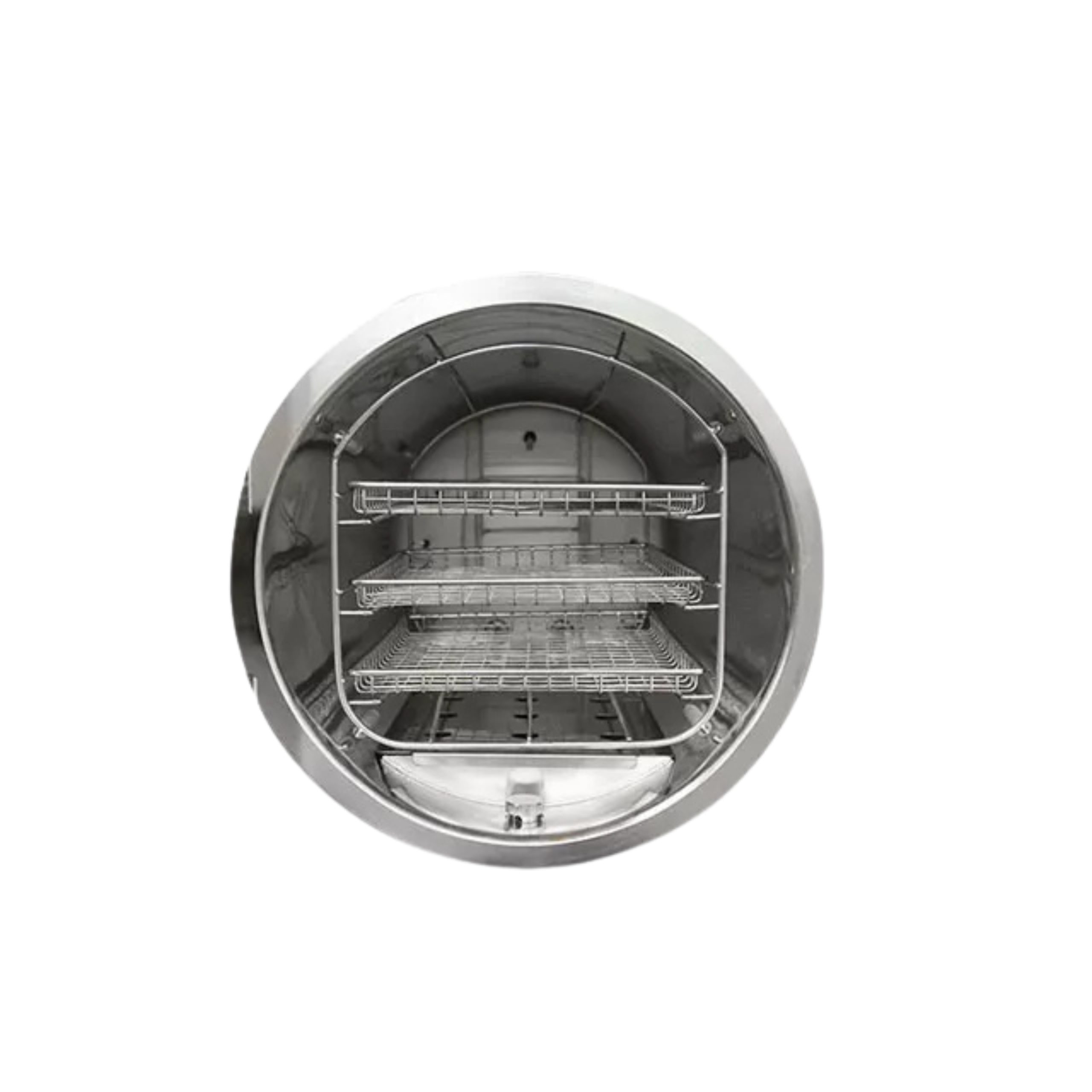

New storage rack – Optimizes the utilization of sterilization chamber space, providing greater flexibility for load selection.
-
Control system – Managed by a single-chip microcomputer for automatic control of heating, sterilization, and exhaust, minimizing manual intervention.
-
One-key start – Simple mechanical button operation with durability of over 100,000 uses.
-
Sterilization programs – Offers two selectable sterilization procedures at 121°C and 134°C.
Here is your Safety Protection and Technical Parameters section, clearly formatted in a professional layout for both models: BKM-K18N and BKM-K23N.
Safety Protection:
- Over-temperature automatic protection
- Heating tube anti-dry protection
- Safety interlock device
- Double over-voltage protection
- Over-current and leakage safety protection
- Door detection protection
Specification:
| Specification | BKM-K18N | BKM-K23N |
|---|---|---|
| Capacity | 18 L | 23 L |
| Door | Manual | Manual |
| Display | 3.5-inch LCD | 3.5-inch LCD |
| Max Designed Pressure | 0.28 MPa | 0.28 MPa |
| Working Pressure | 0.23 MPa | 0.23 MPa |
| Max Designed Temperature | 150℃ | 150℃ |
| Working Temperature | 121℃ / 134℃ | 121℃ / 134℃ |
| Temperature Precision | 0.1℃ | 0.1℃ |
| Chamber Material | S30408 Stainless Steel | S30408 Stainless Steel |
| Chamber Size (φ × L) | φ250 × 350 mm | φ250 × 450 mm |
| Power Supply | AC220V, 50/60Hz (Standard) AC110V, 50/60Hz (Optional) Wiring Method: Plug | Same as BKM-K18N |
| Power Consumption | 1.6 kW | 1.6 kW |
| Altitude | ≤2500 m | ≤2500 m |
| Rack | 1 rack with 3 trays | 1 rack with 3 trays |
| Standard Accessories | Aluminum tray, USB port | Aluminum tray, USB port |
| Optional Accessories | Stainless steel tray, Printer | Stainless steel tray, Printer |
| External Size (W × D × H) | 650 × 495 × 410 mm | 700 × 495 × 410 mm |
| Package Size (W × D × H) | 810 × 610 × 590 mm | 810 × 610 × 590 mm |
| Net Weight | 32 kg | 36 kg |
| Gross Weight | 47 kg | 50 kg |
