Vertical Autoclave SX25-VA-50L, SX25-VA-75L

Features:

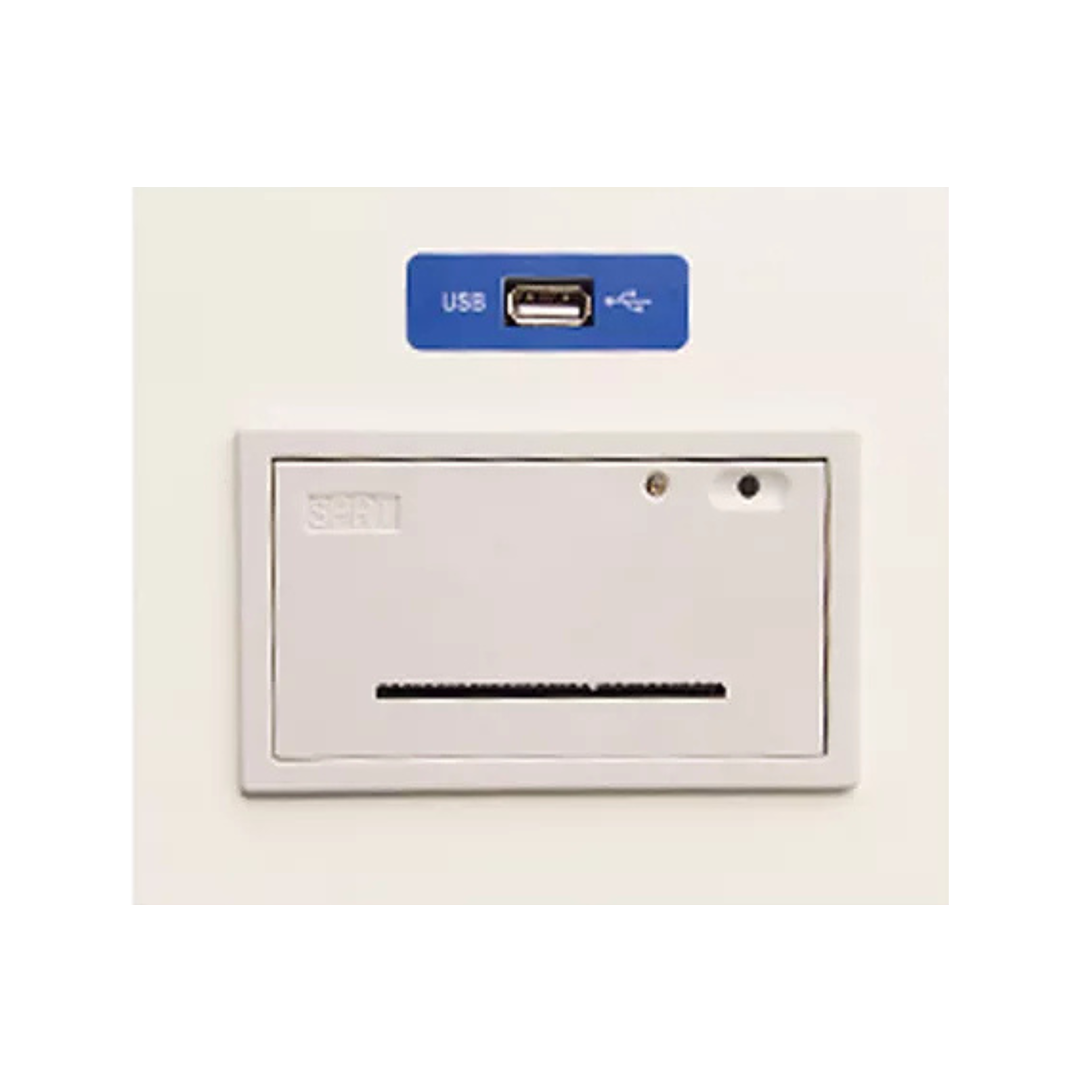

1. Standard built-in printer for easy documentation.

2. Deionized water interface for supplying the steam generator.

3. Rapid water cooling system for efficient and safe sterilization of liquids.

4. Quick maintenance window for electrical parts, no need to remove the cover.

5. Microcomputer control with fully automatic management of water injection, temperature rise, sterilization, and exhaust processes.

6. LCD screen display shows real-time pressure, temperature, time, operating status, and error codes.

7. Mobile probe to monitor and ensure the internal temperature of liquid, ensuring effective sterilization.

8. Optional air compressor for added functionality.

Technical Parameters:

Model	SX25-VA-50L	SX25-VA-75L
Capacity	50L	75L
Designed Pressure	0.28MPa	0.28MPa
Working Pressure	0.23MPa	0.23MPa
Designed Temp.	150°C	150°C
Working Temp.	105°C~136°C	105°C~136°C
Temp. Display Accuracy	0.1°C	0.1°C
Chamber Material	S30408	S30408
Chamber Size	φ386*490mm	φ386*670mm

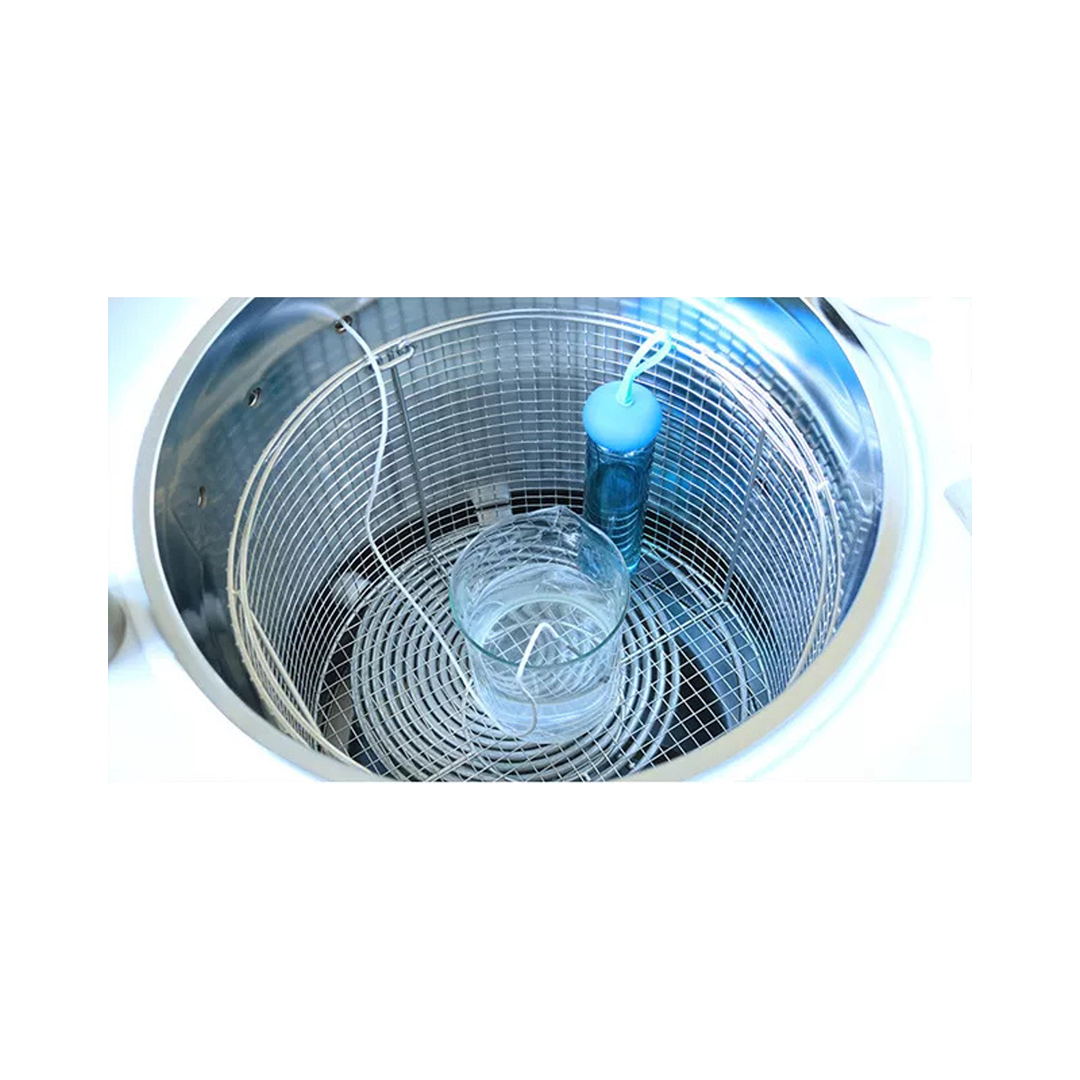

Basket	φ365*265, 1pc	φ365*360, 1pc
Noise	≤65dB	≤65dB
Power Consumption	5.5KW	5.5KW
Power Supply	Standard: 220V, 50Hz or 220V, 60HzOptional: 110V, 50Hz or 110V, 60Hz	Standard: 220V, 50Hz or 220V, 60HzOptional: 110V, 50Hz or 110V, 60Hz
Altitude	≤2700m (Please specify if between 1000~2700 meters when ordering)	≤2700m (Please specify if between 1000~2700 meters when ordering)
Standard Accessories	Printer, basket	Printer, basket
Optional Accessories	Air compressor	Air compressor
External Size (WDH)	7006101110mm	7006101110mm
Package Size (WDH)	8207401380mm	8207401380mm
Net Weight	127kg	132kg
Gross Weight	140kg	147kg
