Model No: SX25-CAA200
Features:
-
37 sample positions
-
28 reagent positions
-
48 reaction cuvettes
-
200 tests per hour
-

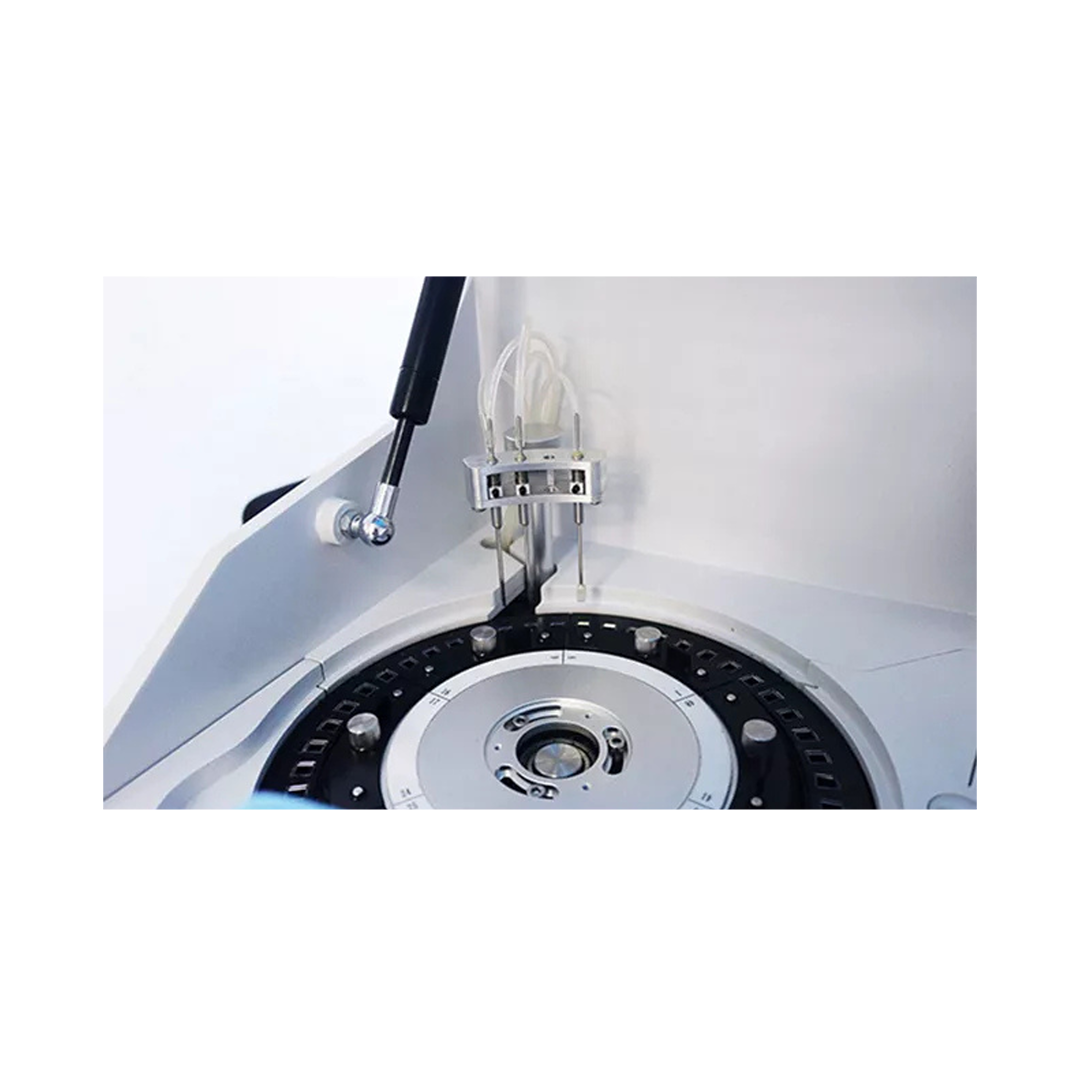

Probe with anti-collision function, liquid level detection function
Technical Parameters:
| Specification | Details |
|---|---|
| Model | SX25-CAA200 |
| Overall Performance | |
| Throughput | 200 tests/hour |
| Analysis Method | End-point, Fixed-time, Rate (Kinetic), Turbidimetry |
| Certificates | CE, FDA, ISO9001, ISO13485 |
| Sample & Reagent System | |

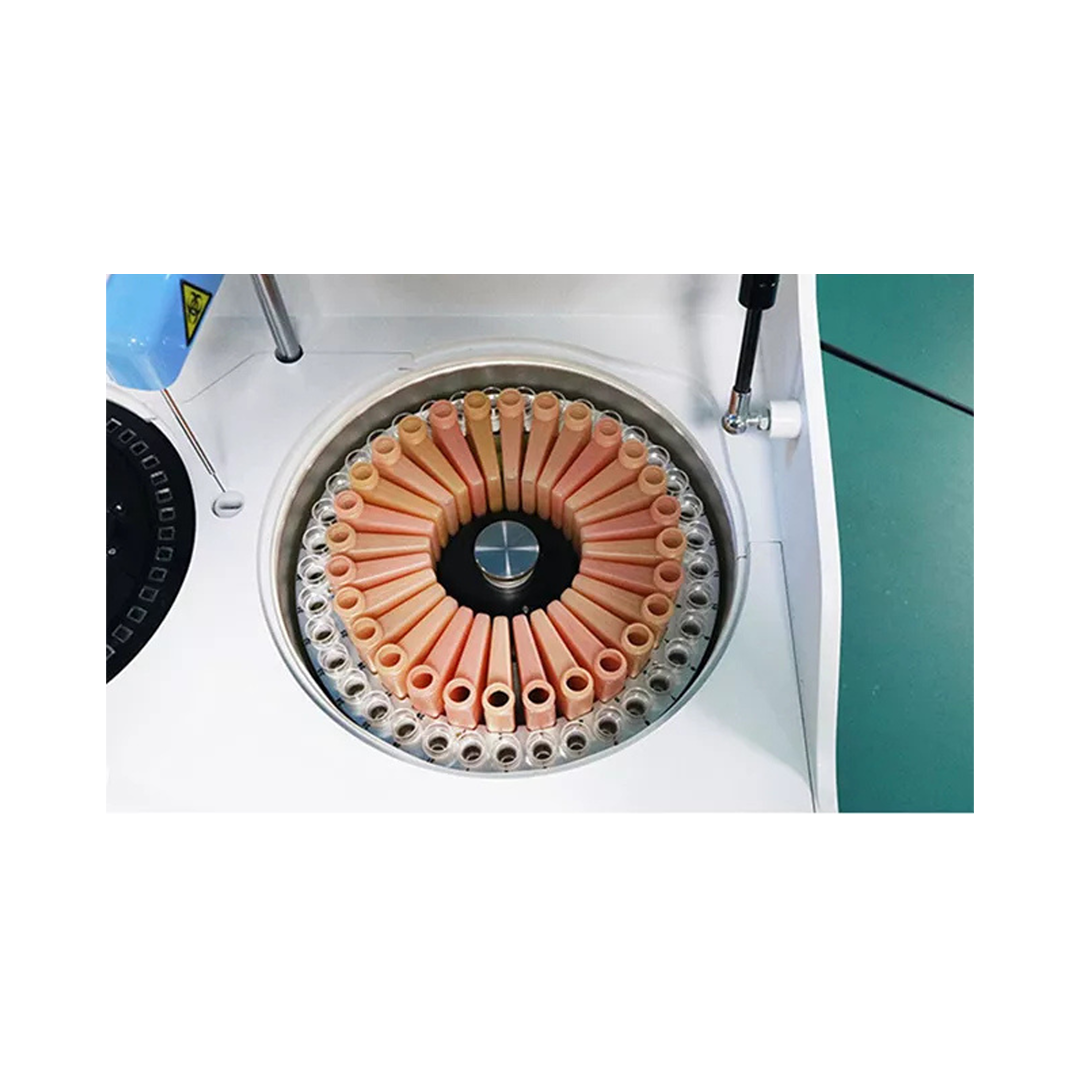

| Sample Positions | 37 sample positions |
| Reagent Positions | 28 reagent positions |
| Sample Volume | 2~70µl |
| Reagent Volume | 20~350µl |
| Probe | Teflon coating, with anti-collision function, liquid level detection function |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Reaction System | |
| Temperature Control | 37±0.2℃ |
| Cuvettes | 48 reusable cuvettes, optical length 6mm |

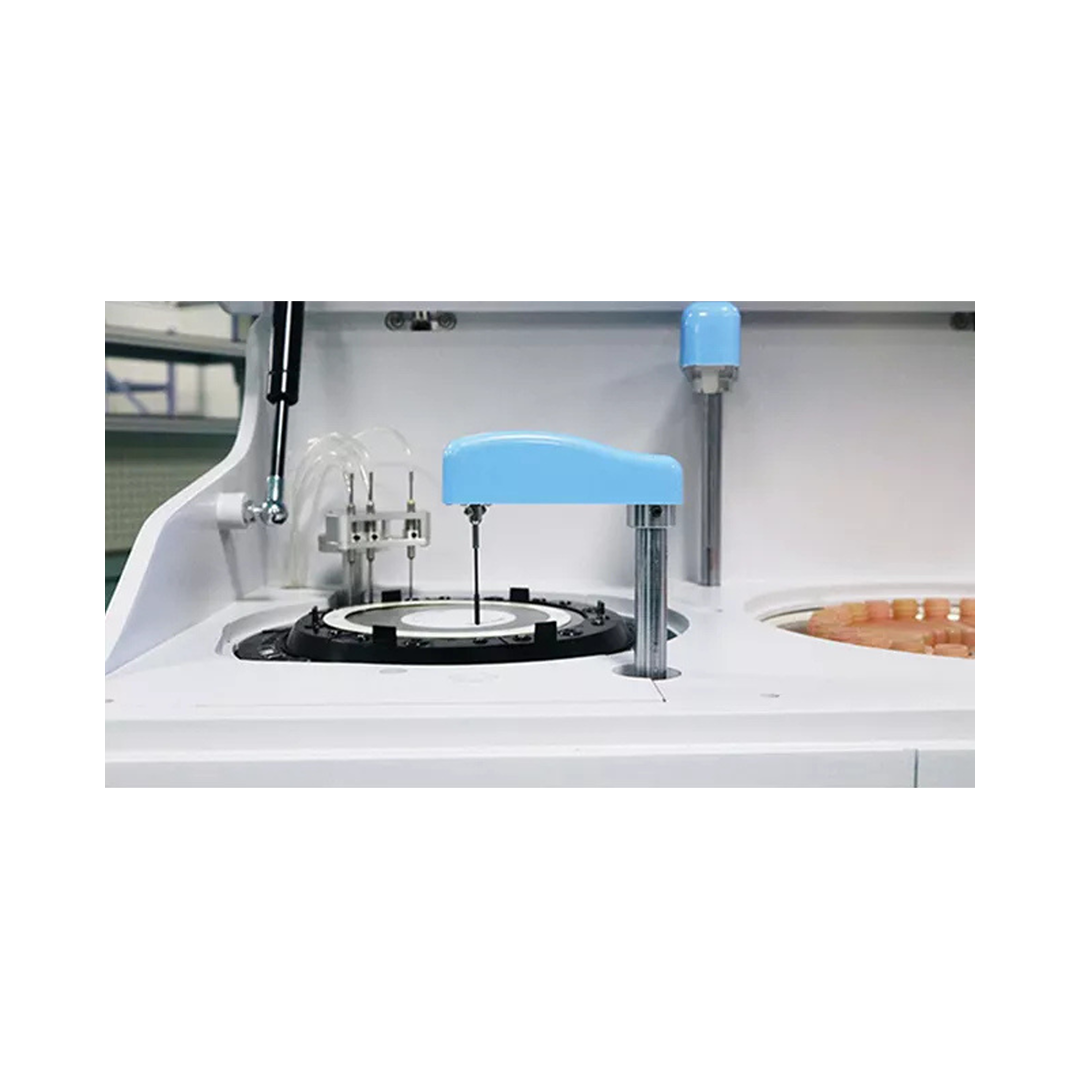

| Mixer Probe | Independent stirring |
| Washing | Automatic cuvettes washing |
| STAT Function | Yes |
| Optical System | |
| Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Wavelength | 340, 405, 450, 510, 546, 578, 630, 700nm |
| Absorbance | 0~3.0Abs |
| Calibration & QC | |
| Calibration | Linear: K factor, 1-point, 2-point, and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi-rule, Cumulative Sum Check, Twin Plot (2D), Daily QC, Monthly QC |
| Data Management | |
| Software | Windows 7/8/10, 32 or 64 bit |
| LIS System | Bi-directional, supports HL7 protocol |

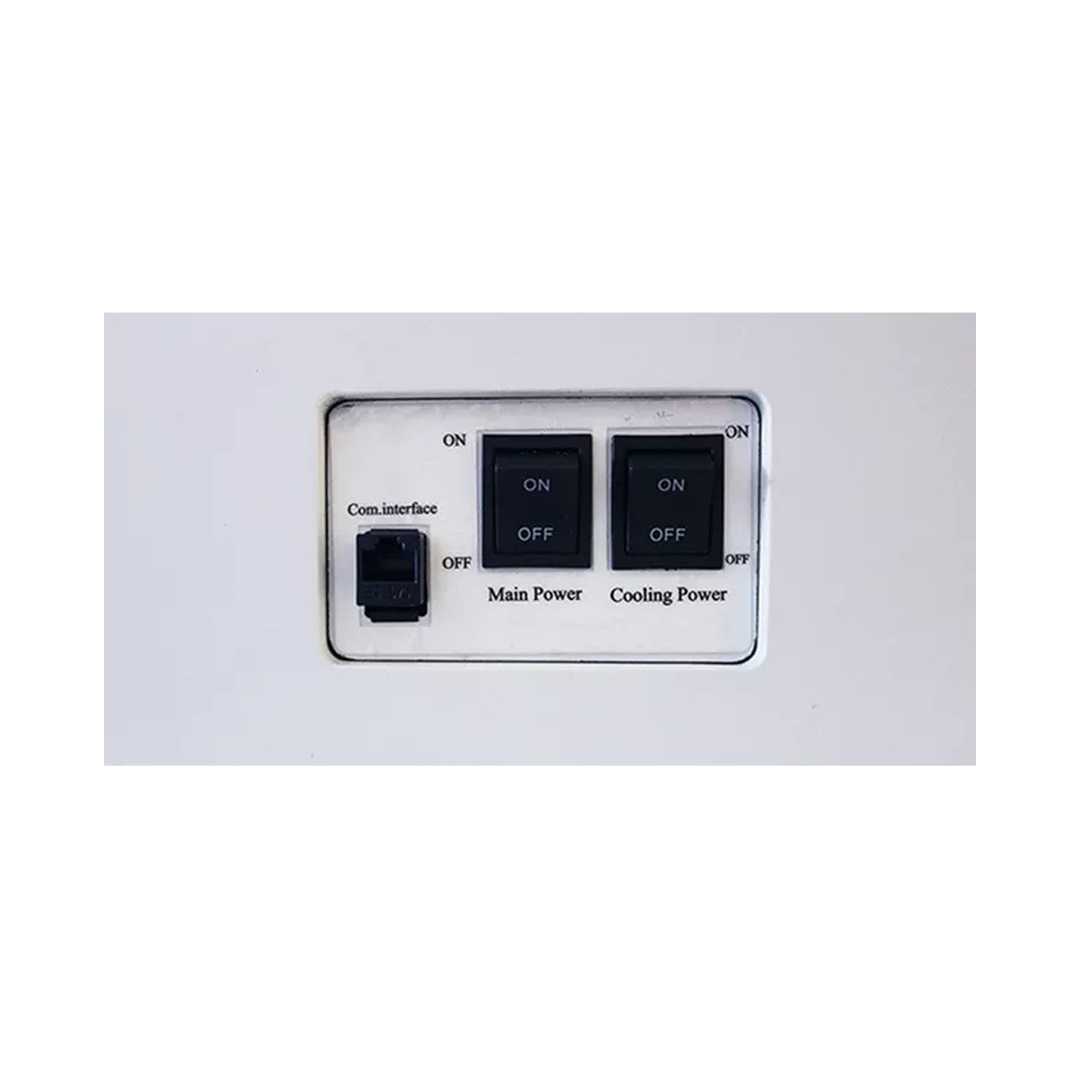

| Interface | LAN port access |
| Printer | External optional, multiple reporting modes available |
| Working Conditions | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W |
| Temperature | 15~30℃ |
| Water Consumption | Deionized water: <5L/H |
| Humidity | 40%~85% |
| Size & Weight | |
| External Size (WDH) | 625425460mm |
| Net Weight | 36kg |
| Package Size (WDH) | 750560900mm |
| Gross Weight | 55kg |
