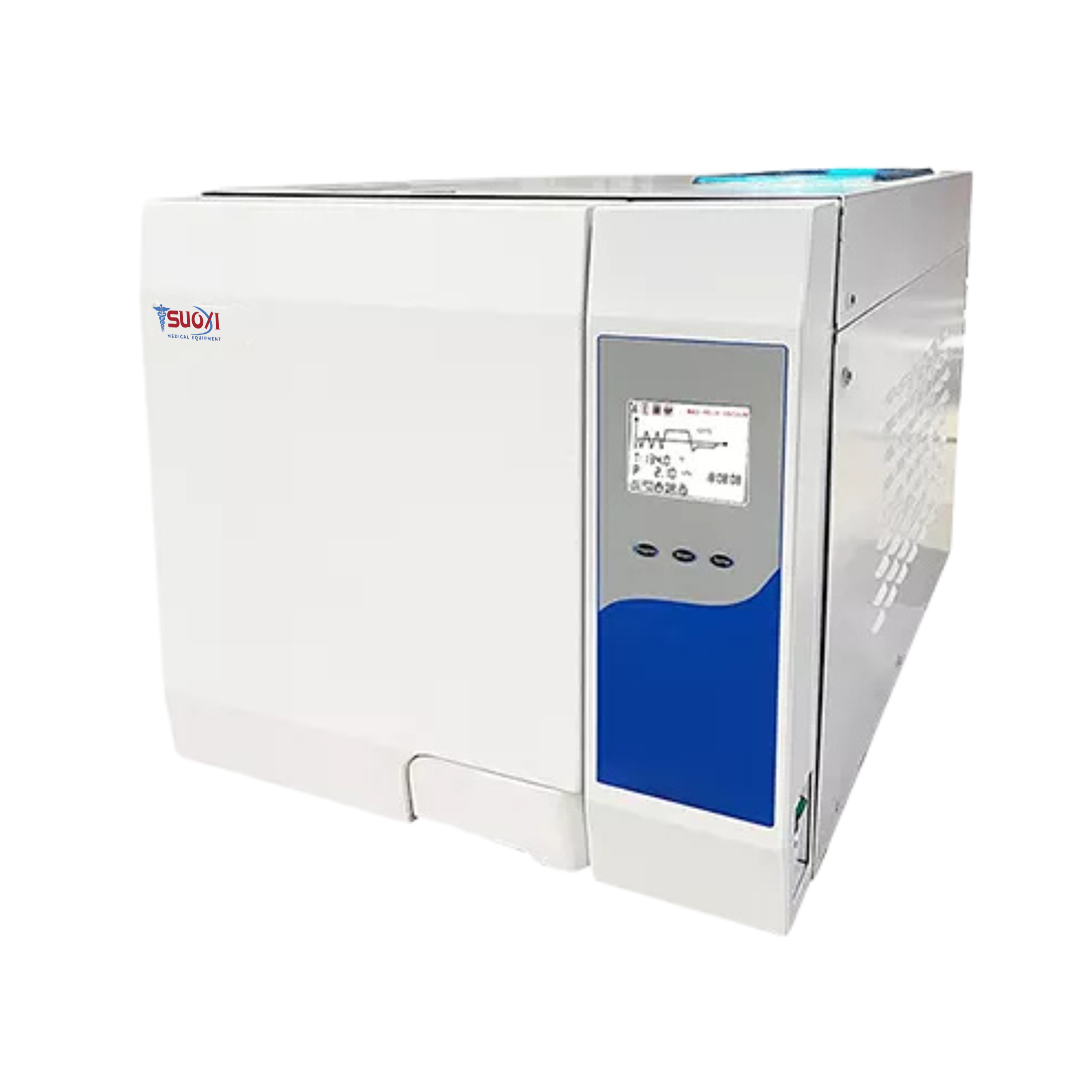

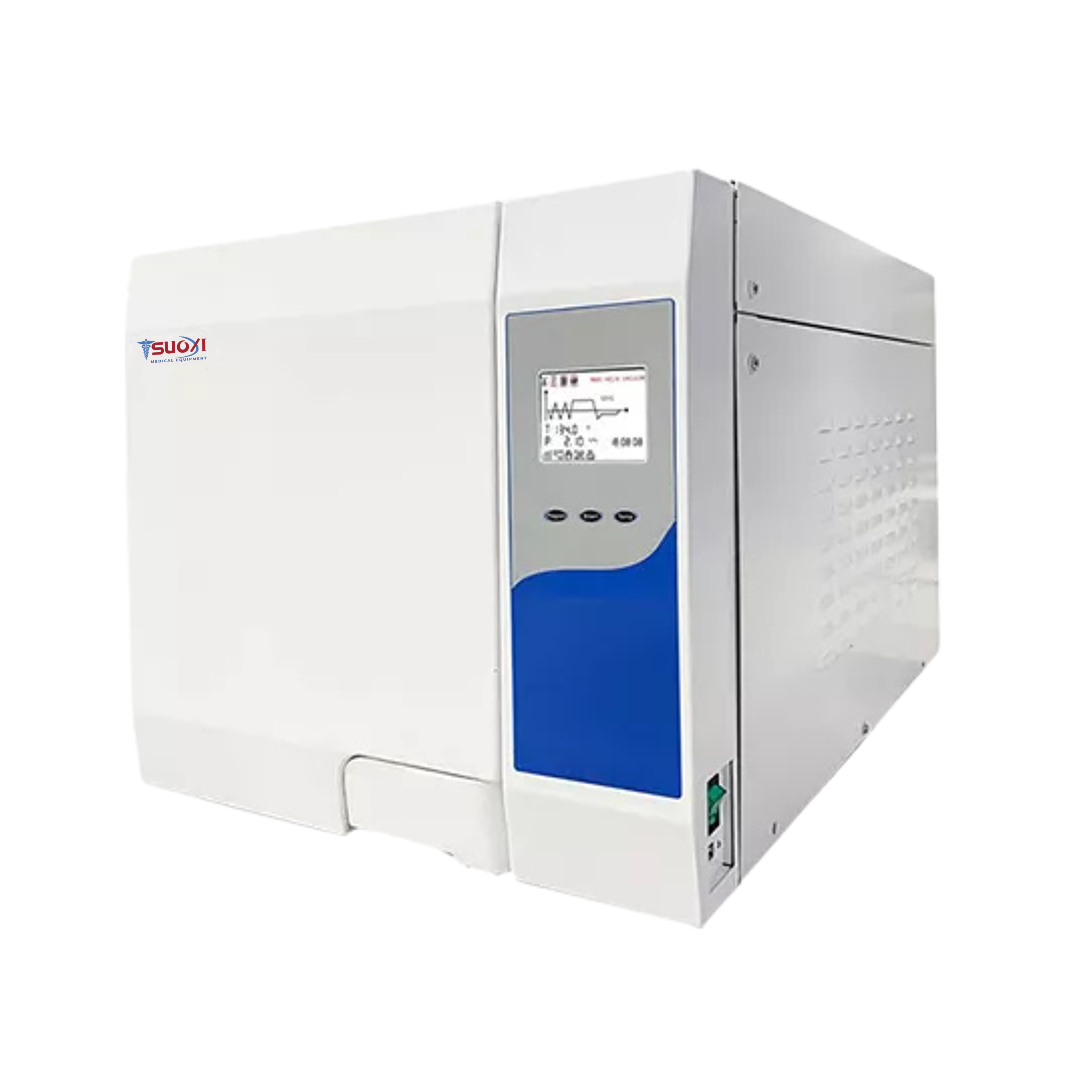

Model No: SX25-CBA-18L(S), SX25-CBA-23L(S)
Features:
- High-Quality Sterilization Chamber
The sterilization chamber is made from high-quality S30408 stainless steel with electrolytic polishing, ensuring it resists corrosion and rust. The chamber's walls are equipped with a covered silicone heating film to ensure uniform heating. - LCD Operation Interface
The 3.5-inch LCD screen displays the operation curve in real time, along with critical information such as pressure, temperature, time, and alarm codes, offering users an easy way to monitor the sterilization process. - Dual Water Tank Configuration
The device features a built-in dual water tank system, separating clean water from sewage. It does not require an external water source, and the open clean water tank simplifies daily cleaning. One water filling can support multiple operations, with high and low liquid level indicators for ease of use. - High-Efficiency Filter
Equipped with a 0.22μm high-efficiency air filter, this system isolates impurities in the air, preventing re-contamination of sterilized items. - Internal Configuration
The system includes a three-layer sterilization storage rack with three sterilization trays and one tray clip for organizing sterilized items. - Diversified Programs
The system offers a variety of programs for different sterilization needs, including:- Solid exposed instruments (121°C / 134°C)
- Packaged instruments (121°C / 134°C)
- Rubber items (121°C / 134°C)
- Fabric items (121°C / 134°C)
- Enhanced sterilization (134°C)
- B&D test programs
- HELIX test programs
- Vacuum test programs
Users can select the appropriate program and temperature depending on the items being sterilized.
Parameter | SX25-CBA-18L(S) | SX25-CBA-23L(S) |
---|---|---|
Capacity | 18L | 23L |
Door | Manual | Manual |
Display | 3.5-inch LCD | 3.5-inch LCD |
Designed Pressure | -0.1/0.3MPa | -0.1/0.3MPa |
Working Temp. | 121/134℃ | 121/134℃ |
Temp. Precision | 0.1℃ | 0.1℃ |
Sterilization Time | 0~60min | 0~60min |
Drying Time | 0~20min | 0~20min |
Water Tank Capacity | 3.5L | 3.5L |
Vacuum System | High-efficiency vacuum pump | High-efficiency vacuum pump |
Chamber Material | S30408 | S30408 |
Chamber Size | φ250*350 | φ250*450 |
Ambient Temp. | 5~40℃ | 5~40℃ |
Consumption | 3KW | 3KW |
Power Supply | AC220V±10%, 50/60Hz±1% (Standard) | AC220V±10%, 50/60Hz±1% (Standard) |
AC110V±10%, 50/60Hz±1% (Optional) | AC110V±10%, 50/60Hz±1% (Optional) | |
Altitude | ≤2700m | ≤2700m |
Rack | 1 rack with 3 trays | 1 rack with 3 trays |
Standard Accessories | Aluminum tray, USB port | Aluminum tray, USB port |
Optional Accessories | Stainless steel tray, printer | Stainless steel tray, printer |
External Size (WDH) mm | 630450455 | 680450455 |
Package Size (WDH) mm | 810610590 | 810610590 |
Net Weight (kg) | 46±3 | 48±3 |
