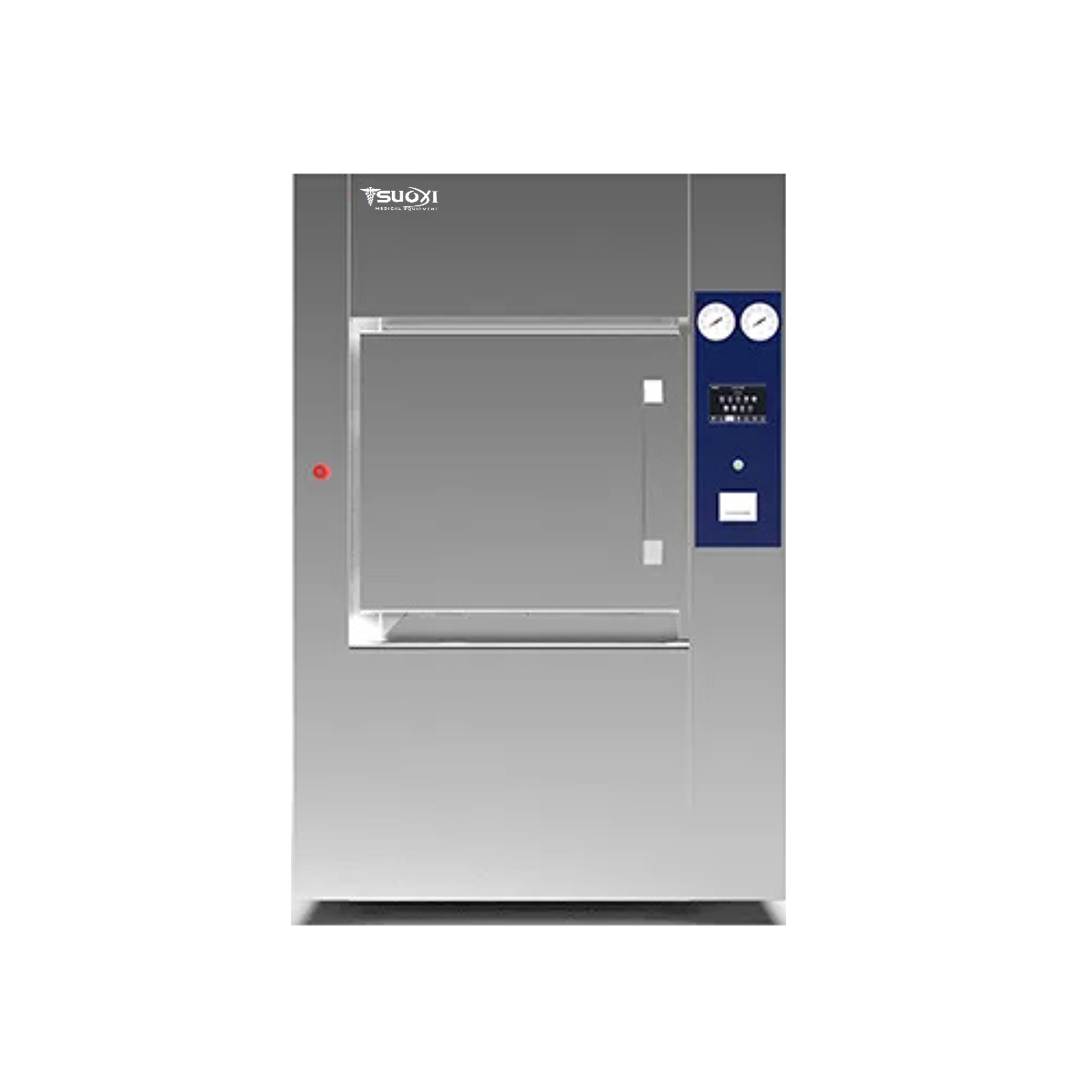

Model No: SX25-LHA-450L, SX25-LHA-650L
Features:
Motorized Double-Door: Equipped with an inflatable sealing ring for more reliable and stable sealing performance.
Sterilization Data Output: Includes a standard thermal printer for convenient storage and recording of sterilization data.
Reinforced Structure: The main structure uses a rectangular annular reinforcing rib design, which ensures low residual stress and strong bearing capacity under pulsating alternating pressure and temperature loads, resulting in a longer container life.
Advanced Operation Interface: A programmable controller (PLC) and a 7.0-inch color touch screen automatically control the entire process. It simultaneously displays jacket pressure, inner chamber temperature, inner chamber pressure, operating status, fault alarms, and other relevant information.
Intelligent Drying System: The system ensures that residual humidity after drying does not exceed 0.2%, with the residual humidity of dressing not exceeding 1%.
High-Efficiency Air Filter: The sterilizing high-efficiency air filter ensures sterile air in the chamber, preventing re-contamination.
Automatic Water Supply: The equipment is connected to an external water source for automatic water replenishment. After the user selects the program, the entire process from water injection to drying is completed automatically, with a voice prompt signaling the completion of sterilization.
Independent Steam Inlet: The inner chamber has a separate steam inlet, ensuring the steam does not pass through the jacket, which prevents contamination from the carbon steel of the jacket and ensures effective drying.
Safety Interlock System: A double-door channel type with a pressure, mechanical, and electronic 3-layer safety interlocking device, featuring over-temperature protection and over-pressure protection to eliminate potential safety hazards.

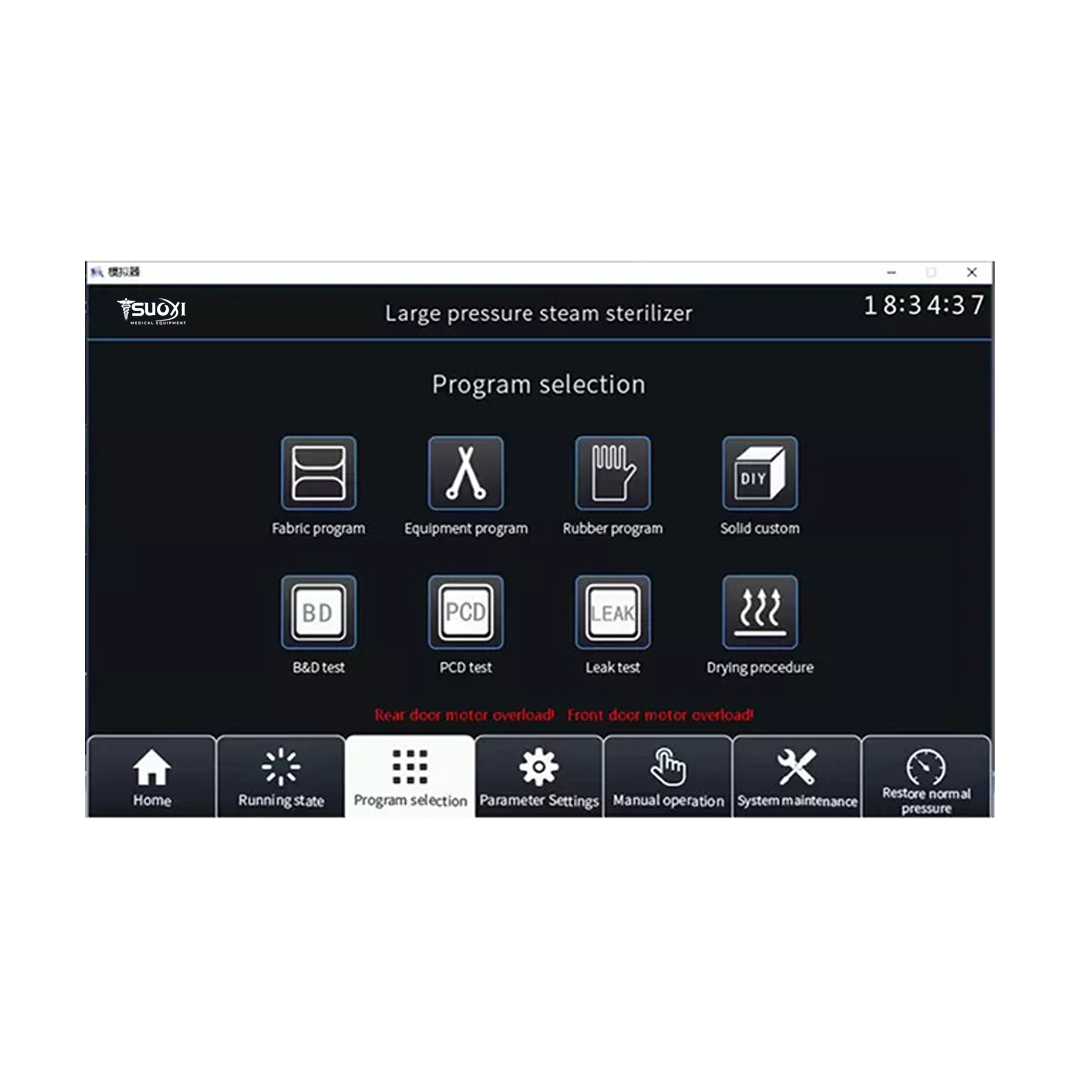

Multiple Programs: Includes fabric, instrument, rubber, solid DIY, and enhanced programs, as well as auxiliary drying and water-adding programs. BD, leak test, PCD test programs, and optional liquid programs are also available.
304 Stainless Steel Shell: The shell is made of durable, easy-to-clean 304 stainless steel.
Technical Parameters:
| Model | SX25-LHA-450L | SX25-LHA-650L |
|---|---|---|
| Capacity | 450L | 650L |
| Door | Automatic | Automatic |
| Display | 7-inch LCD touch screen | 7-inch LCD touch screen |
| Designed Pressure | Inner chamber: -0.1/0.3MPa Jacket: 0.3MPa | Inner chamber: -0.1/0.3MPa Jacket: 0.3MPa |
| Working Pressure | 0.25MPa | 0.25MPa |
| Designed Temp. | 150℃ | 150℃ |
| Max Working Temp. | 134℃ | 134℃ |
| Temp. Control Precision | ±0.2℃ | ±0.2℃ |
| Built-In Steam Generator | 0.8MPa | 0.8MPa |
| Sterilization Time | 0~9999s | 0~9999s |
| Drying Time | 0~9999s | 0~9999s |
| Vacuum system | Water circulating vacuum pump | Water circulating vacuum pump |
| Chamber Material | S30408 | S30408 |
| Chamber Size(mm) | 6726721000 | 6726721500 |
| Power Supply | Standard: AC380V, 50Hz Optional: AC380V, 60Hz Wiring Method: Air switch | Standard: AC380V, 50Hz Optional: AC380V, 60Hz Wiring Method: Air switch |
| Consumption | 35kVA | 56kVA |
| Altitude | ≤2000m | ≤2000m |
| Could be customized @2000~2700m | Yes | Yes |

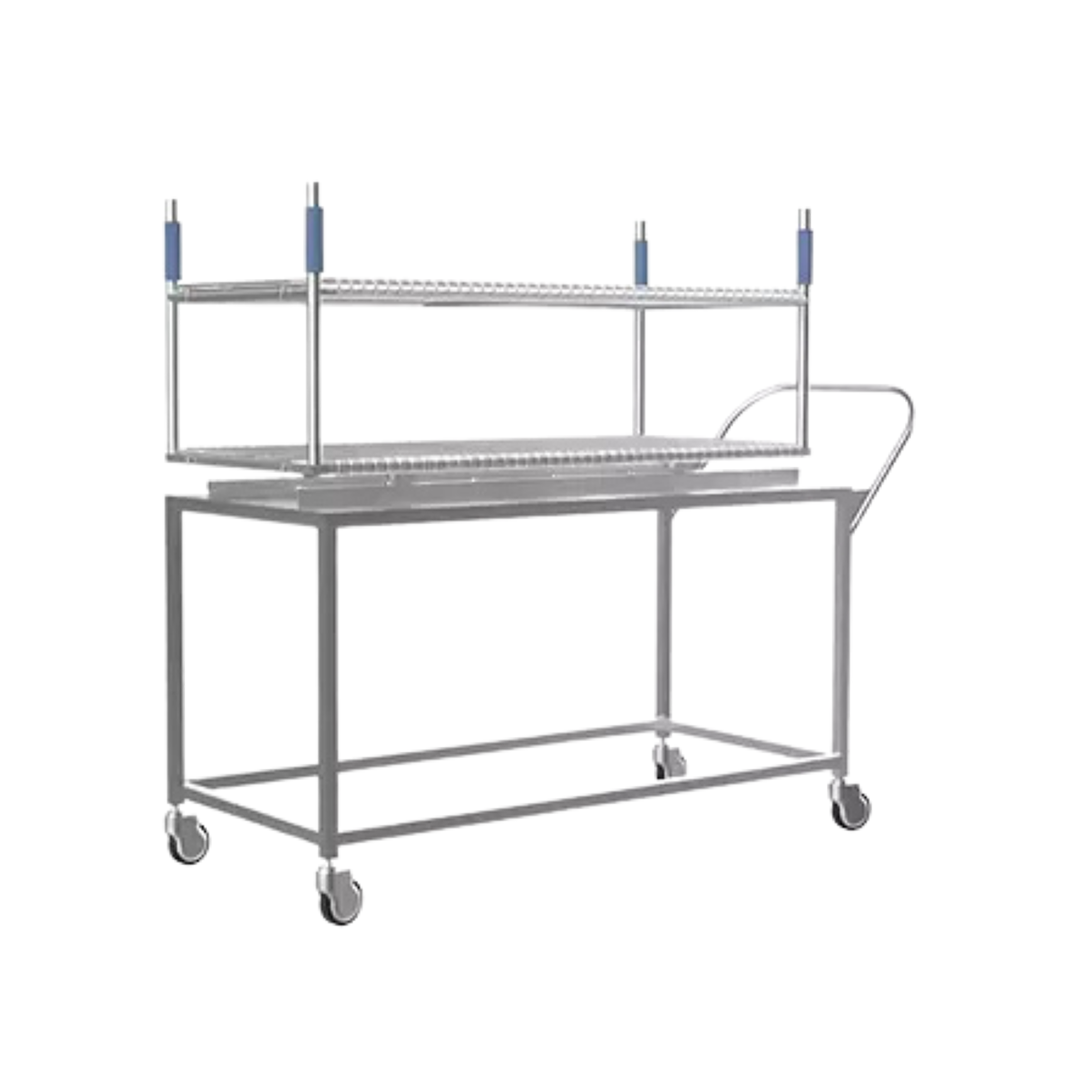

| Trolley | 2 external sterilization trolleys, 1 internal sterilization trolley | 2 external sterilization trolleys, 1 internal sterilization trolley |
| Standard Accessories | Trolleys, printer | Trolleys, printer |

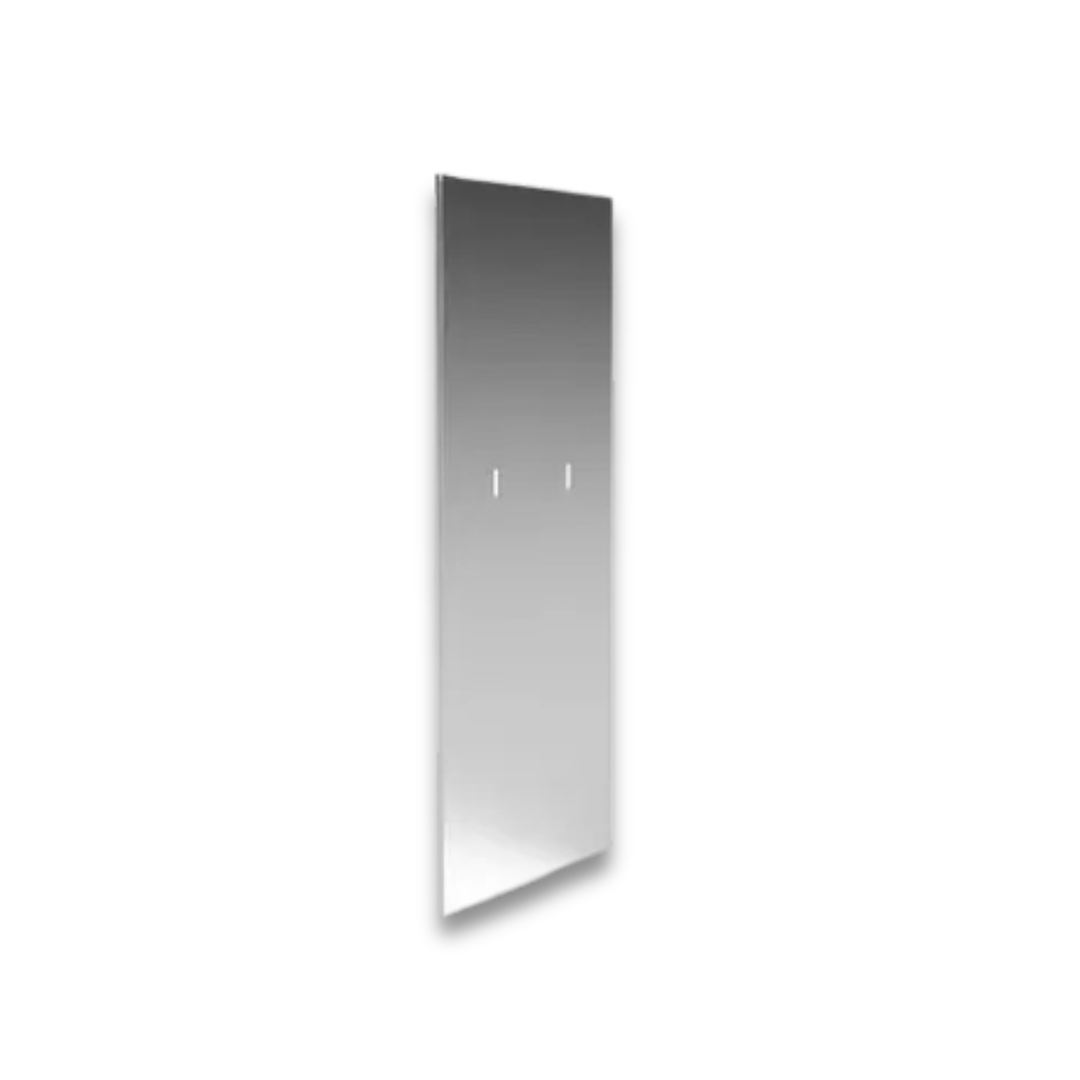

| Optional Accessories | Sheet metal side cover, air compressor, liquid program | Sheet metal side cover, air compressor, liquid program |
| External Size(WDH)mm | 131412602050 | 131417602050 |
| Package Size(WDH)mm | Main instrument: 142415002360 Trolleys: 15506301900 | Main instrument: 142420002295 Trolleys: 20506301900 |
| Net Weight(kg) | 1035 | 1200 |
| Gross Weight(kg) | Main instrument: 1220 Trolleys: 150 | Main instrument: 1440 Trolleys: 170 |
