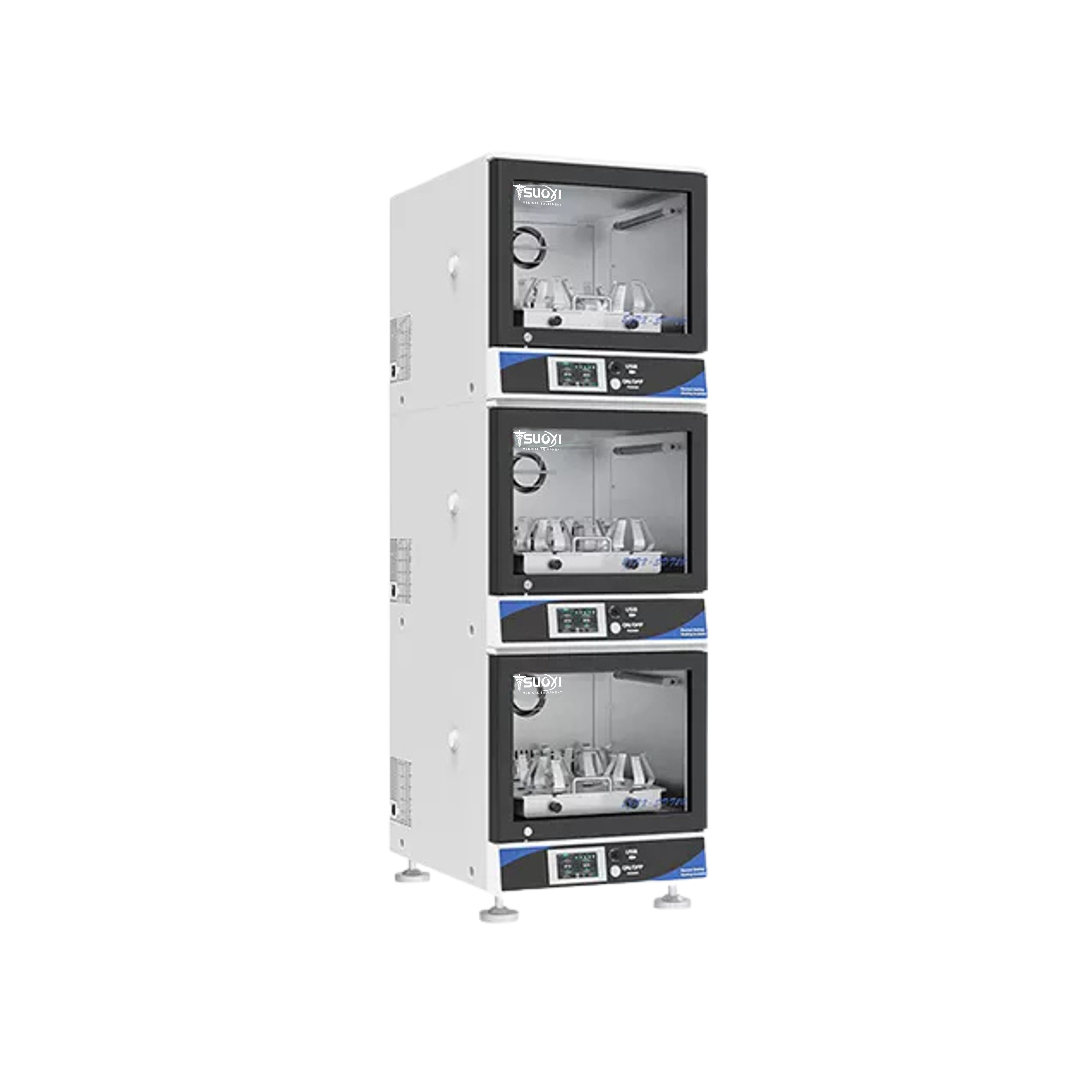

Model No: SX25-SLSI10, SX25-SLSI20
Features:
1. Brushless DC motor, low noise, lasting operation.
2. 5" touch screen, clear and intuitive interface.
3. Run parameter encryption lock, parameter memory function.
4. With power failure recovery function.
5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.
6. With USB data export function to achieve data traceability.
7. With ultraviolet disinfection function.
8. Standard equipped with LED light, the door of the box lights automatically open.
Technical Parameters:
| Model | SX25-SLSI10 | SX25-SLSI20 |
|---|---|---|
| Capacity (L) | 80 | |
| Temp. Sensor | PT100 | |
| Temp. Range | RT+5~60℃ | 4~60℃ |
| Temp. Fluctuation | ≤±0.5℃ | |
| Temp. Uniformity | ≤±1℃ (37℃) | |
| Temp. Precision | 0.1℃ | |
| Timing Range | 0~999min | |
| Controller | PID | |
| Display | 5-inch touch screen | |
| Circulation Mode | Forced convection | |
| Shaking Mode | Rotary shaking | |
| Drive Mode | Single axis balanced drive type | |
| Vibration Range | Φ26mm | |
| Rotating Speed | 30~300r/min | |
| Rotating Accuracy | ±1r/min | |
| Shaking Plate Size | 420*400mm | |
| Shaking Plate Quantity | 1pc | |
| Max. Capacity | 250ml16 or 500ml9 or 1000ml9 or 2000ml5 (Flask clamp), Tube rack2, 96-well plate8, Clamping rod shaking plate*1 | |
| Standard Capacity | 500ml*9 | |
| Lighting Mode | LED lamp*1 | |
| Sterilization Mode | UV lamp*1 | |
| Refrigerant | / | R290 |
| Ambient Temp. | 15~35℃ | |
| Internal Material | 304 stainless steel | |
| External Material | Cold rolled steel sheet | |
| Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | |
| Consumption | 1000W | 1600W |
| Power Supply | Standard: AC200~240V, 50/60Hz | Optional: AC110V, 50/60Hz |
| Internal Size | 495455370mm (per unit) | |
| External Size | 580830600mm (per unit) | |
| Package Size | 705975865mm (per unit) | |
| Net Weight | 138kg (per unit) | 158kg (per unit) |
| Gross Weight | 168kg (per unit) | 188kg (per unit) |
