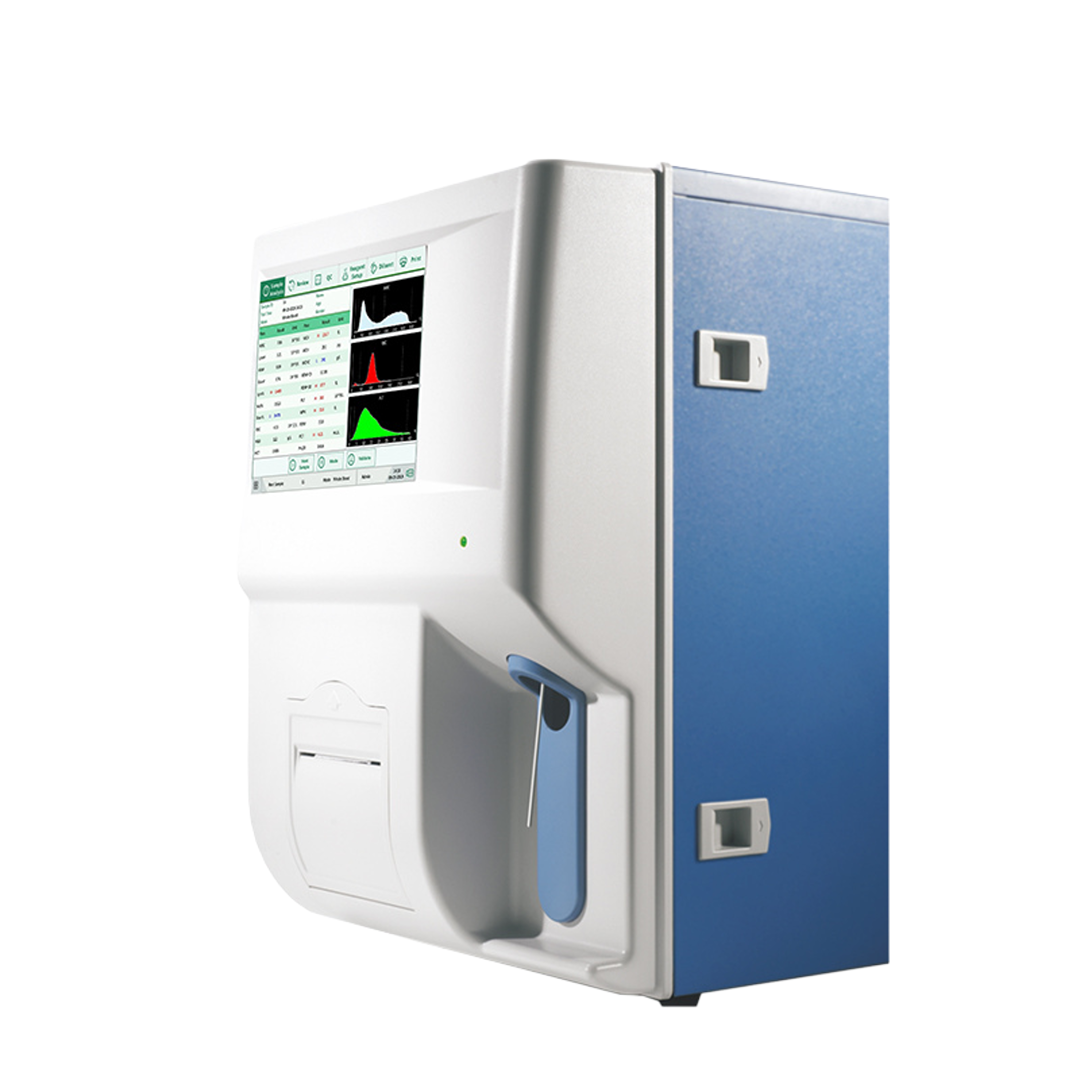

Model No: SX25-H6300T
Features:
-
Throughput 60T/H
-
8-inch touch screen
-
1 press for analysis with 20 parameters + 3 histograms
-
Sample volume: 10μL
-
2 reagents + 1 probe cleanser only
-
3 counting modes
-
10,000 sample results
-
Support LIS and external printer
| PARAMETER | SPECIFICATION |
| Principle | Impedance for cell counting and cyanide-free method for HGB |
| Test flow | 1 click to finish test automatically,10μL blood is needed |
| Parameters | 3 part differentiation of WBC,20 parameters +3 histograms |
| Report parameters | WBC,LYM%,MID%,NEUT%,LYM#,MID#,NEUT#,RBC,HGB,HCT,MCV, MCH, MCHC,RDW-SD,RDW-CV, PLT, MPV, PDW, PCT, P-LCR |
| Histograms | WBC, RBC, PLT histogram |
| Throughput | 60 test/Hour |
| Languages | English, Spanish,Portuguese, etc. |
| Calibration | Auto mode and manual mode |
| Quality control | 3 level QC, LJ graph |
| Sample volume
|
Venous mode: 10μL venous blood |
| Capillary mode: 10μL capillary blood | |
| Prediluted mode: 20μL capillary blood | |
| Display | 8-inch color LCD with touch screen |
| Resolution: 800×600 | |
| Storage | 100,000 sample results with histograms |
| Reagent | 2 reagents:Lyse(500mL) and Diluent(20L) |
| Printout | Inner thermal printer, support external printer |
| Input/Output | Keyboard,mouse,RS232 serial port |
| Power | AC 100-240V, 50/60±1Hz |
| Dimension | 410mm×435mm×472mm |
| Reference range type | Newborn, children,male,female and general |
Performance
| Parameters | Precision (CV) |
| WBC | ≤ 2.0% (7.0 -15.0×109)/L |
| RBC | ≤ 1.9% (3.5 – 6.0×1012)/L |
| HGB | ≤ 1.9% (110.0 – 180.0g)/L |
| MCV | ≤ 0.4% (80.0 – 110.0) fL |
| PLT | ≤ 4.0% (100.0 – 500.0×109)/L |
| Parameters | Measurement Range |
| WBC | (0-99.9×109)/L |
| RBC | (0-9.99×1012)/L |
| HGB | (0-300.0)g/L |
| PLT | (0-999×109)/L |
